Products :: Blowers :: Roots Universal RAI (URAI) :: Universal RAI® DSL Blowers
Flow Range: 40 CFM to 1641 CFM
Pressure Range: 1 psi to 15 psi
Vacuum Range: 1” to 16”Hgg (Dry)

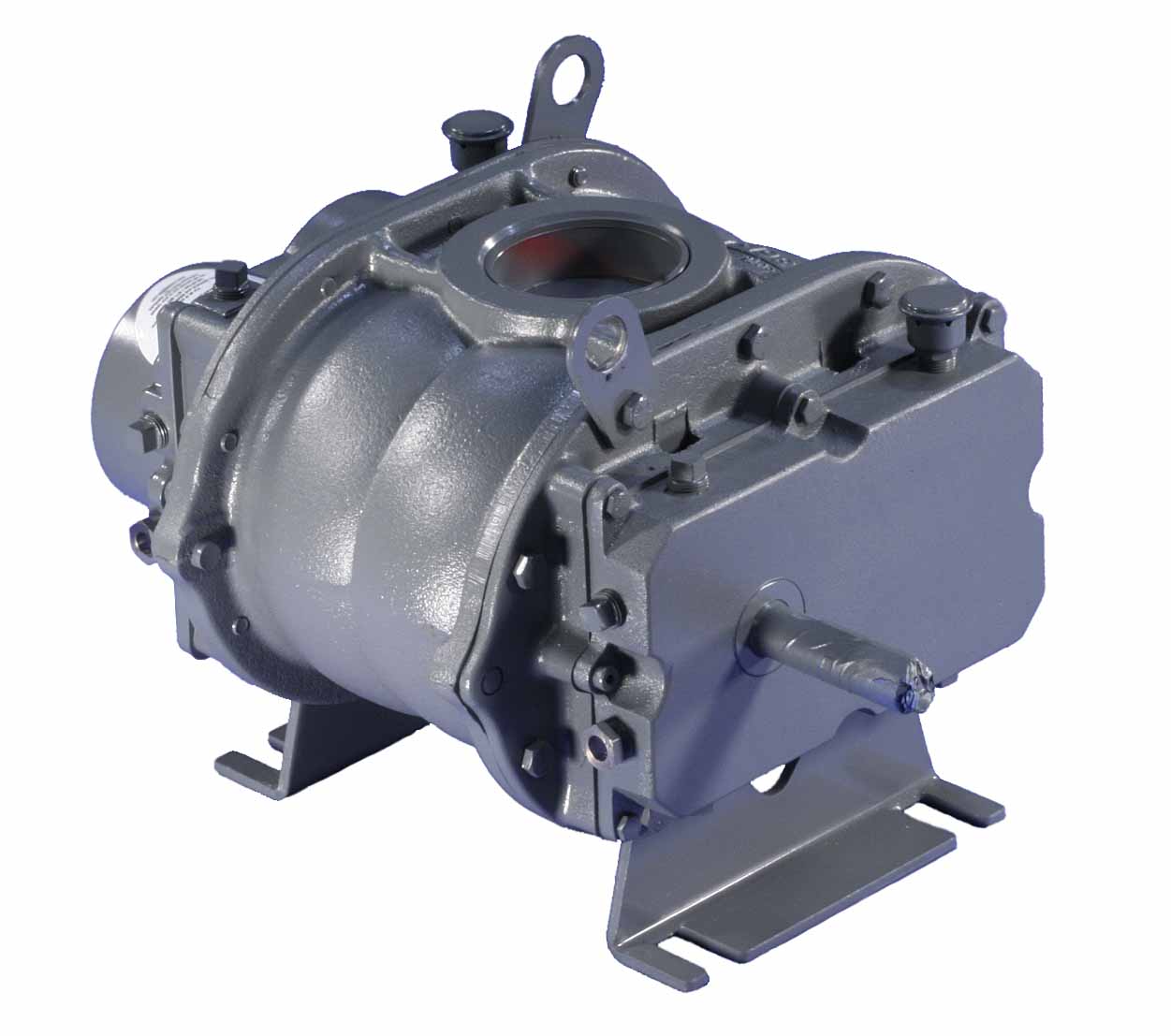

Universal RAI® DSL (Dual Splash Lubricated) Root blowers are heavy-duty rotary blowers designed with detachable, rugged steel mounting feet that permit easy in-field adaptability to vertical or horizontal installation requirements. Because of the detachable mounting feet, these units can be easily adapted to any of four drive shaft positions: right, left, bottom, or top. The compact, sturdy design is engineered for continuous service when operated in accordance with speed and pressure ratings.
Show More Information || Hide More Information
This model consists of a cast iron casing, carburized and ground alloy steel spur timing gears secured to steel shafts with a taper mounting and locknut, and cast iron involute impellers. Oversized antifriction bearings are used, with a cylindrical roller bearing at the drive shaft to withstand V-belt pull.
The Universal RAI DSL (URAI DSL) Root blowers feature splash oil lubrication on both the gear end AND drive end. The drive end has two shaft-mounted oil slingers and the gear end has ROOTS’ exclusive “figure-eight” gearbox design that improves oil distribution to maximize gear and bearing life. Sight glasses (3/8”) are provided for accurate oil level confirmation.
DESIGN AND CONSTRUCTION FEATURES
• Steel detachable mounting feet
• Rigid one-piece cast iron casing
• Anti-friction bearings
• Splash oil lubricated spur timing gears
• Splash oil lubricated drive end bearings
• Connections in standard pipe sizes
• Balanced, precision machined bi-lobe impellers
• Ground steel shafts
Warranty: Twenty-four months of operation or thirty months from date of original purchase.
Related PDFs:ROOTS Universal RAI® IO&M
Roots Universal RAI DSL Specification Sheet
Roots Universal RAI DSL Specification Sheet, Spanish
Universal RAI DSL Root Blowers
Roots Universal RAI® DSL Blowers (Dual Splash Lube). Unit is available in 12 different models. All models feature the “universal” mounting feet which allow it to be mounted in four different configurations. The unit is center-timed so that it may be operated in either direction. The units feature oil lubrication on the drive and gear end.Flow Range: 40 CFM to 1641 CFM
Pressure Range: 1 psi to 15 psi
Vacuum Range: 1” to 16”Hgg (Dry)
Universal RAI® DSL (Dual Splash Lubricated) Root blowers are heavy-duty rotary blowers designed with detachable, rugged steel mounting feet that permit easy in-field adaptability to vertical or horizontal installation requirements. Because of the detachable mounting feet, these units can be easily adapted to any of four drive shaft positions: right, left, bottom, or top. The compact, sturdy design is engineered for continuous service when operated in accordance with speed and pressure ratings.
Show More Information || Hide More Information
This model consists of a cast iron casing, carburized and ground alloy steel spur timing gears secured to steel shafts with a taper mounting and locknut, and cast iron involute impellers. Oversized antifriction bearings are used, with a cylindrical roller bearing at the drive shaft to withstand V-belt pull.
The Universal RAI DSL (URAI DSL) Root blowers feature splash oil lubrication on both the gear end AND drive end. The drive end has two shaft-mounted oil slingers and the gear end has ROOTS’ exclusive “figure-eight” gearbox design that improves oil distribution to maximize gear and bearing life. Sight glasses (3/8”) are provided for accurate oil level confirmation.
DESIGN AND CONSTRUCTION FEATURES
• Steel detachable mounting feet
• Rigid one-piece cast iron casing
• Anti-friction bearings
• Splash oil lubricated spur timing gears
• Splash oil lubricated drive end bearings
• Connections in standard pipe sizes
• Balanced, precision machined bi-lobe impellers
• Ground steel shafts
Warranty: Twenty-four months of operation or thirty months from date of original purchase.
Roots Universal RAI DSL Specification Sheet
Roots Universal RAI DSL Specification Sheet, Spanish
