Direct Drive Package for Lagoon Aeration

Our customer has created an innovative approach to wastewater aeration by pairing a shore-based power source with floating aeration units that are adaptable to a wide range of applications and climates.  This blower package, along with the power and electrical components, will be housed in a weather proof enclosure on shore that feeds air out through flexible hose to the floating aerators.

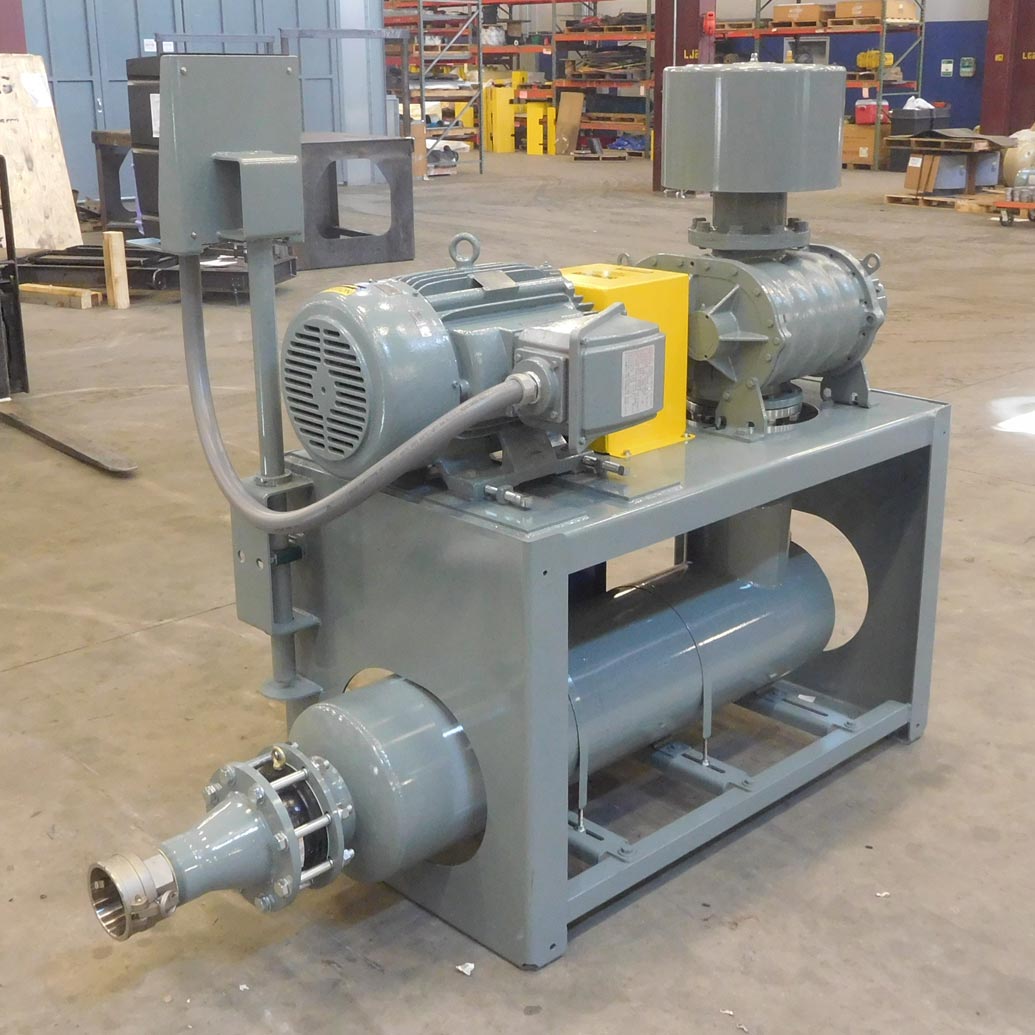

615 URAI, 25 HP, Direct Drive, 1170 RPM, 230-460 Vac, 3 Phase, 60 Hz

  • Howden Roots 615 URAI Rotary Positive Displacement Blower
  • Elevated Steel Fabricated Base
  • Motor, TEFC, 25 HP, 1170 RPM, 230-460 Vac, 3 Phase, 60 Hz
  • Coupling
  • Coupling Guard
  • Inlet Filter/Silencer, 6″, Paper Element, Flanged
  • Discharge Expansion Joint, 6″, EPDM
  • Discharge Silencer, SDY-6″, Chamber Absorptive type
  • Pressure Relief Valve, Weighted Type, 3″ with weights to 5 psig
  • Discharge Check Valve, 6″
  • Discharge Pressure Gauge, 0-15 psig
  • Unit tested at full load prior to shipment
  • Equipment is primed and finish coated, suitable for outdoor service
