For years pdblowers has worked with Vacom Systems, a leading provider of innovative industrial wastewater treatment systems that utilize Mechanical Vapor Recompression (MVR). The general goal of MVR systems is to recover wasted energy by taking low temperature steam created in an industrial process and compressing it to a higher pressure and temperature so it can be re-used as a heating source elsewhere in the process.
Vacom’s groundbreaking systems use a range of MVR solutions to recover and remove contaminents in waste water for the power, oil and gas, municipal, chemical, manufacturing, mining, and waste management industries.
Vacom’s One-Step!™ zero liquid discharge system is the only non-fouling, non-scaling evaporator and crystallizer system that completely eliminates any and all pollutants in the water leaving the plant.

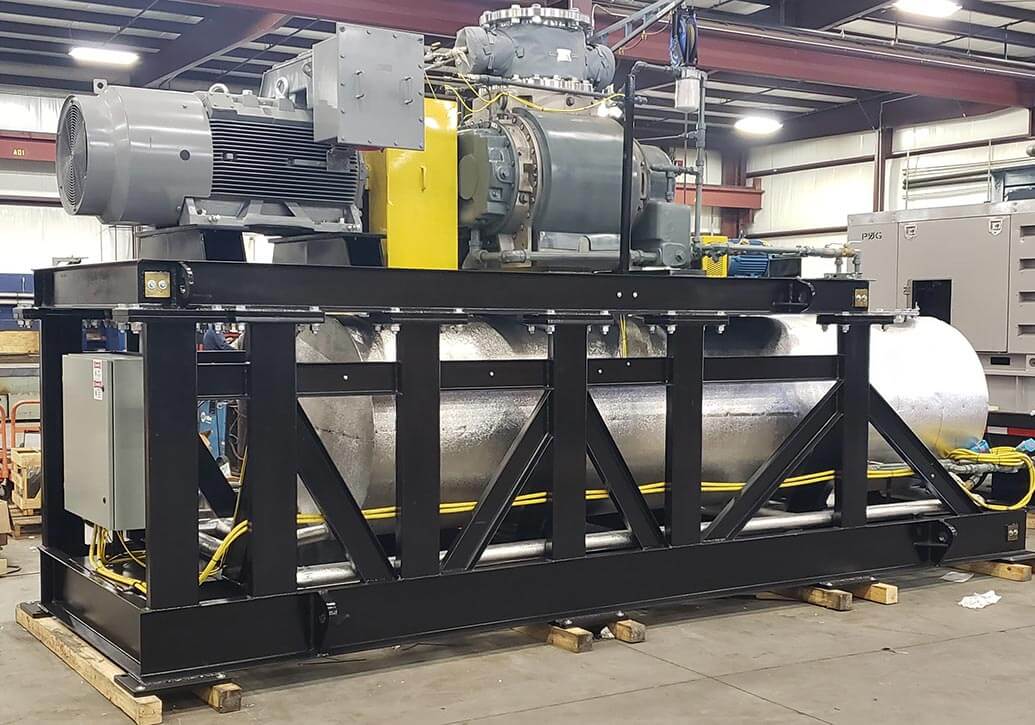

Steam Package Components
Roots Model 1425 RGS-J Steam Blower
- Mechanical seals for steam service
- 18″ inlet flange & 16″ discharge flange
- Pressure lubrication
- Cylinder insulation
- Electrolysis Nickel on wetted surfaces
Electric Driven Main Lube Oil Pump
- 460Vac/3/60 TEFC Motor
- Direct coupled
- Air-Oil heat exchanger
Pressure & Temperature Transmitters in Lube Oil System
Fabricated steel base for vertical steam flow
Direct drive torsionally soft coupling
350 HP Motor, IEEE-841 Severe Duty
Space heater & Thermostats
