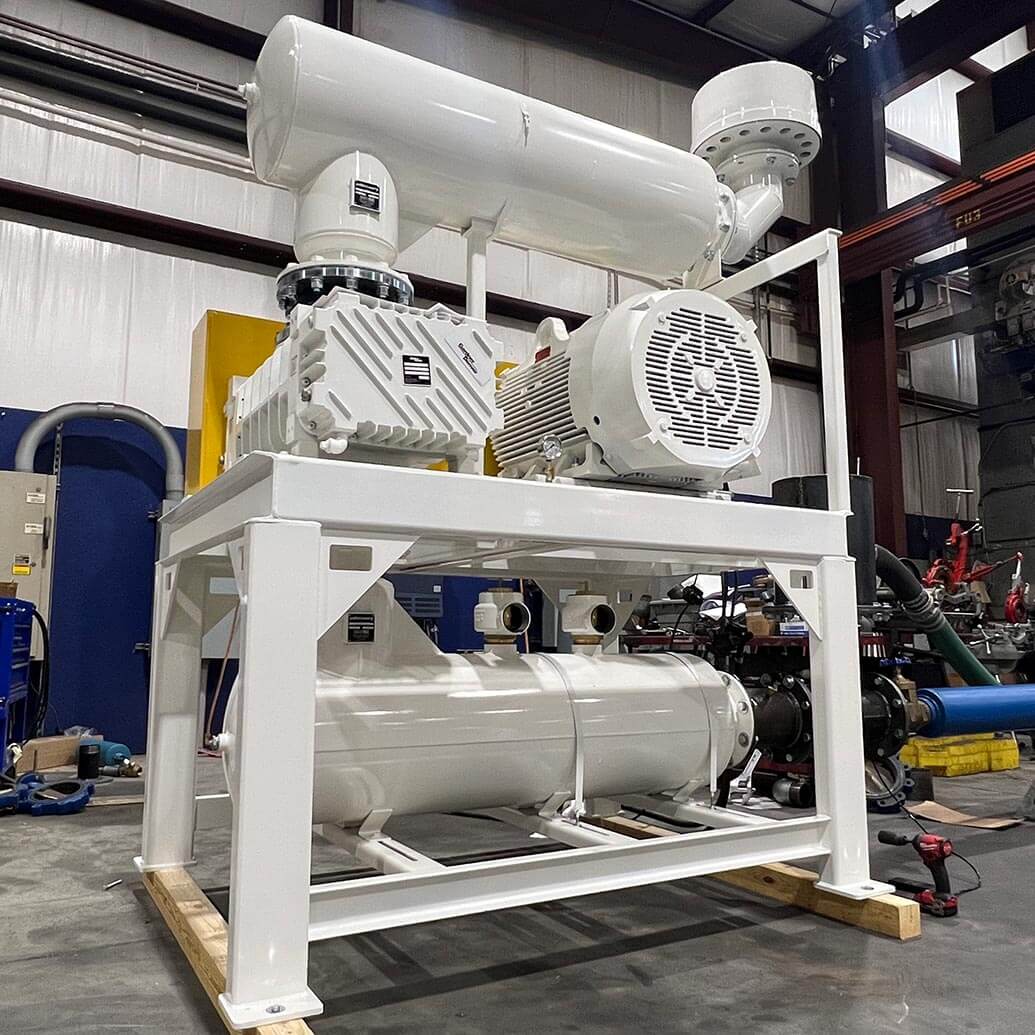

Positive displacement blower packages are a great choice for conveying the bulk materials of agriculture: moving raw materials from silo to truck, separating materials like shells or seeds, and packaging processed ingredients. This large pressure package is going to a plant that takes peanuts straight from the field and processes them by cleaning, shelling, and sizing them.
Package Components
- 624 HeliFlow Blower
- Electric Motor, 125 HP, 1800 RPM, TEFC
- Elevated Baseplate for Blower, Motor, and Accessories
- 125 HP V-Belt Drive & Guard w/ Removable Front Cover
- 8″ Inlet Filter
- 8″ Inlet Silencer
- 10″ Inlet Expansion Joint
- 10″ Discharge Expansion Joint
- 8″ Discharge Silencer with 10″ Flg
- Two Pressure Relief Valves, Set at 12 PSIG
- Motor Slide Base w/ Twin Adjusting Screws
- Discharge Pressure Gauge
- 8″ Discharge Check Valve
- Discharge Adapter: Transition to 6″ OD Pipe
