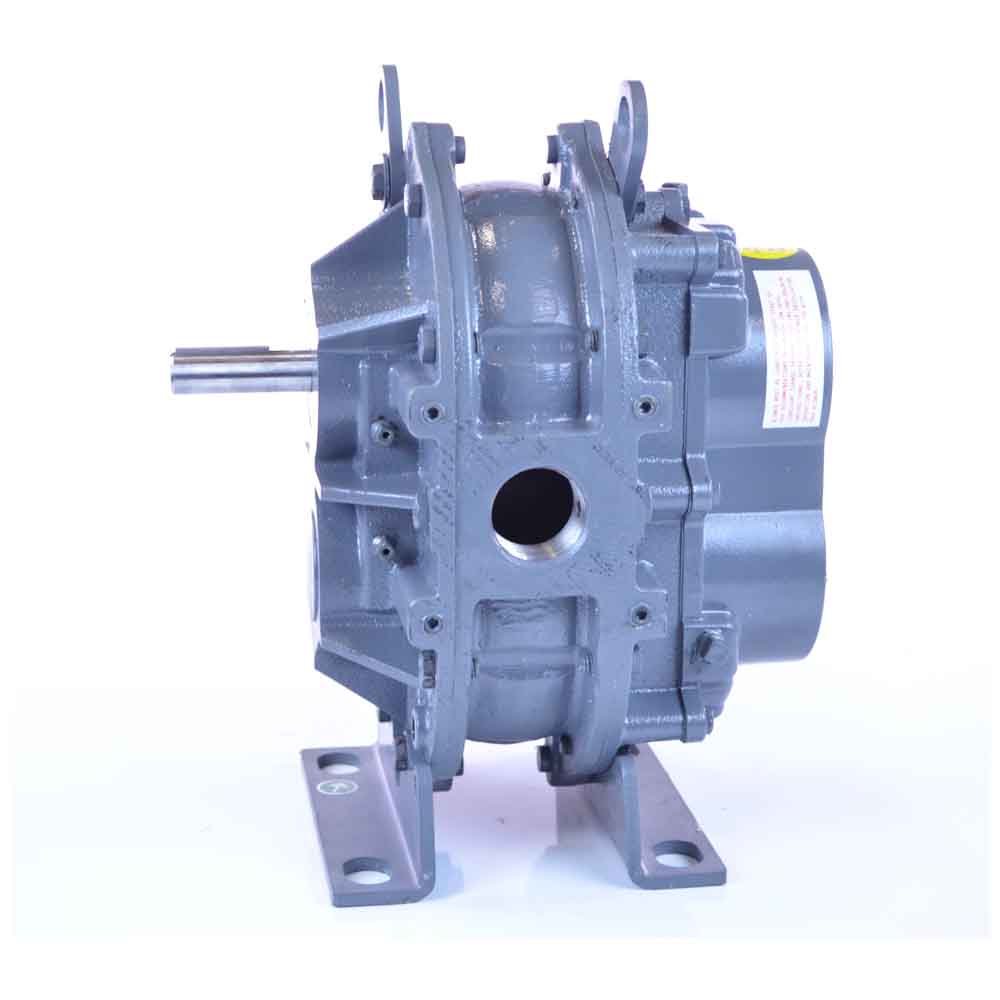

Roots URAI-G Gas Blowers: Roots Model 32 URAI-G
Flow Range: to 142 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 3600
Minimum RPM: 1090
Max ΔT: 240˚F
Connection: 1.25″ FPT
Shaft Dia.: 0.75″
Mechanical Seals
1/8″ NPT Purge Ports for buffer or seal gas
All units are mechanically tested and given 15 psig static leak test
Drive End Lubrication: Synthetic Grease
Gear End Lubrication: Oil
Required Oil for Gear End Horizontal Unit: 10.5 ounces
Required Oil for Gear End Vertical Unit: 8.5 ounces
Unit Weight: 69 pounds (31.4 kg)
Shipping Box Size (LxWxH): 17″x15.5″x12″ (432mmx394mmx305mm)
Shipping Container: Cardboard Box with formed foam
Roots Bill of Material (BOM) Number: 710480G0
Standard configuration is Horizontal LHC
32 URAI Roots URAI Gas Blower
$4,625.00
- Meets Build America Buy America Act requirements
| Shipping Weight: | 98 lbs |
|---|---|
| Shipping Dimensions: | 30 × 30 × 15 in |
| Max Flow: | 142 |
| Max Pressure: | 15 psi |
| Max Vacuum: | 16" Hg |
| Max Speed: | 3600 RPM |
| Manufacturer: | Roots |
