Product Description

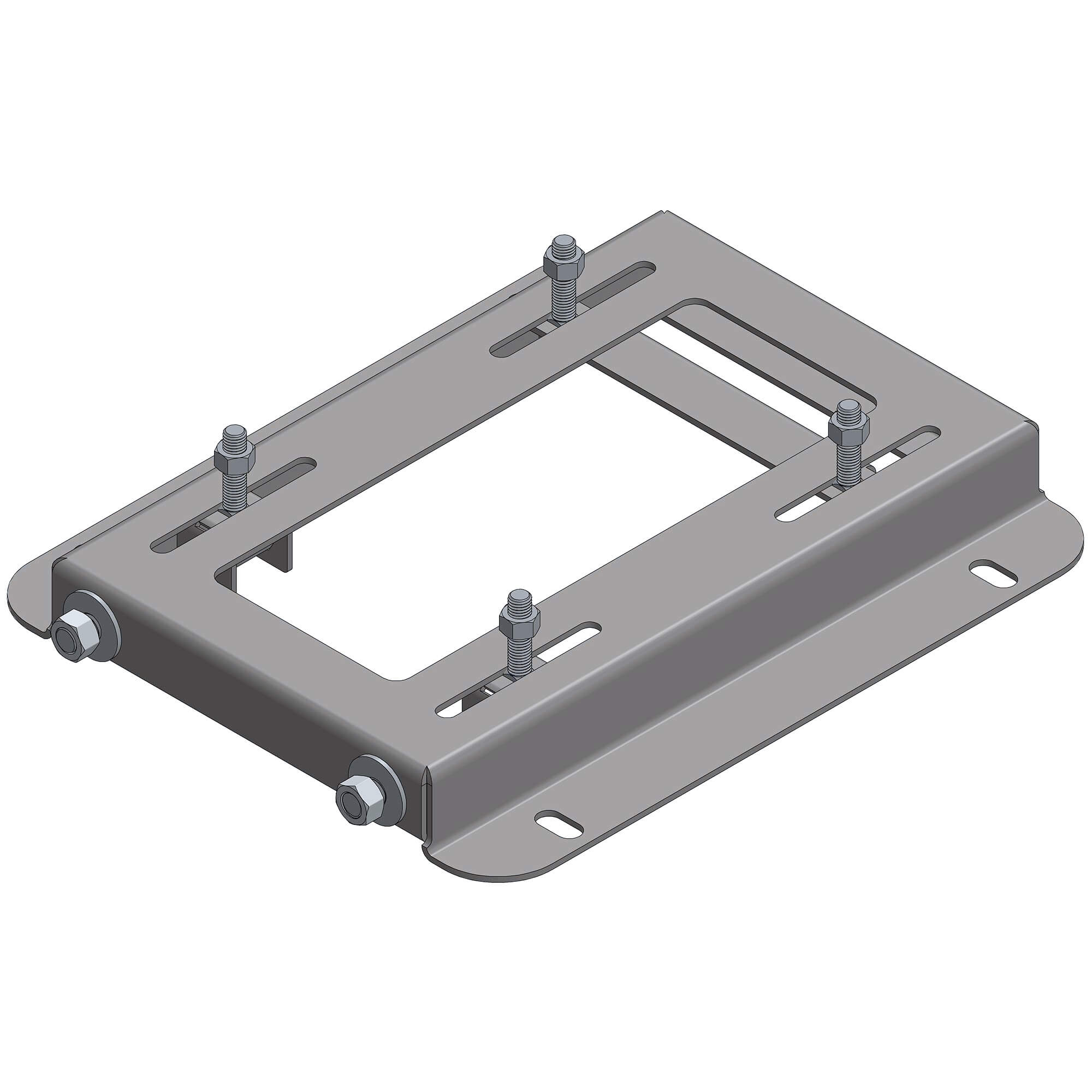

NEMA Frame 324T Motor Slide Base
Double Adjusting
Adjusting Bolt is 3/4″
Motor Mounting Bolts are 5/8″
Typically used on 25 HP Motors operating at 1200 RPM or on 40 HP motors at 1800 RPM.
Weight: 33 lbs

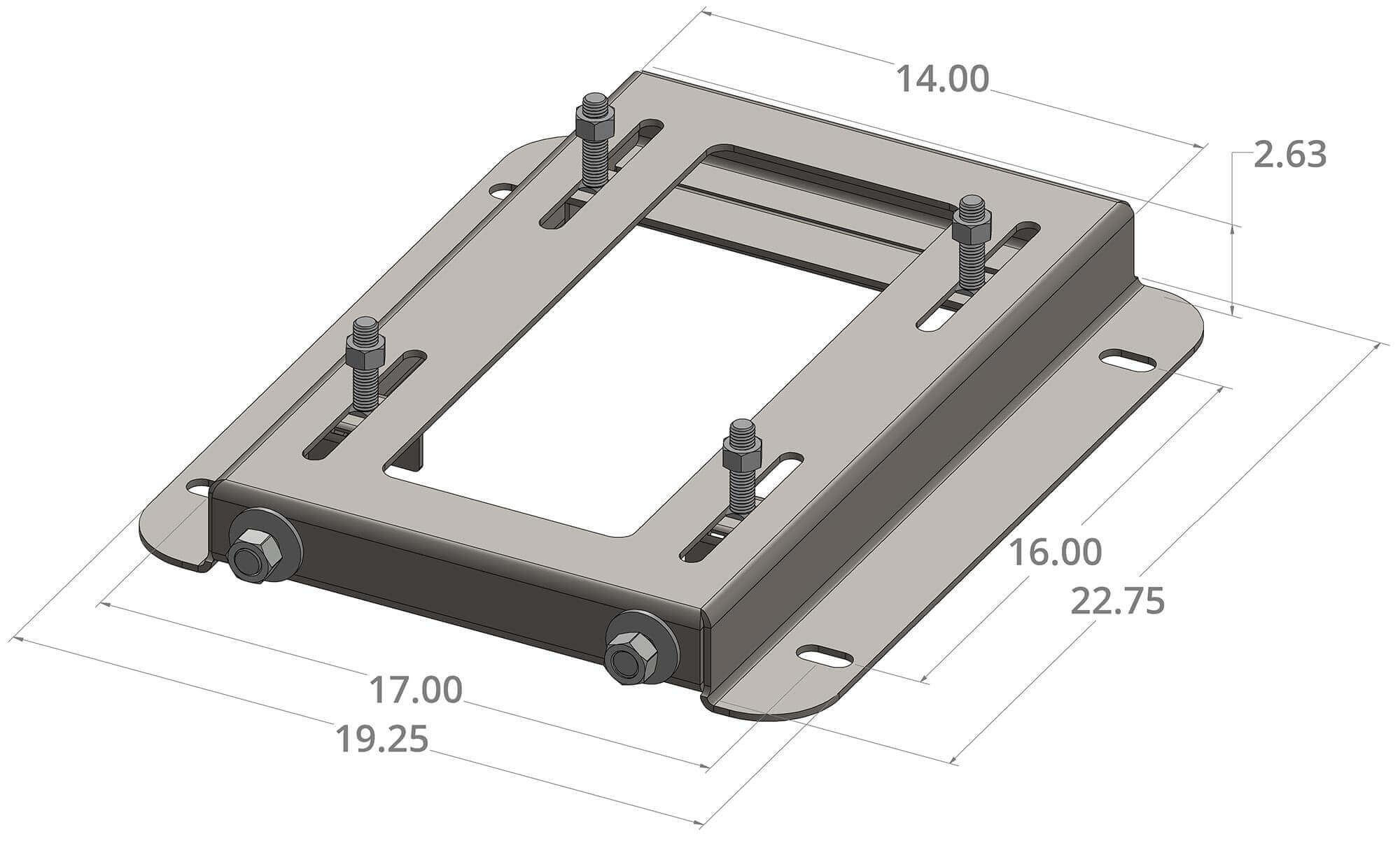

Product dimensions: 24″x19.5″x5.5″
pdblowers PN 54139
324T Motor Slide Base
$188.10
324T Frame
Motor Slide Base
Double Adjusting
| Shipping Weight: | 39 lbs |
|---|---|
| Shipping Dimensions: | 24 × 20 × 5.5 in |
