Product Description

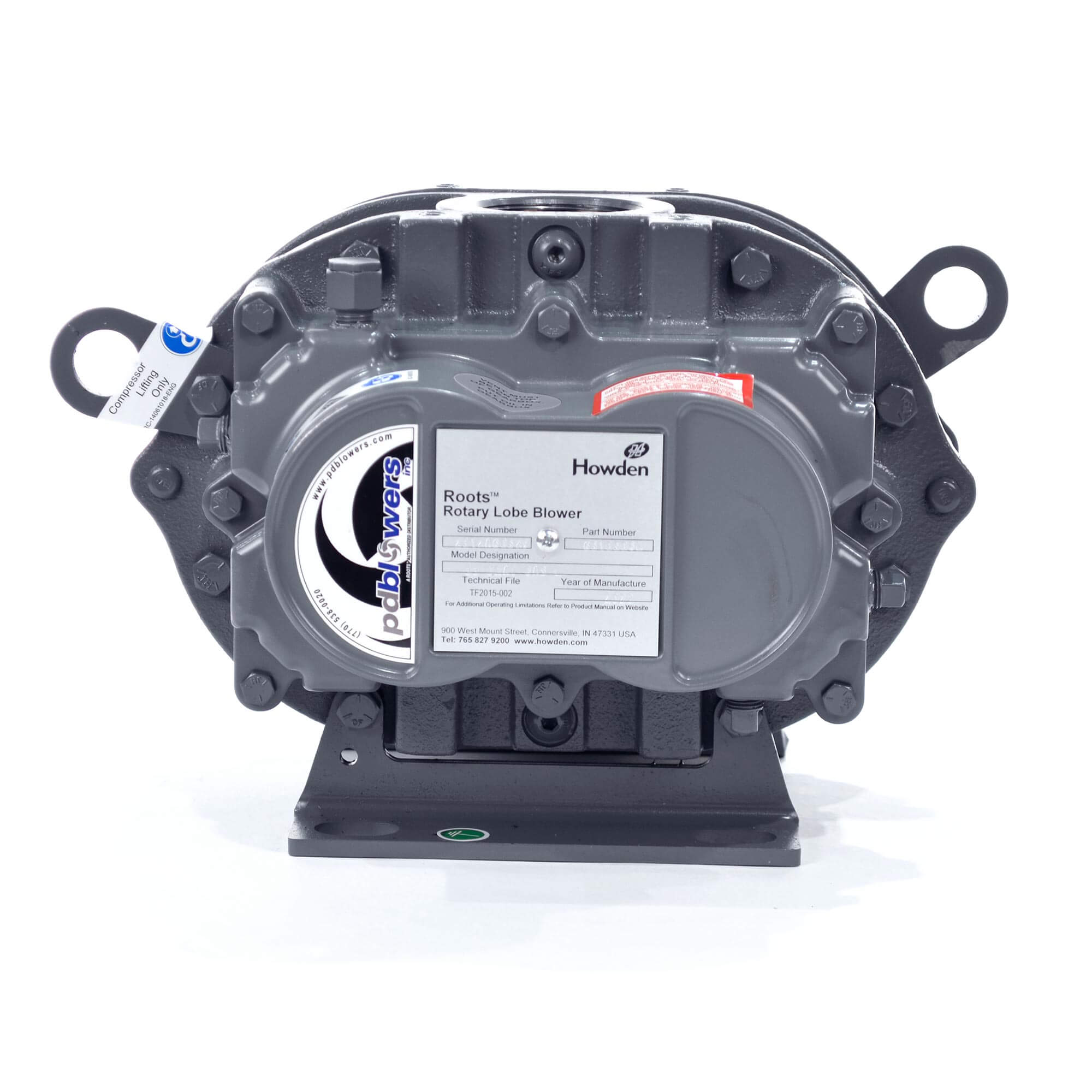

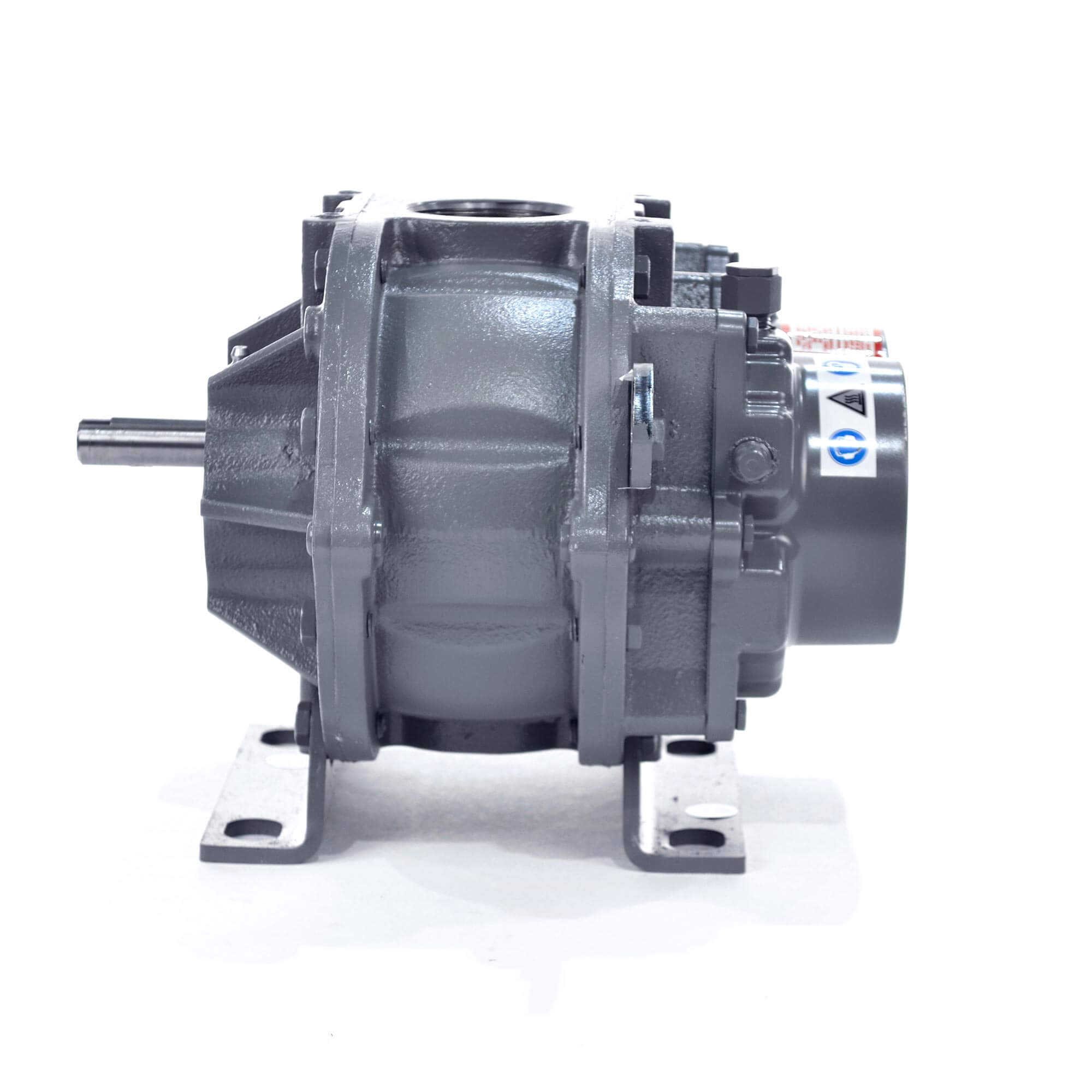

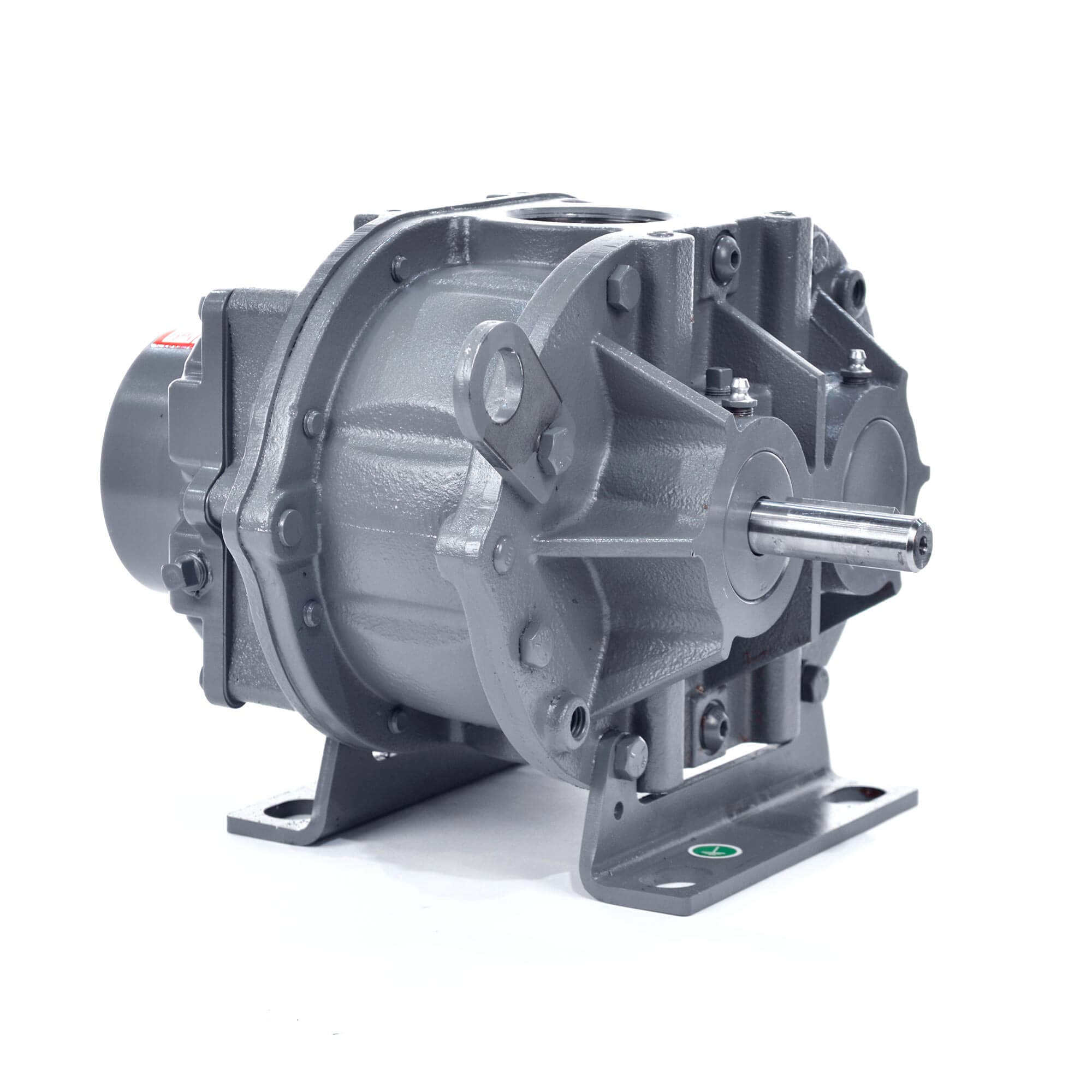

Roots URAI-G Gas Blower: Roots Model 33 URAI-G
Flow Range: to 195 CFM
Max Δ Pressure: 12 psi
Max Δ Vacuum: 15″ Hg
Maximum RPM: 3600
Minimum RPM: 1090
Max ΔT: 225˚F
Connection: 2″ FPT
Shaft Dia.: 0.75″
Mechanical Seals
1/8″ NPT Purge Ports for buffer or seal gas
All units are mechanically tested and given 15 psig static leak test
Drive End Lubrication: Synthetic Grease
Gear End Lubrication: Oil
Required Oil for Gear End Horizontal Unit: 10.5 ounces
Required Oil for Gear End Vertical Unit: 8.5 ounces
Unit Weight: 74 pounds (33.6 kg)
Shipping Box Size (LxWxH): 17″x15.5″x12″ (432mmx394mmx305mm)
Shipping Container: Cardboard Box with formed foam

Roots Bill of Material (BOM) Number: 651050G0
Standard configuration is Horizontal LHC
