Product Description

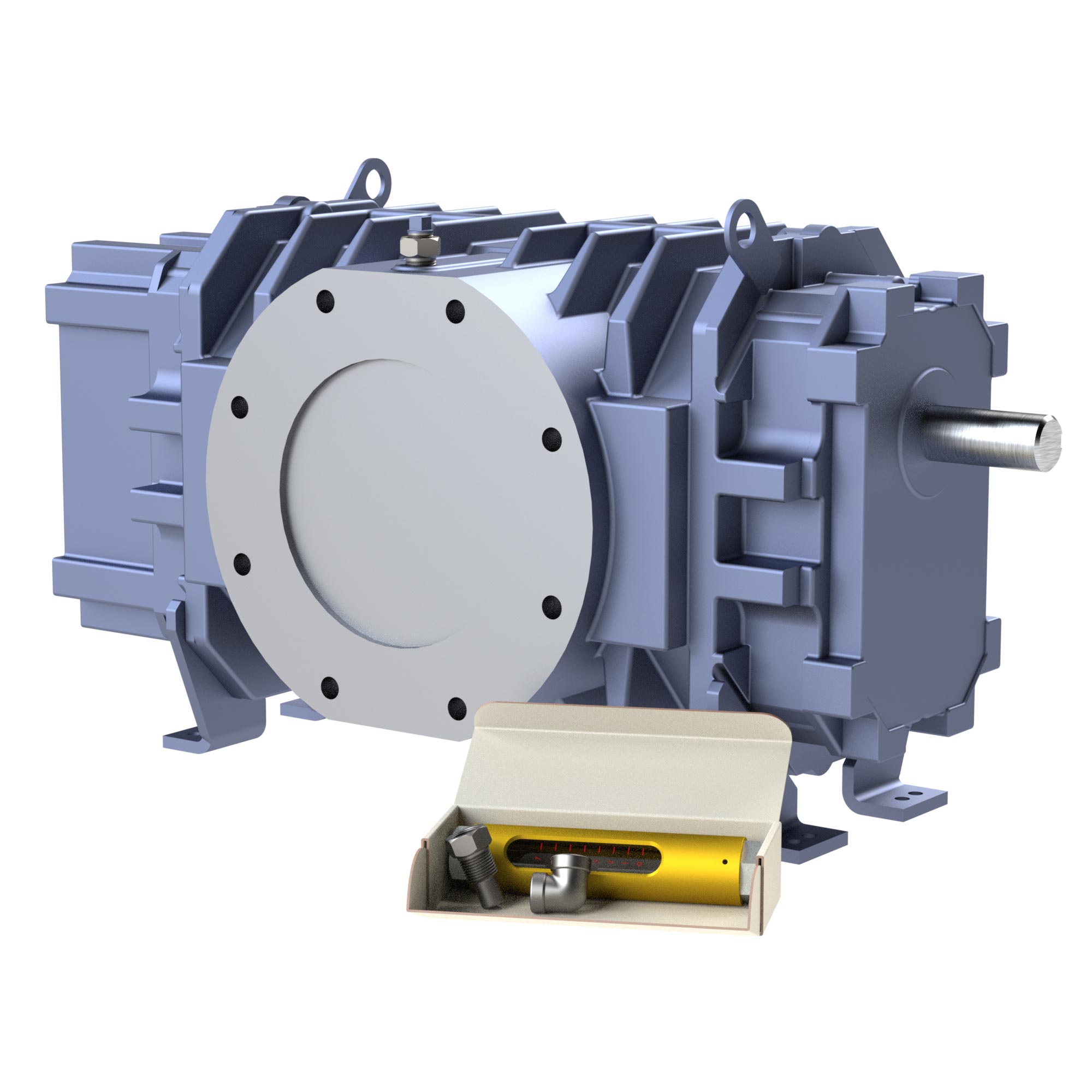

Includes a mounted water spray nozzle and a water flow meter for water injection (shipped loose). This feature cools the vacuum unit to enable it to reach deeper vacuum. This unit also runs quieter with water injection when compared to operating dry.
Maximum Sealing Water 4.5 GPM

Flow Range: to 1197 CFM
Max Δ Pressure: 10 psi
Max Δ Vacuum: 20″ Hg
Maximum RPM: 3200
Minimum RPM: 848
Max ΔT: 60°F
Inlet Connection: 8″ FLG
Discharge Connection: 6″ FLG
Shaft Dia.: 1.5″

Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil for Horizontal Unit: 19 ounces drive end, 36 ounces gear end
Required Oil for Vertical Unit: 9 ounces drive end, 18 ounces gear end
Unit Weight: 500 pounds
Shipping Container: Skid 42″x29″x23″ (LxWxH)

BOM# 82169020, 89568020, 56508320, 80305020

Roots VJ vacuum blowers are designed to handle a limited quantity of liquid without damage. This permits introduction of sealing water at the blower inlet to improve operating efficiency and reduce internal temperature rise. Part or all of the water required for sealing purposes may be present in the process being served by the blower. To establish and maintain continued satisfactory performance, a Roots VJ vacuum blower must be operated within certain approved limiting conditions. The Manufacturer’s warranty is contingent on such operation. See the Manufacturer’s Installation, Operation and Maintenance Manual for details on the maximum allowable operating conditions.

Please note that these units are typically not kept in stock. When you place an order pdblowers will advise you of the current lead time.

418 ROOTS RAM-VJ WHISPAIR Water Sealed Vacuum Exhauster

BOM Number: 82169020 SKU: N/A Category:

$13,754.00

Shipping Weight: 585 lbs
Shipping Dimensions: 42 × 29 × 23 in
Max Flow:

797 CFM

Max Pressure:

15 psi

Max Vacuum:

24" Hg

Max Speed:

3200 RPM

Manufacturer:

Howden Roots
