42 Roots URAI Blower

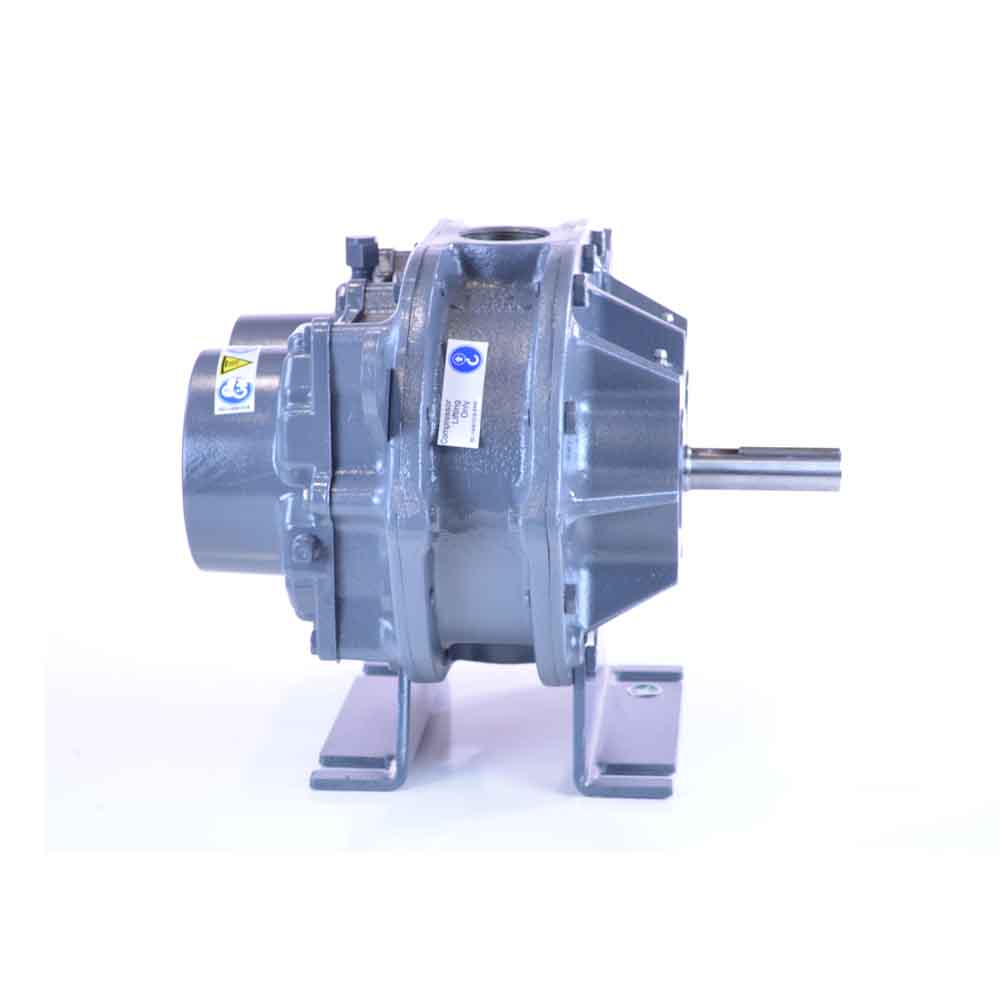

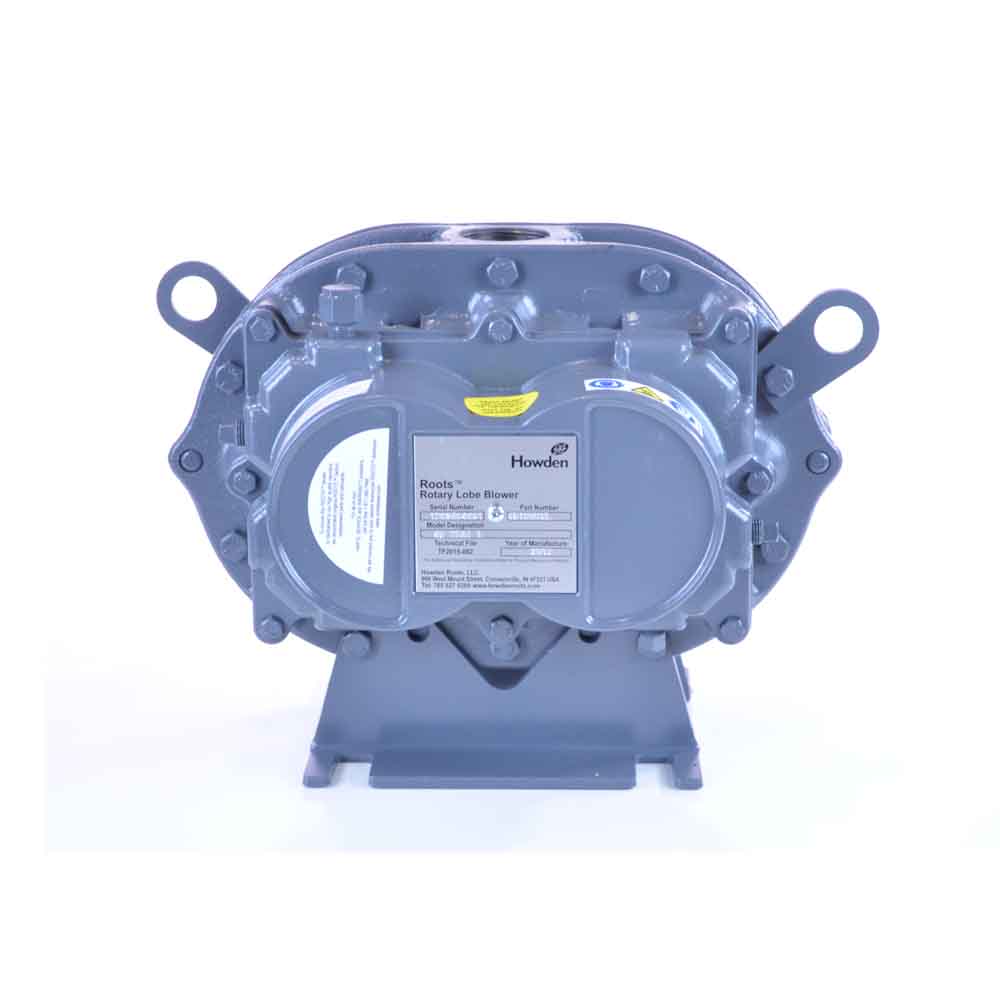

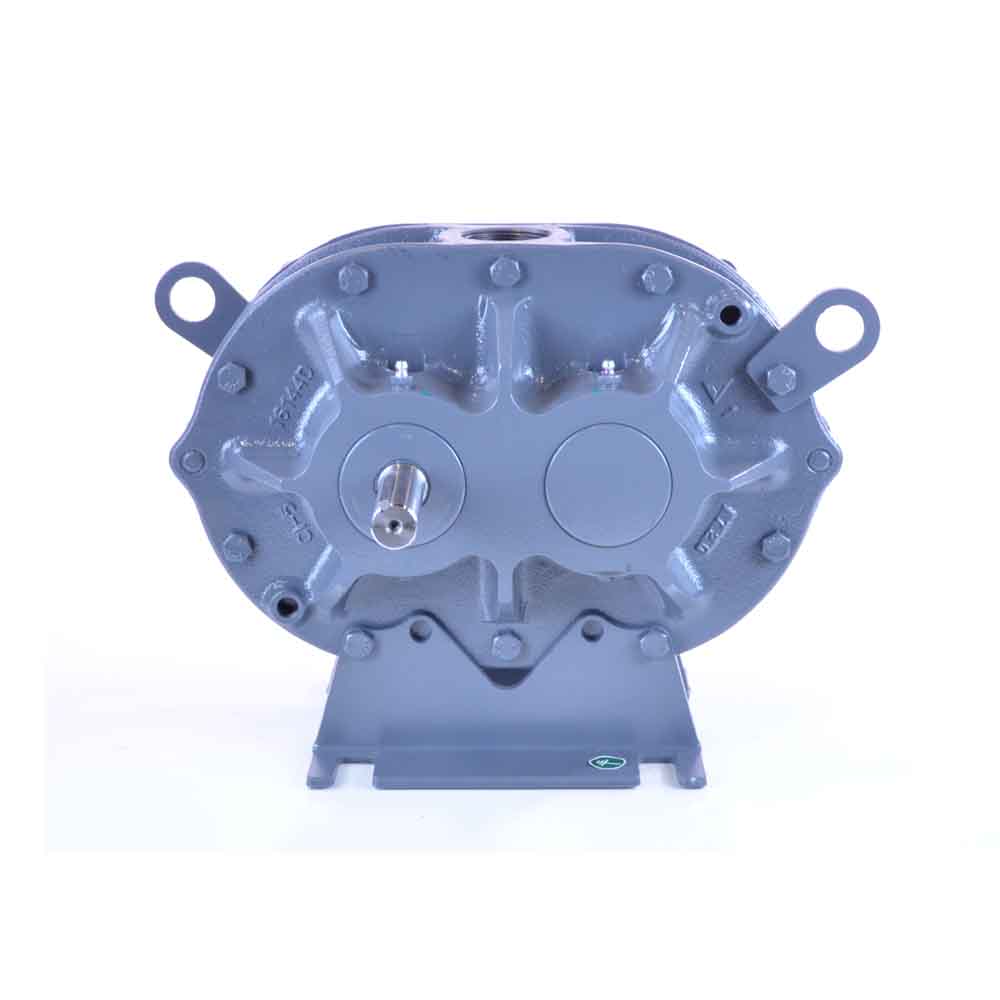

Roots Blower Model 42 URAI
Flow Range: to 187 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Max RPM: 3600
Min RPM: 848
Max ΔT: 240˚F
Connection: 1.5″ FPT
Shaft Dia.: 0.875
Drive End Lubrication: Grease
Gear End Lubrication: Oil
Required Oil for Gear End Horizontal Unit: 22.8 ounces
Required Oil for Gear End Vertical Unit: 12.7 ounces
Unit Weight: 88 pounds (40 kg)
Shipping Box Size (LxWxH): 21.5″x19.5″x15.5″ (546mmx495mmx394mm)
Shipping Container: Cardboard Box with formed foam

*Note: While technically allowable to ship ground, due to frequent damage we now only ship this product via freight. Contact us if you prefer to sign a damage waiver and ship via another method.

Roots Bill of Material (BOM) Number: 65108020

Lubrication Recommendations

Proper lubrication is the key to long life for your blower. Roots recommends synthetic oil and grease for all new units.  The oil viscosity should be selected based on the ambient conditions where the blower will be operating.  Click here for detailed information about the type of lubricants your blower needs.

Oil Change Intervals
New blowers ship dry and will need oil added prior to start up.  The first oil change should be performed after the initial 100 hours of operation.  After this, the oil change frequency is determined by the oil temperature.  Normal expectancy of synthetic blower oil is about 4000 to 8000 hours with an oil temperature of about 180°F (82°C). As the oil temperature increases by increments of 15 to 18°F (8°C to 10°C), the life is reduced by half.  Click here for more information about estimating oil temperature and lubricant lifespan.

Greasing Intervals
For blower models that utilize grease on the drive end, grease should be topped off as needed on a regular basis.  The table below shows recommended greasing intervals based on operating hours.
