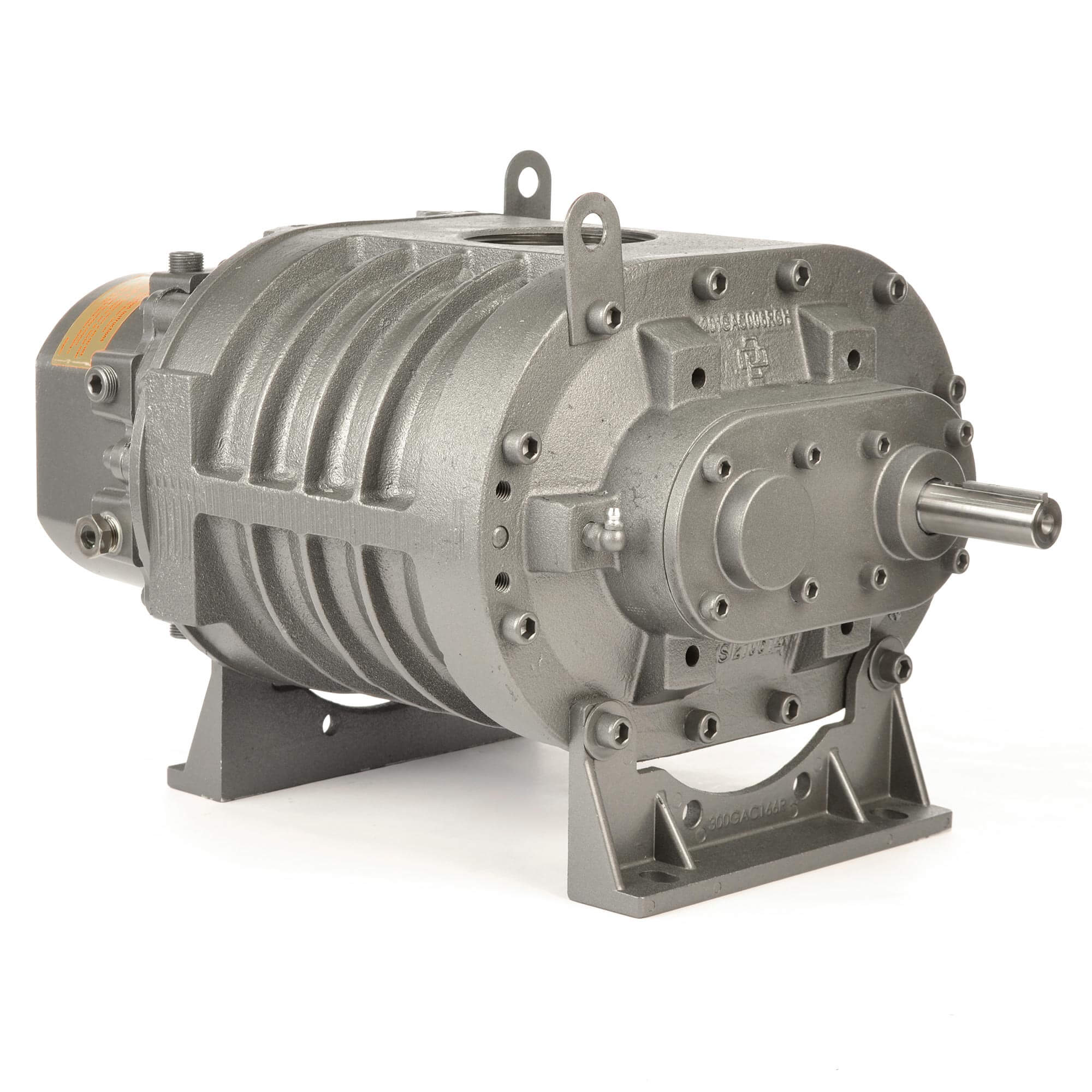

Sutorbilt 4L Blower
The Sutorbilt 4L Positive Displacement Blower is a model in Gardner Denver’s Sutorbilt Legend series. The current series is the “S” series, so new 4L models may be referred to as 4LS blowers. Older series include the 4LR, 4LP, 4LL, 4LF and 4LB blowers.
pdblowers is a distributor and agent for Howden Roots, the largest manufacturer of positive displacement blowers. We offer repair and replacement services for the Sutorbilt 4L blower. Click here to learn more about Sutorbilt 4L blower repair.
The Roots equivalent for a Sutorbilt Legend 4L is typically the Roots URAI 47, although it is always recommended to check your specific performance requirements when selecting a blower. A basic comparison of specs is below; for more information or to buy online, click here for the Roots 47 URAI blower.
Sutorbilt Legend 4L vs Roots URAI 47
| Sutorbilt Legend 4L | Roots URAI 47 | |
|---|---|---|
| Flow Range: | to 579 CFM | to 523 CFM |
| Max Δ Pressure: | 7 psi | 7 psi |
| Max Δ Vacuum: | 14″ Hg | 15″ Hg |
| Maximum RPM: | 3600 | 3600 |
| Minimum RPM: | 955 | 848 |
| Max ΔT: | 160˚F | 225˚F |
| Connection: | 3″ FPT | 3″ FPT |
| Shaft Dia.: | 0.875″ | 0.875″ |
| Drive End Lubrication: | Grease | Grease |
| Gear End Lubrication: | Oil | Oil |
| Required Oil for Gear End (Horizontal Unit): | 24 ounces | 22.8 ounces |
| Required Oil for Gear End (Vertical Unit): | 14 ounces | 12.7 ounces |
| Recommended Oil: | Aeon PD | Roots Synthetic |
| Unit Weight: | 182 lb | 128 lb |
| Mounting feet: | Universal | Universal |
| Configurations: | LHC, RHC, BHC, THC | LHC, RHC, BHC, THC |
*Mounting feet – Universal mounting feet allow the blower to be mounted in a horizontal or vertical position
**Configurations – This refers to the placement of the driveshaft and orientation of the blower. Click here for more information.
Sutorbilt Model Numbers
Model numbers consist of 7 characters and will be stamped on a nameplate on the blower. The first four characters will be the same for all of the 4L blower models. The last three characters will indicate the configuration, series and basic options for the specific blower.
The current standard 4L configurations are: GACLCSA, GACLDSA, GACLASA, GACLBSA
Previous standard model numbers may include: GACLARA, GACLBRA, GACLCRA, GACLDRA, GACLAPA, GACLBPA, GACLCPA, GACLDPA, GACLALA, GACLBLA, GACLCLA, GACLDLA, GACLAFA, GACLBFA, GACLCFA, GACLDFA, GACLABA, GACLBBA, GACLCBA, GACLDBA
