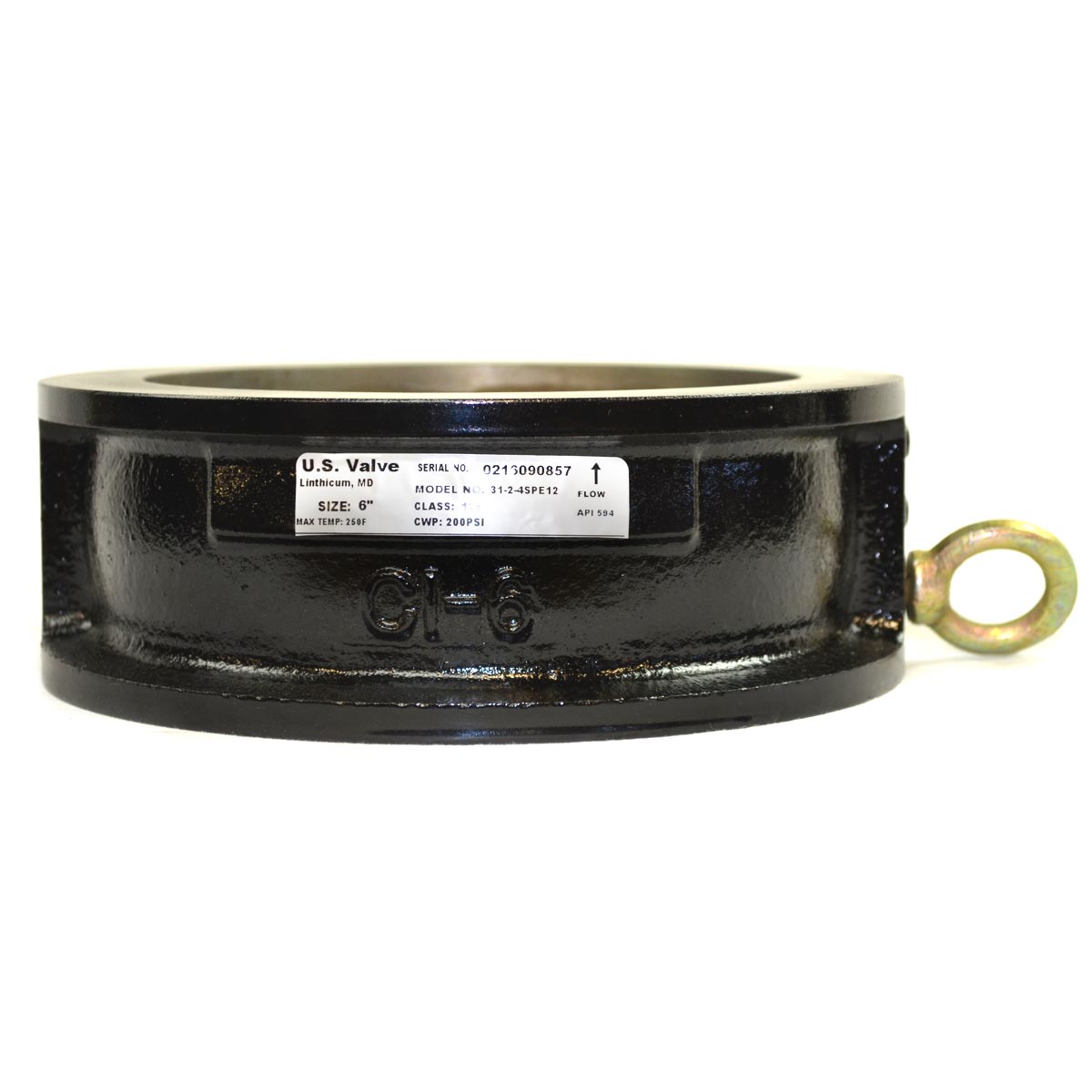

US Valve Series 31 Wafer Style Check Valves
Cast iron body, 316 stainless steel internals and hardware, 316 stainless steel spring, EPDM seal
The 6″ Wafer Check Valve has the following specifications:
- A: 8 3/4″, B: 3″, C: 6 1/16″, D: 1 15/16″ – See diagram
- ASME Class 125
- EPDM Temperature Range: -40° F to 300° F
- Maximum working pressure: 250 psi at 60° F
- Assembled, inspected, and tested in the USA

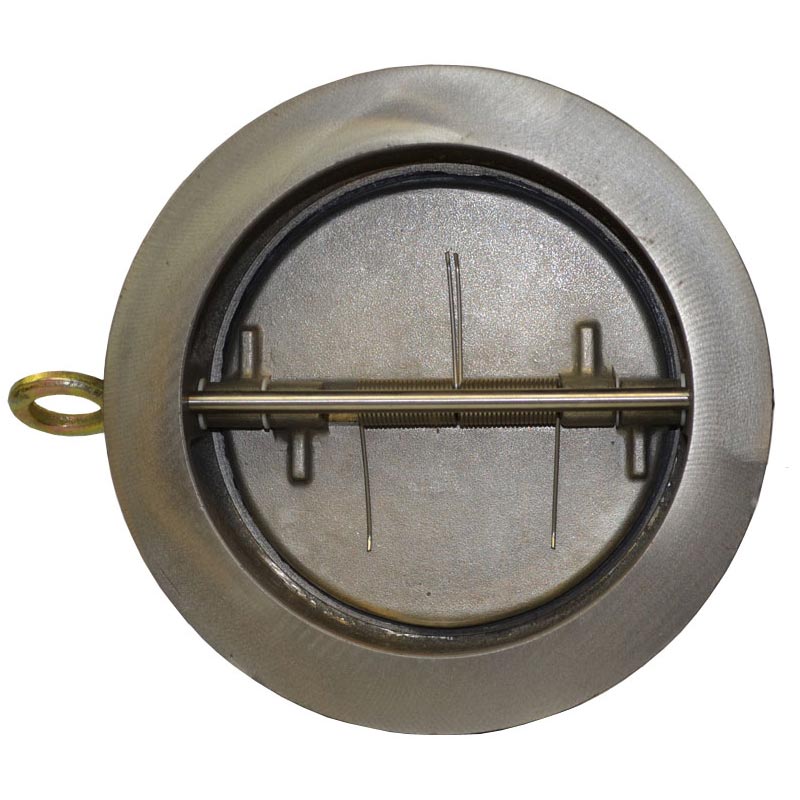

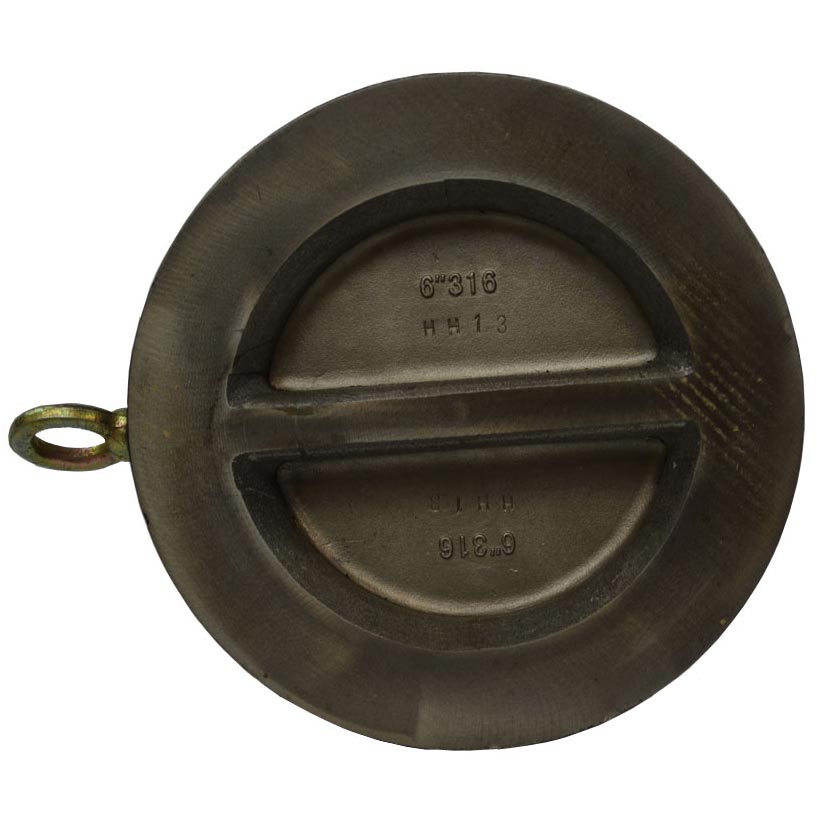

US Valve Series 31 Dual Disc Wafer Style Check Valves
Dual Plate Wafer Check Valves have been the preferred choice for decades due to their proven reliability and low pressure drops. All US Valve check valves are tested to API 598 and must meet or exceed all applicable API, ANSI and ASTM Standards.
Dual Plate Wafer Check Valves offer some impressive advantages over other types of check valves.
- Low Pressure Drop (High Cv)
Dual plate wafer check valves have larger open area than other designs, thus reducing pressure drop compared to swing, lift or other check valves.
- Light Weight
Reduces weight by 80–90% compared to conventional Flanged check valves.
- Lower Cost
Light weight, compact profiles and the elimination of flanges allows DPW check valves to be manufactured more economically than other designs, especially as pipe diameters increase.
- Alleviates Water Hammer
Our spring activated discs are designed to close our valves quickly. This assures high performance, eliminating chatter and creating dynamic responsiveness in a non-slam design.
- Simple Installation
Easier to install, remove and replace in both new and existing piping systems.
Variety of Configurations
US Valve offers a wide variety of wafer bodies in different styles and materials. These can be assembled with any one of our standard disc, optional spring and elastomer seal choices to make a valve that exactly fits your application. Pins and hardware are always 316SS. Contact pdblowers if you would like a quote on any of these options.
316 Stainless Steel
|316 SS Standard Torque
316 SS Minimum Torque
316 SS API Trim 10
5050 Style Check Valve
The US Valve 31 series is equivalent to the Techno 5050 Style valve. Dimensions and performance are the same. The primary functional difference is the retainer-less design of the Techno 5050; the standard Techno design has a center post that fully supports the internal assembly without an external pins or plugs, so there are no holes and plugs in the body which could potentially allow fugitive emissions to atmosphere. If you have a gas application you may want to consider a Techno 5050 valve or contact us about a retainerless option from US Valve.
6″ Dual Plate Wafer Check Valve
Typically kept in stock. If not, lead time <1 week.
|Shipping Weight:||20 lbs|
|Shipping Dimensions:||8.75 × 10.5 × 3 in|
