Product Description

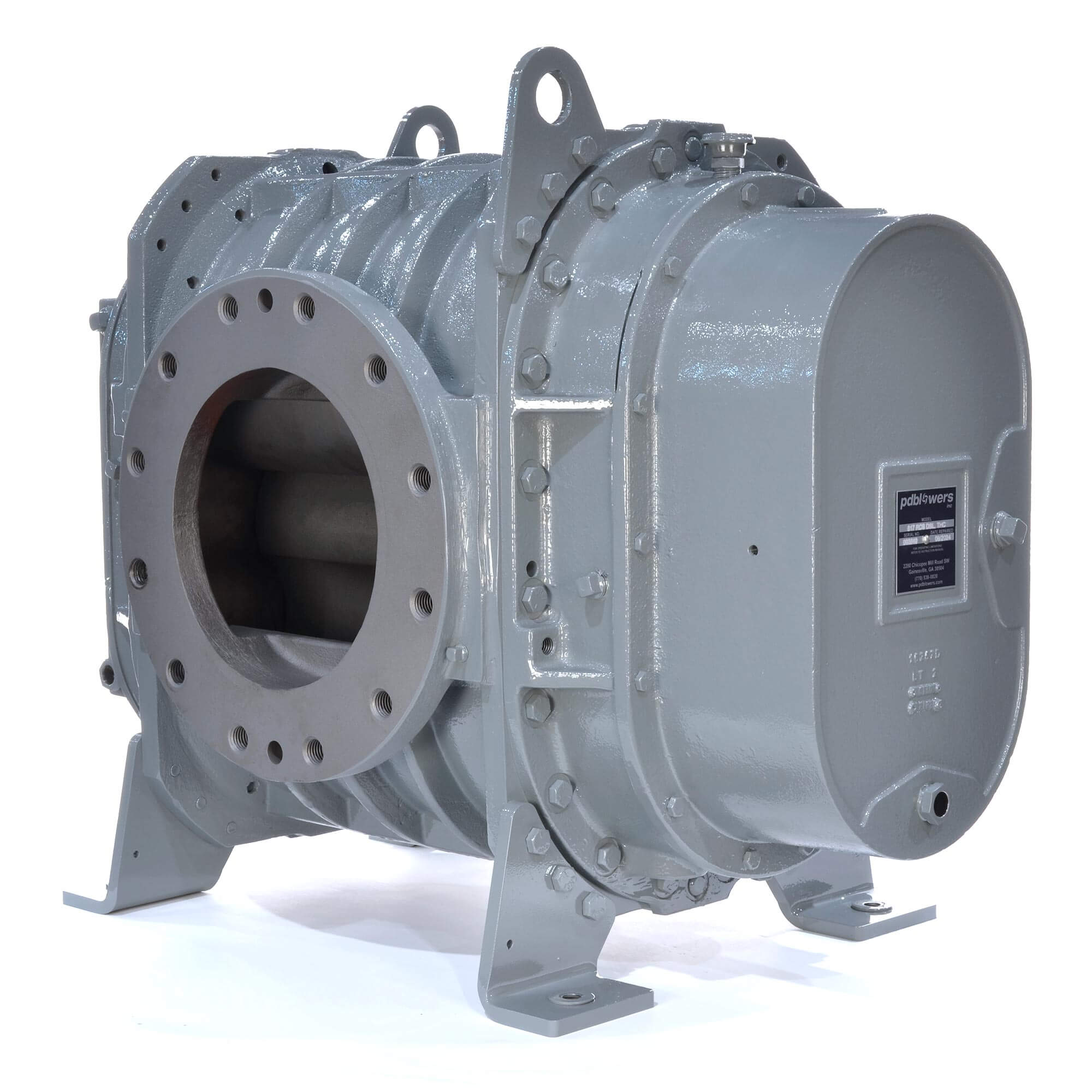

ROOTS RCS-DSL Frame 817 Rotary Blowers
Roots RCS rotary blowers are heavy duty units that are center-timed for rotation in either direction. Detachable rugged steel mounting feet allow in-field adaptability to either vertical or horizontal installation requirements. The top shaft is extended for drive on side outlet blowers, and either shaft can be extended for drive on top or bottom outlet rotary blowers.  This DSL model features Dual Splash Lubrication, where the basic RCS model uses Trico oilers for lubrication.

Flow Range: to 4050 CFM
Max Δ Pressure: 18 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 2250
Minimum RPM: 477
Max ΔT: 230˚F1
Connection: 10″ Flange
Shaft Dia.: 2.75″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil for Horizontal Unit: 13.5 pints Gear End
Required Oil for Horizontal Unit: 7 pints Drive End
Required Oil for Vertical Unit: 9.5 pints Gear End
Required Oil for Vertical Unit: 5 pints Drive End
Unit Weight: 1200 pounds (545.5 kg)

1Max ΔT: 260˚F with Oil Cooler

Shipping Container: Skid

ROOTS BOM# RC-205468020


817 RCS-DSL Blower with Dual Splash Lubrication

BOM Number: RC-205468020 SKU: N/A Category:


This model is currently experiencing long lead times from the factory. Please contact us if you need to confirm inventory prior to ordering.
Shipping Weight: 1300 lbs
Shipping Dimensions: 54 × 32 × 42 in
Max Flow:


Max Pressure:

18 psi

Max Vacuum:

16" Hg

Max Speed:

2250 RPM


Howden Roots
