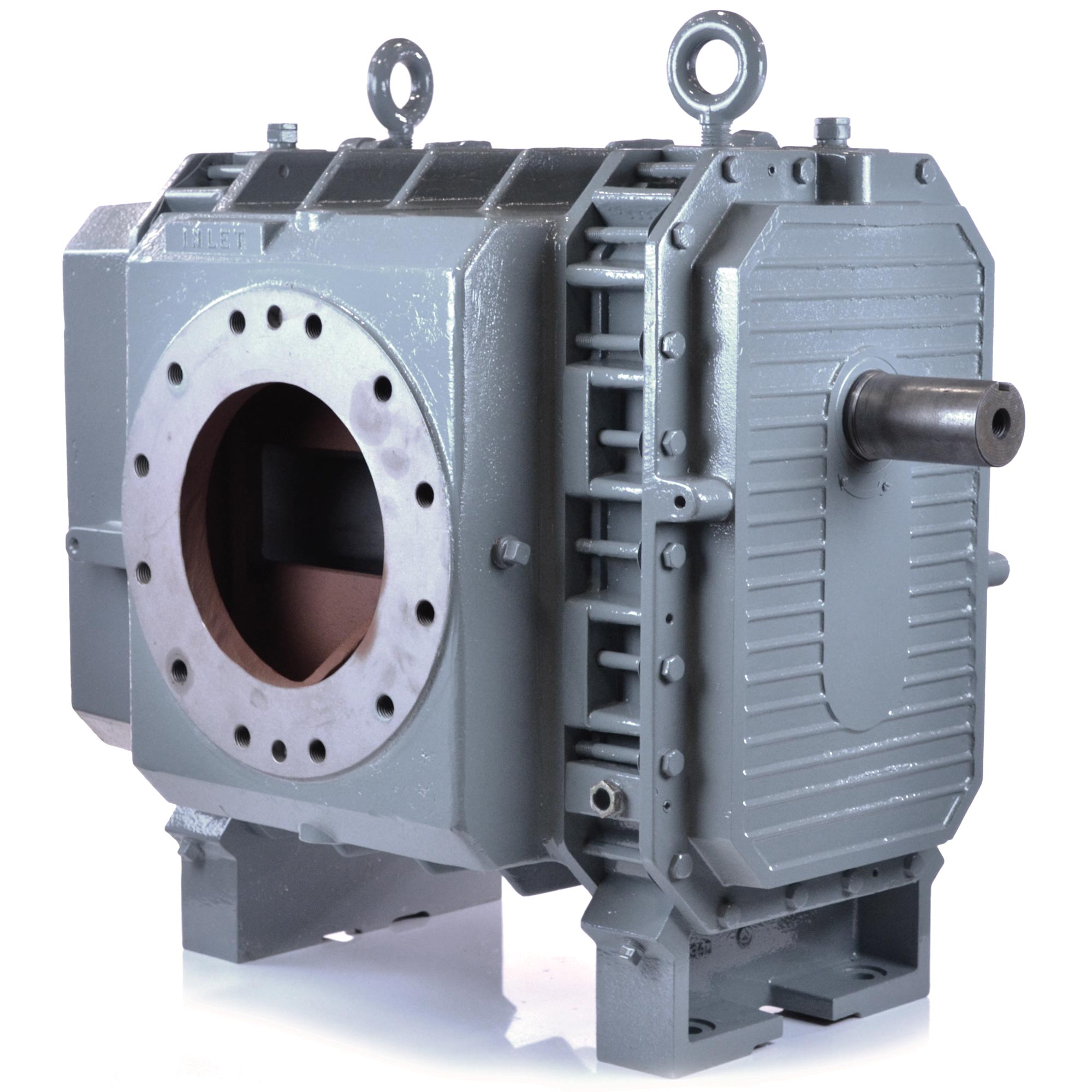

ROOTS RCS-J Frame 817
Flow Range: to 3179 CFM
Max Δ Pressure: 18 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 2250
Minimum RPM: 477
Max ΔT: 230˚F
Inlet Connection: 10″
Discharge Connection: 10″
Shaft Dia.: 2.75″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil for Horizontal Unit: 256 ounces Gear End
Required Oil for Horizontal Unit: 120 ounces Drive End
Required Oil for Vertical Unit: 144 ounces Gear End
Required Oil for Vertical Unit: 80 ounces Drive End
Unit Weight: 1620 pounds (736 kg)

¹Max ΔT: 260˚F with Oil Cooler

Shipping Container: Skid

ROOTS BOM# 74567020, 74575020, 74566020, 74574020

Obsolete BOMs:
817 RCS-JH – 857405020 (857-405-020), 858839020 (858-839-020)
817 RCS-JV – 857404020 (857-404-020), 858841020 (858-841-020)
