Product Description
Roots Model 45 URAI-J-DSL
Flow Range: to 395 CFM
Max Δ Pressure: 10 psi
Max Δ Vacuum: 15″ Hg
Max RPM: 3600
Min RPM: 848
Max ΔT: 225˚F
Connection: 2.5″ FPT
Shaft Dia.: 0.875″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil Gear End Horizontal Unit: 14.5 ounces
Required Oil Drive End Horizontal Unit: 10.8 ounces
Required Oil Gear End Vertical Unit: 12.7 ounces
Required Oil Drive End Vertical Unit: 5.5 ounces
Unit Weight: 122 pounds (55.4 kg)
Shipping Box Size (LxWxH): 17″x15.5″x12″ (432mmx394mmx305mm)
Shipping Container: Cardboard Box with formed foam
Common carrier is recommended
Roots Bill of Material (BOM) Number: T30410020

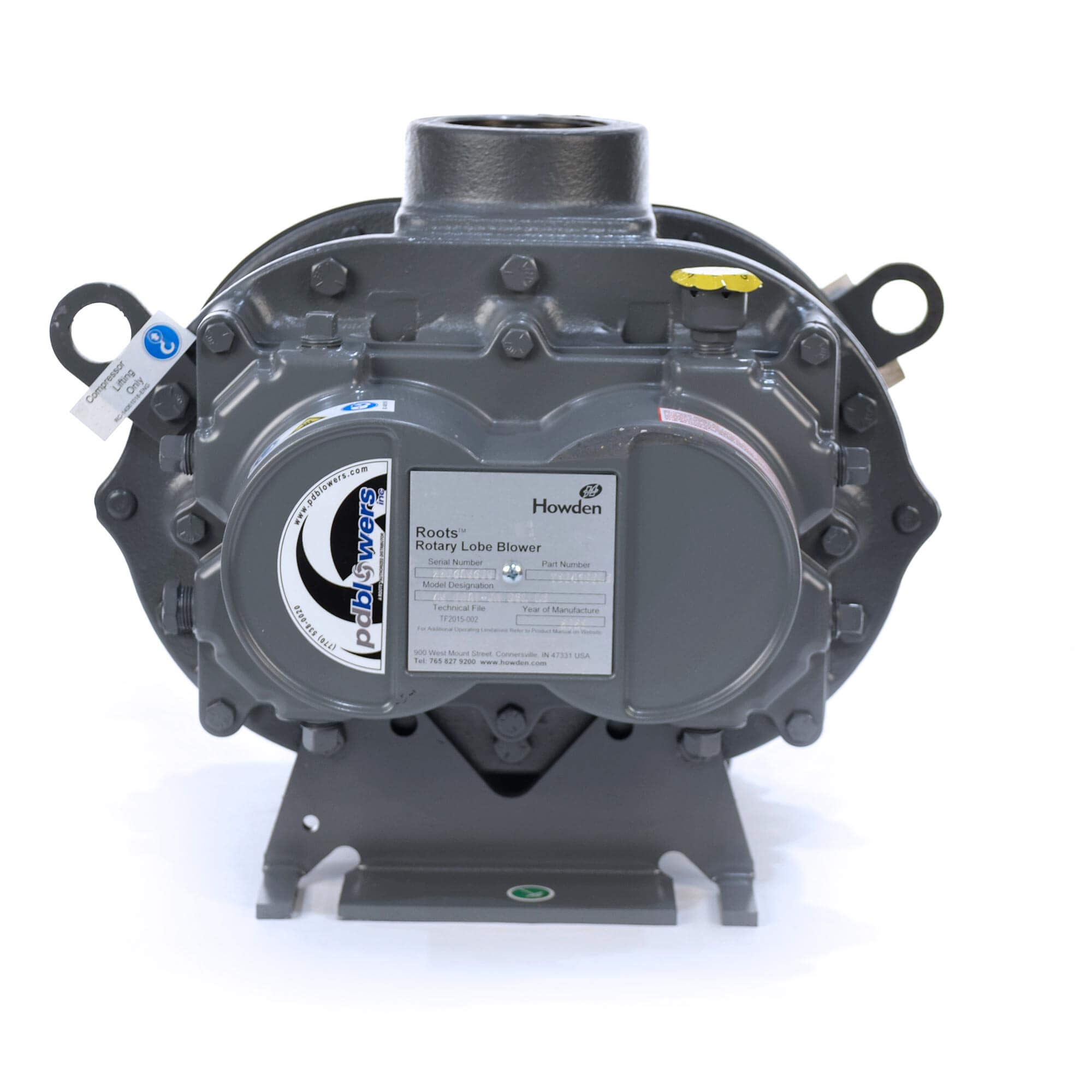

ROOTS™ 45 URAI-J-DSL WHISPAIR™ Rotary Positive Blower
$4,392.00
- Meets Build America Buy America Act requirements
| Shipping Weight: | 152 lbs |
|---|---|
| Shipping Dimensions: | 30 × 30 × 18 in |
| Max Flow | 395 |
| Max Pressure | 10 psi |
| Max Vacuum | 15" Hg |
| Max Speed | 3600 RPM |
| Manufacturer | Roots |
