Product Description
Roots Model 65 URAI DSL
Flow Range: to 526 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Max RPM: 2350
Min RPM: 636
Max ΔT: 250˚F
Connection: 3″ FPT
Shaft Dia.: 1.375″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil Gear End Horizontal Unit: 52.1 ounces
Required Oil Drive End Horizontal Unit: 31 ounces
Required Oil Gear End Vertical Unit: 28.3 ounces
Required Oil Drive End Vertical Unit: 16 ounces
Unit Weight: 250 pounds (113.6 kg)
Shipping Skid Size (LxWxH): 32″x29″x31″ (813mmx737mmx787mm)
Shipping Container: Wood skid, open, blower lagged to skid

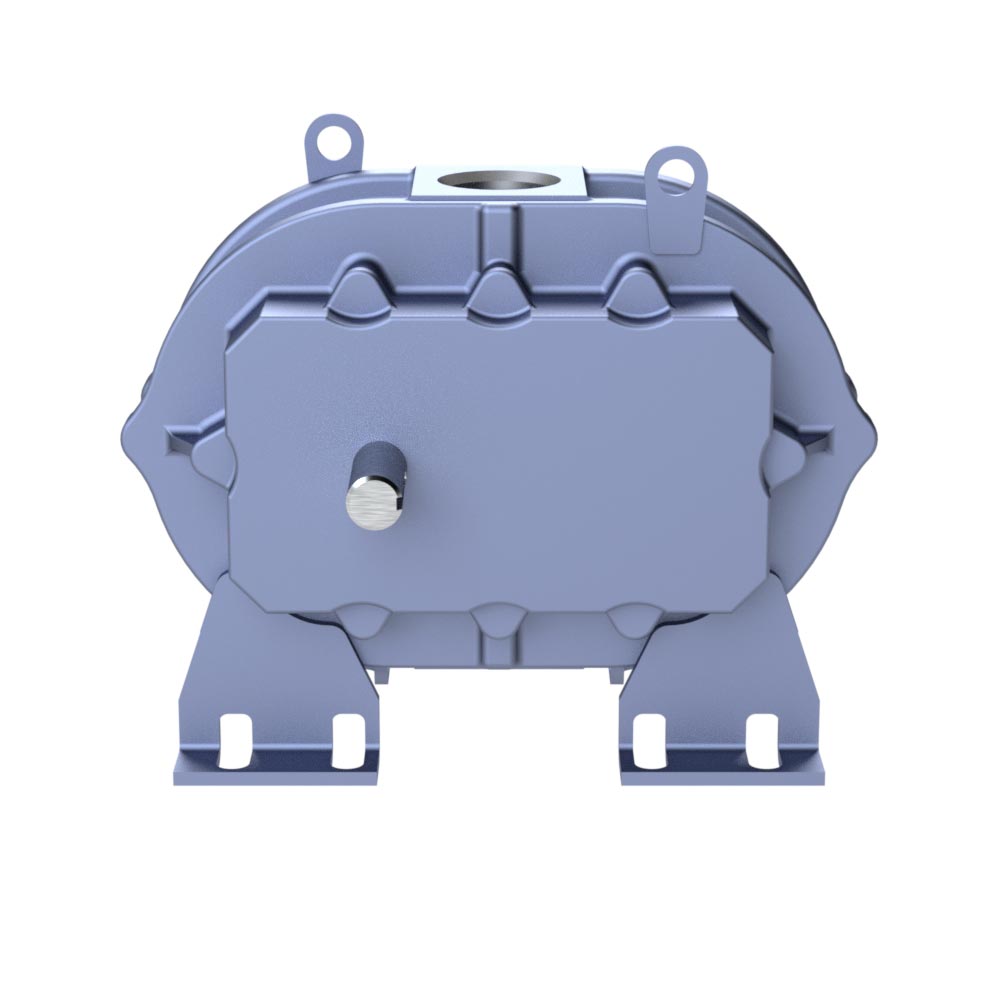

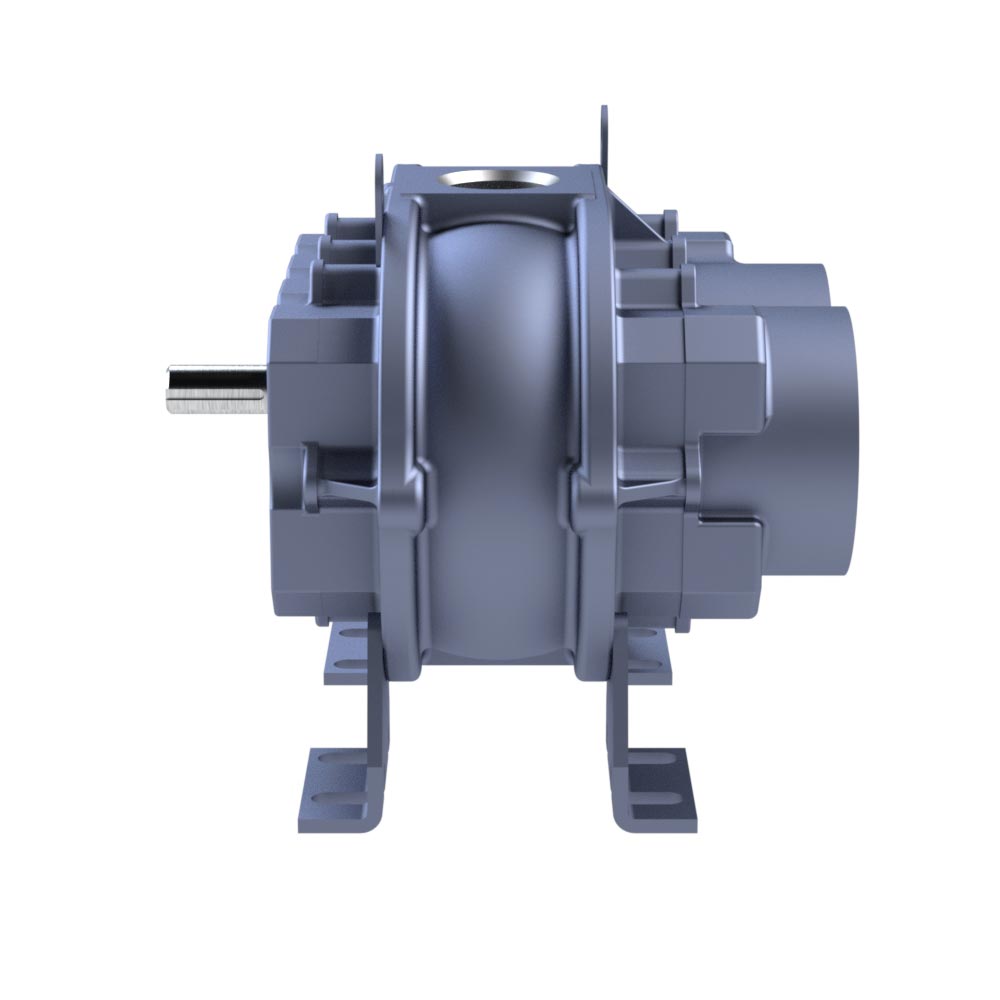

Roots 65 Universal RAI® DSL Rotary Positive Displacement Blower
$7,818.00
- Meets Build America Buy America Act requirements
| Shipping Weight: | 300 lbs |
|---|---|
| Shipping Dimensions: | 32 × 29 × 28 in |
| Max Flow: | 526 |
| Max Pressure: | 15 psi |
| Max Vacuum: | 16" Hg |
| Max Speed: | 2350 RPM |
| Manufacturer: | Roots |
