Product Description

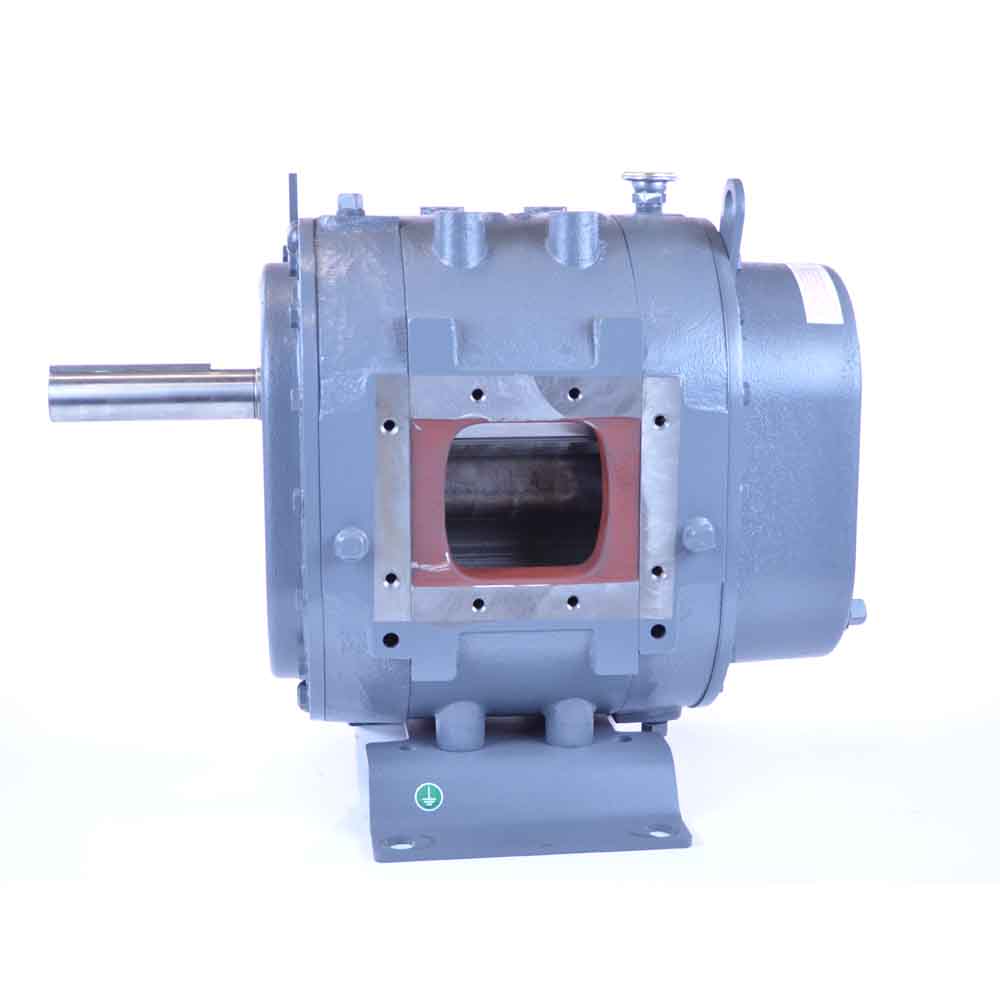

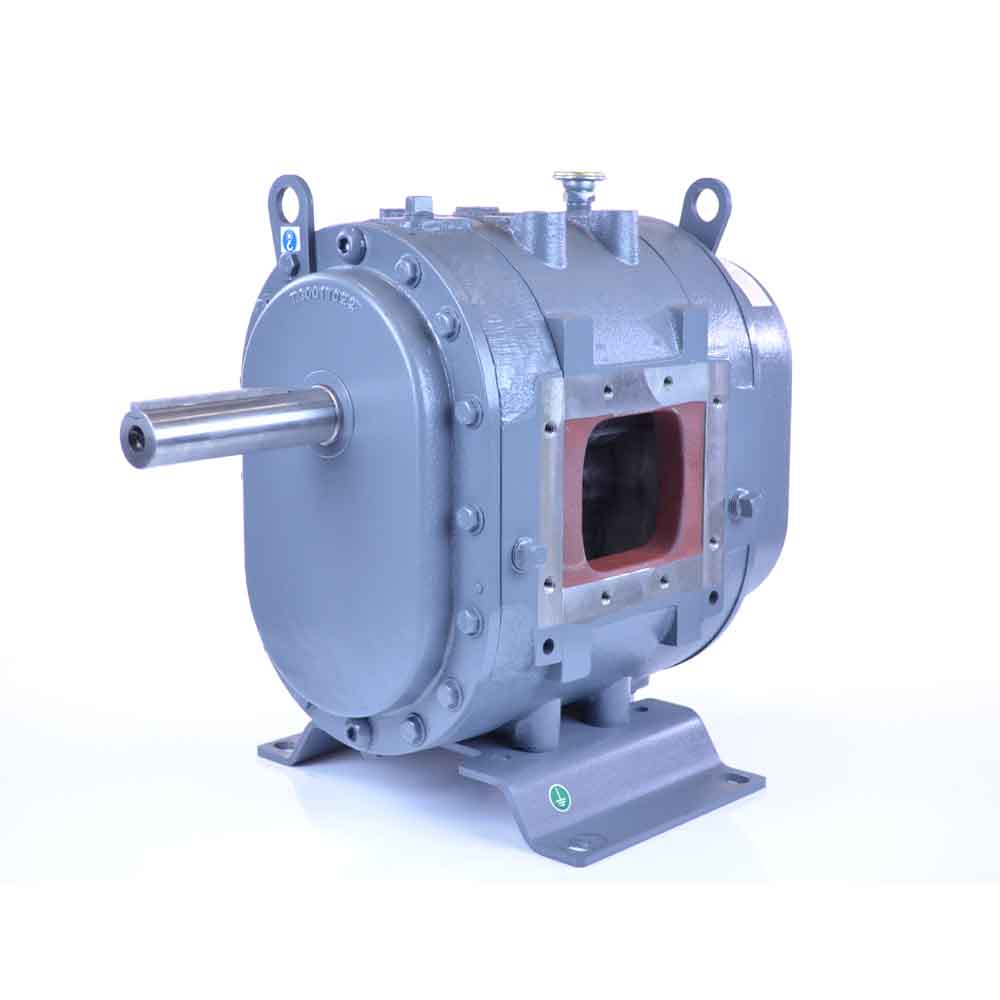

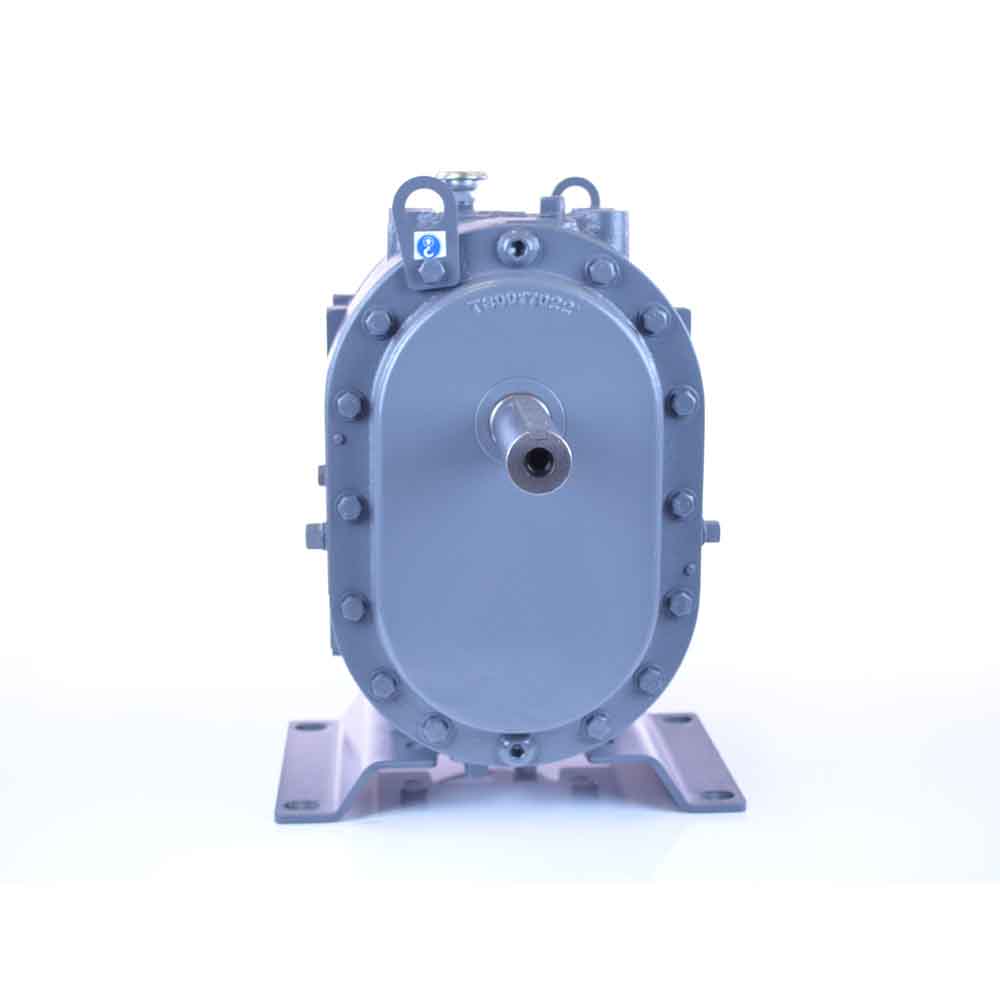

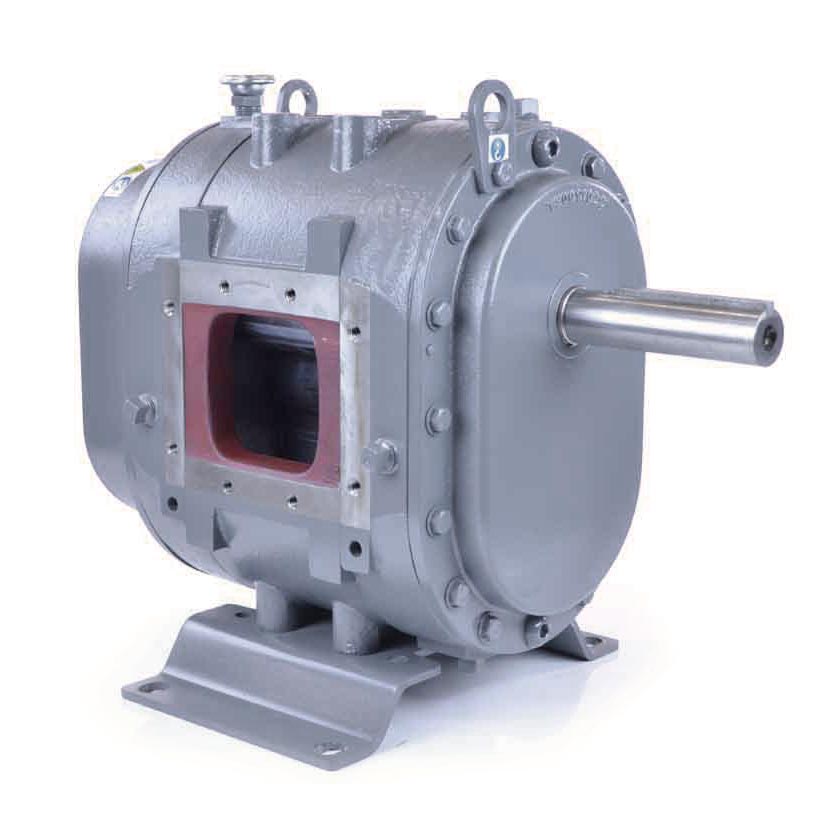

ROOTS FLO Blower Frame 406
Flow Range: to 600 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 4000
Minimum RPM: 850
Max ΔT: 275˚F
Connection: Bolt on Adapter (T30030021)
Shaft Dia.: 1.4375
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil for Horizontal Unit: 50 ounces
Required Oil for Vertical Unit: 30 ounces
Unit Weight: 275 pounds (125 kg)
Shipping Container: Skid 32″ x 29″ x 25″ (LxWxH)
Weight with skid is 298 lbs (135.5 Kg)

DuroFlow® 45 Series Equivalent 4506
BJI Equivalent A46

ROOTS BOM# T3032302

Common Carrier is recommended for the ROOTS FLO Blower

View all of our ROOTS FLO Blowers

ROOTS FLO Blower 406

BOM Number: T3032302 SKU: N/A Category:

$4,968.00

Max Flow: 600 CFM
Max Pressure: 15 psi
Max Vacuum: 16″Hg
Max Speed: 4000 RPM

Shipping Weight: N/A
Shipping Dimensions: N/A
Max Flow:

600

Max Pressure:

15 psi

Max Vacuum:

16" Hg

Max Speed:

4000 RPM

Manufacturer:

Howden Roots
