Important Notes:
2023: The TRI-RAM models are no longer available in bottom hand drive configurations. If you require a bottom drive please contact us to discuss.
2021: This unit was redesigned in 2021. The previous design had rectangular connections that required flange adapters. The new version has integral DIN flanges built in.
Click here for information and photos of the previous obsolete design.Flow Range: to 1412 CFM
Max Δ Pressure: 12 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 4450
Minimum RPM: 850
Max ΔT: 240˚F
Inlet Connection: 200mm
Discharge Connection: 150mm
Shaft Dia.: 35mm
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Weight: 470 lbs
Includes detachable rugged steel mounting feet.
The Tri-RAM 416 is a replacement unit for the discontinued RAMX 280

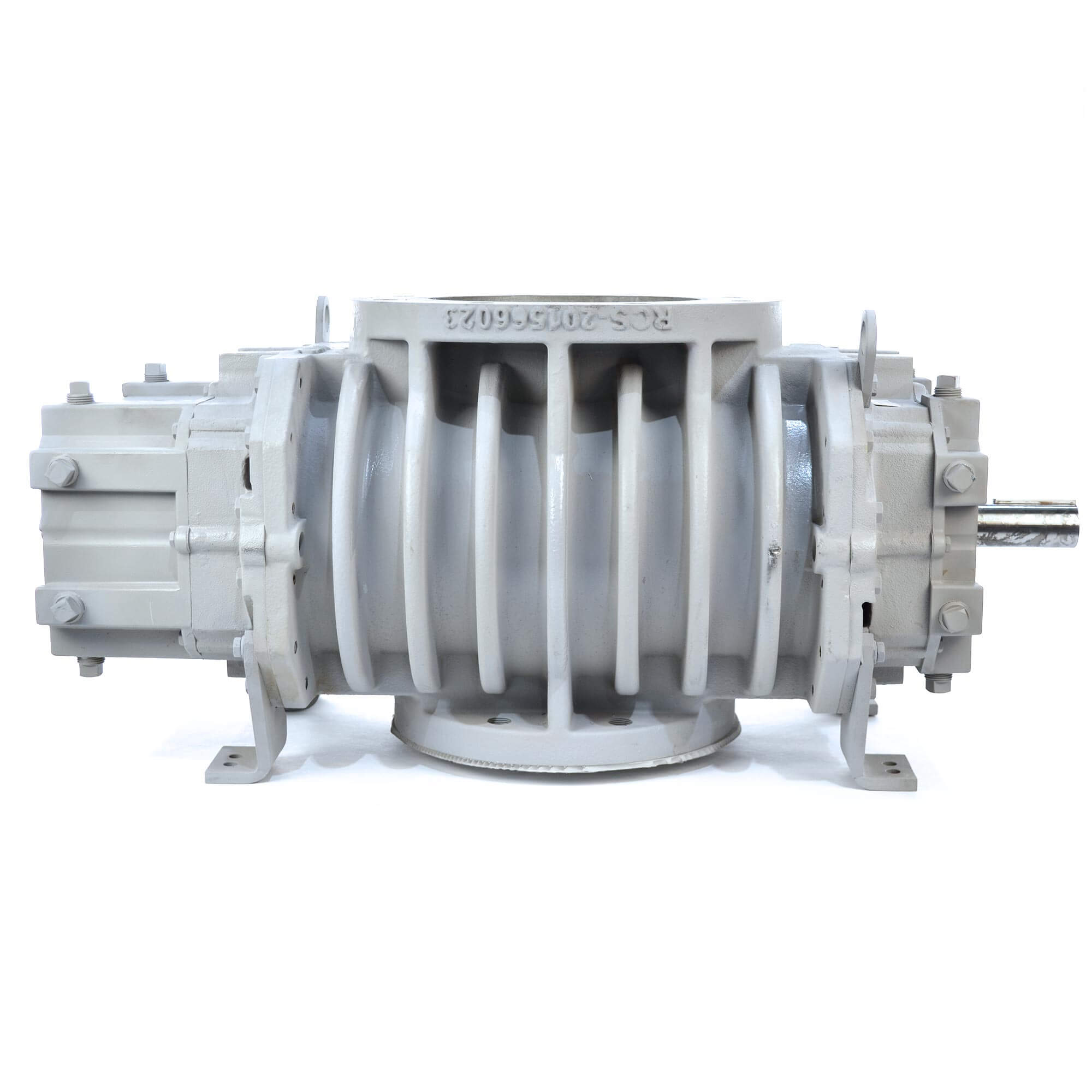

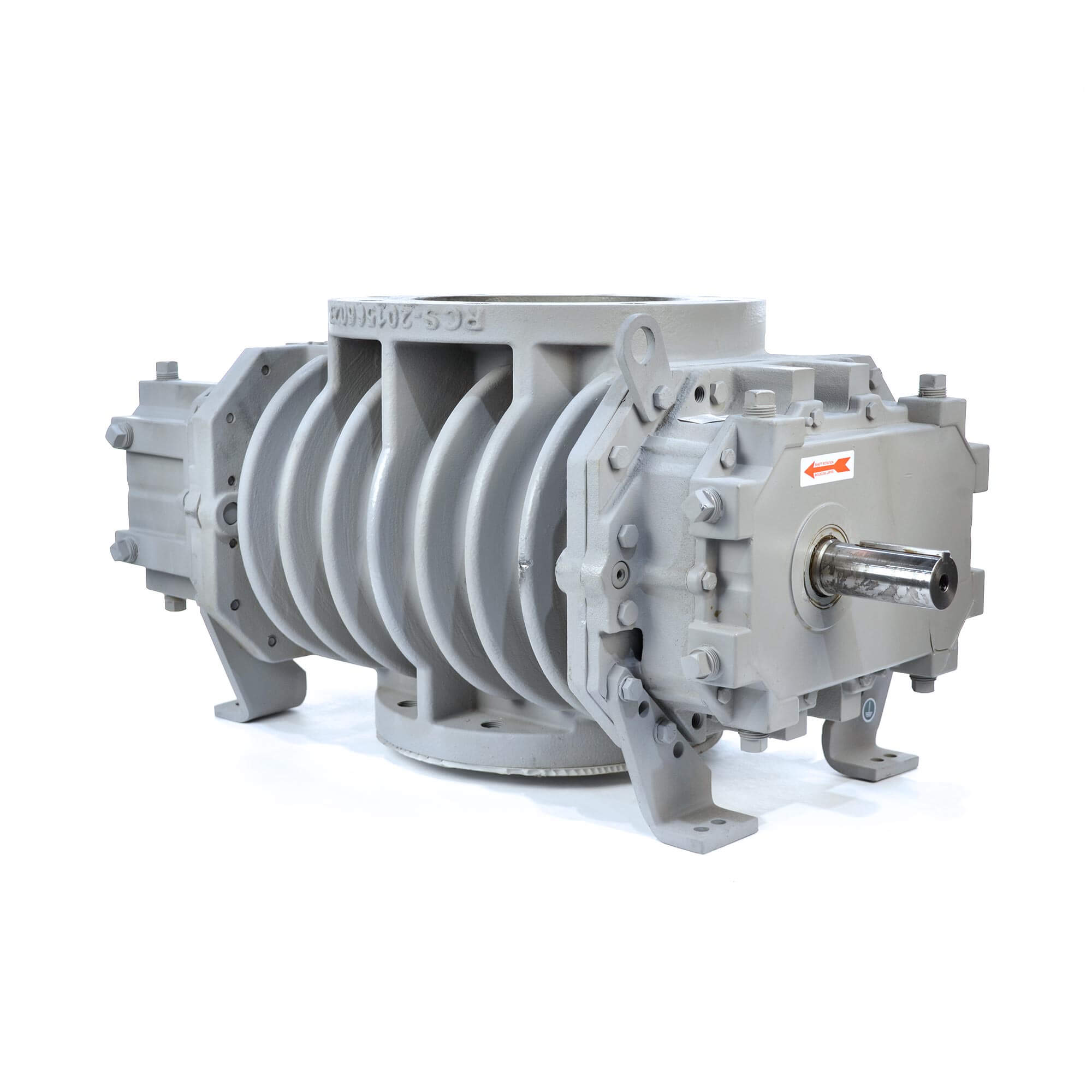

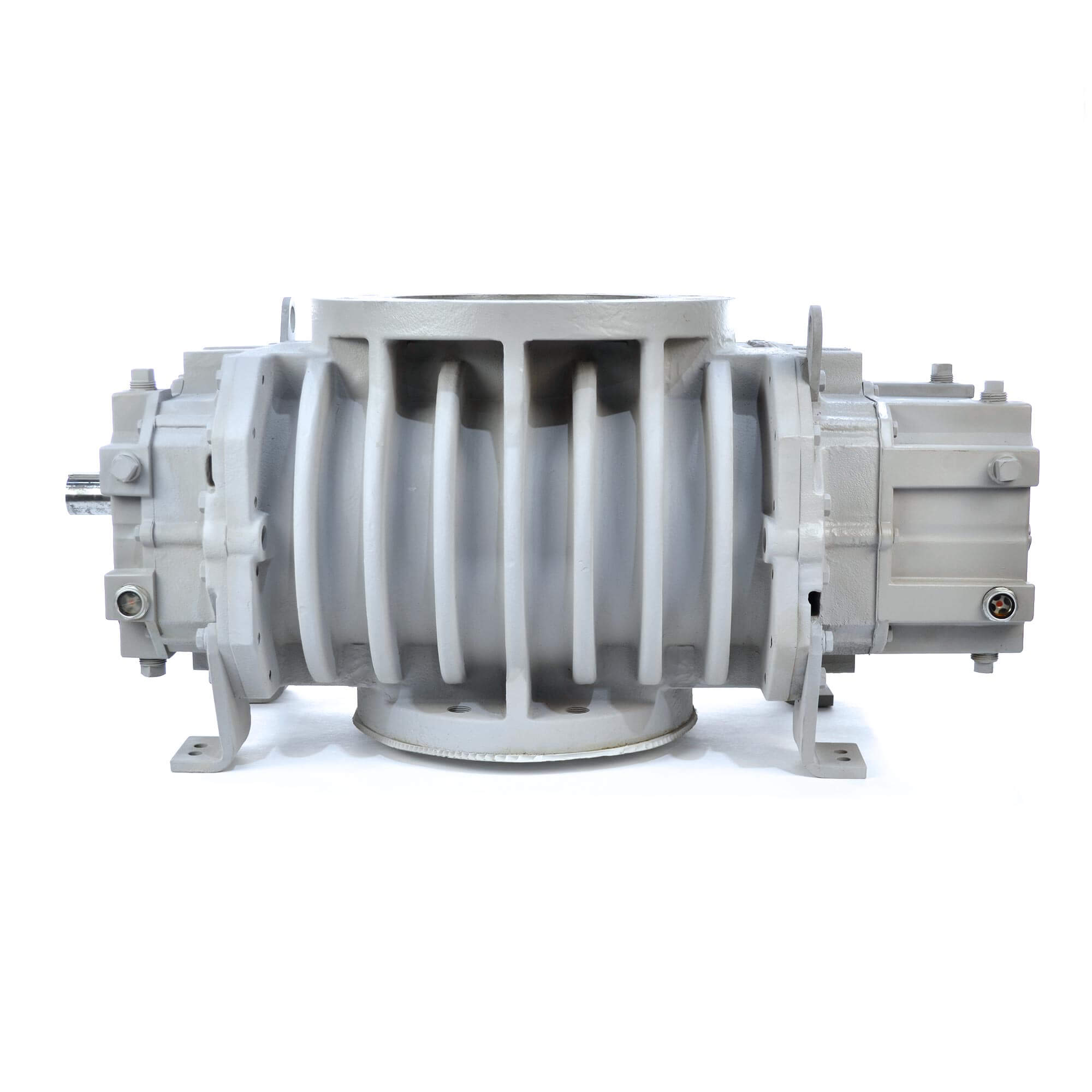

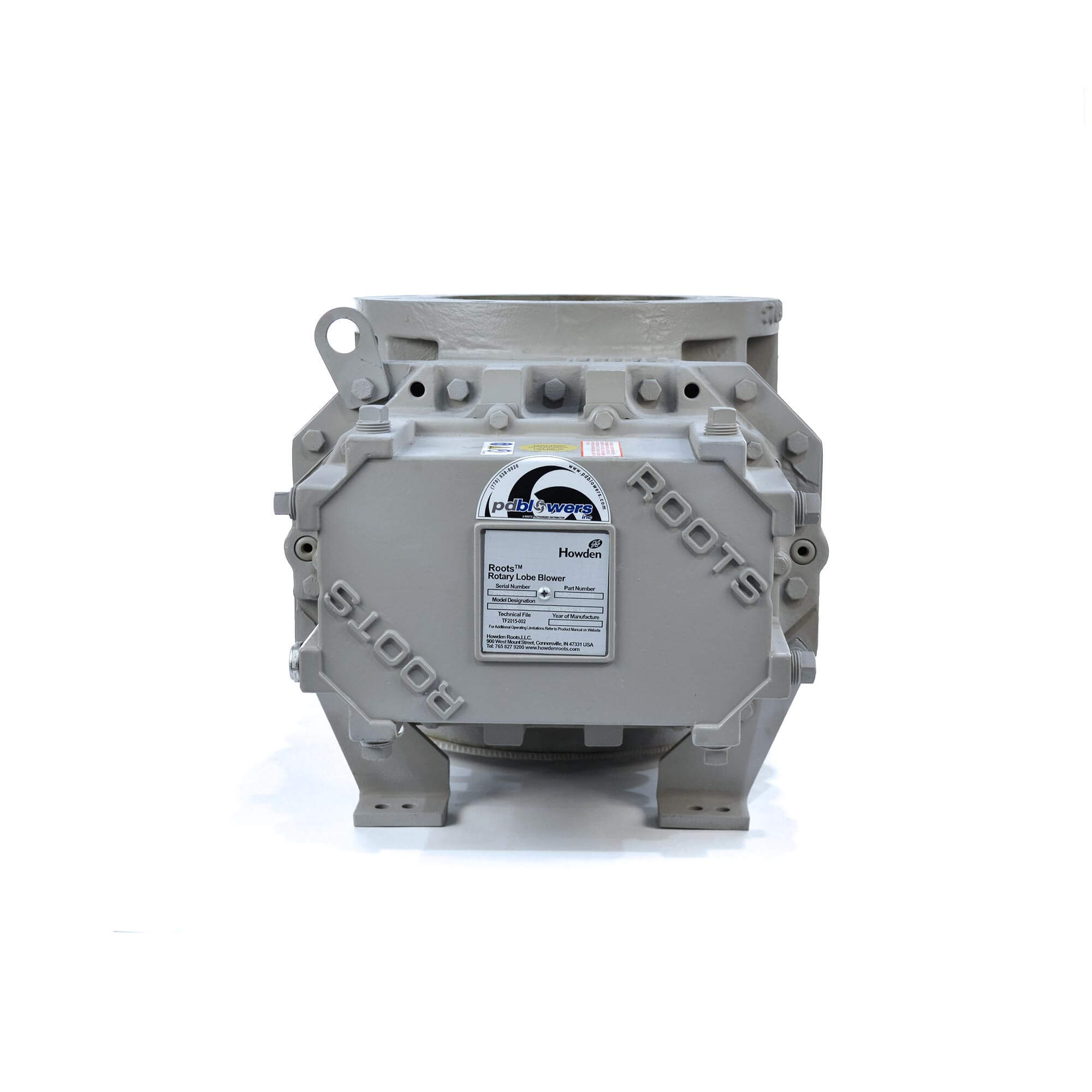

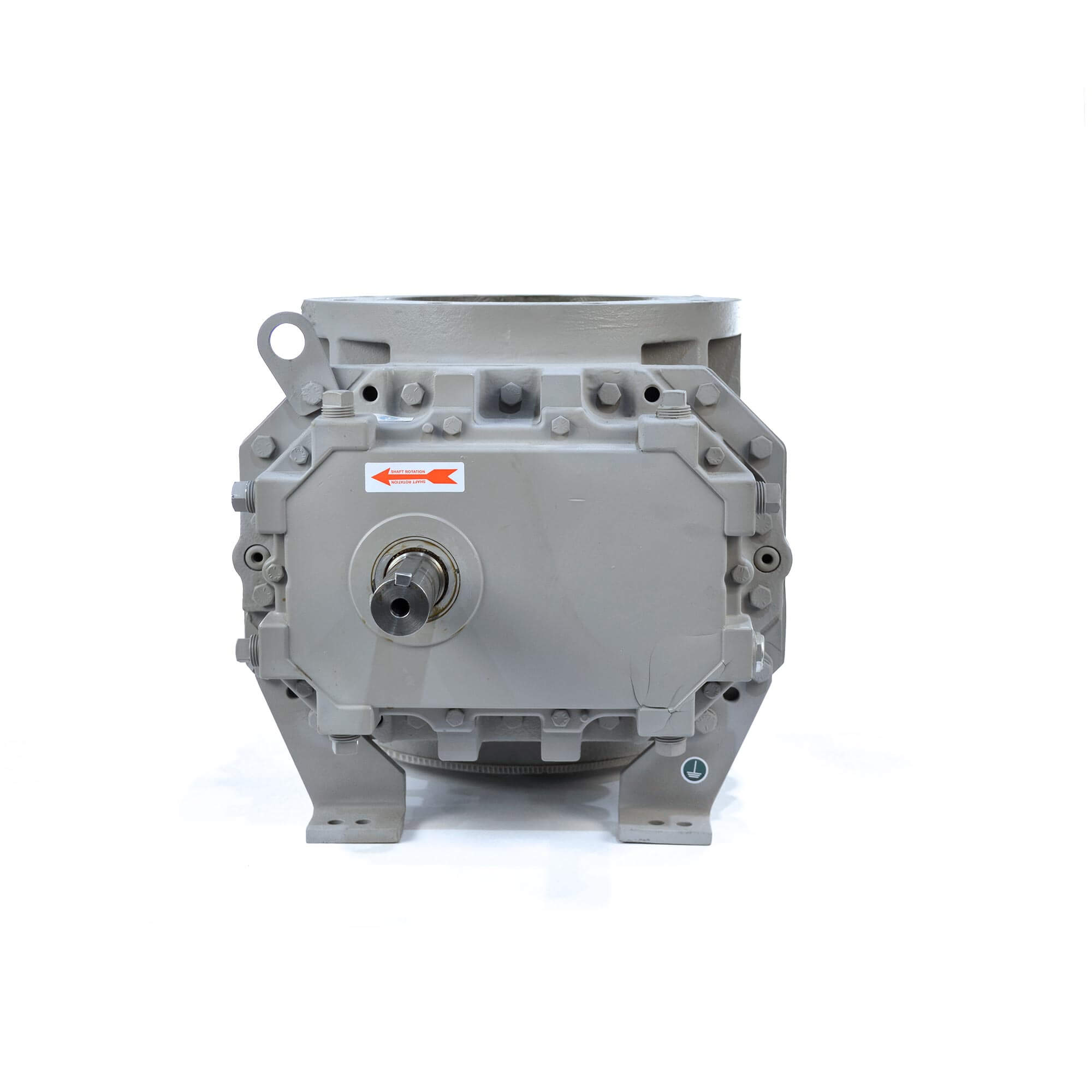

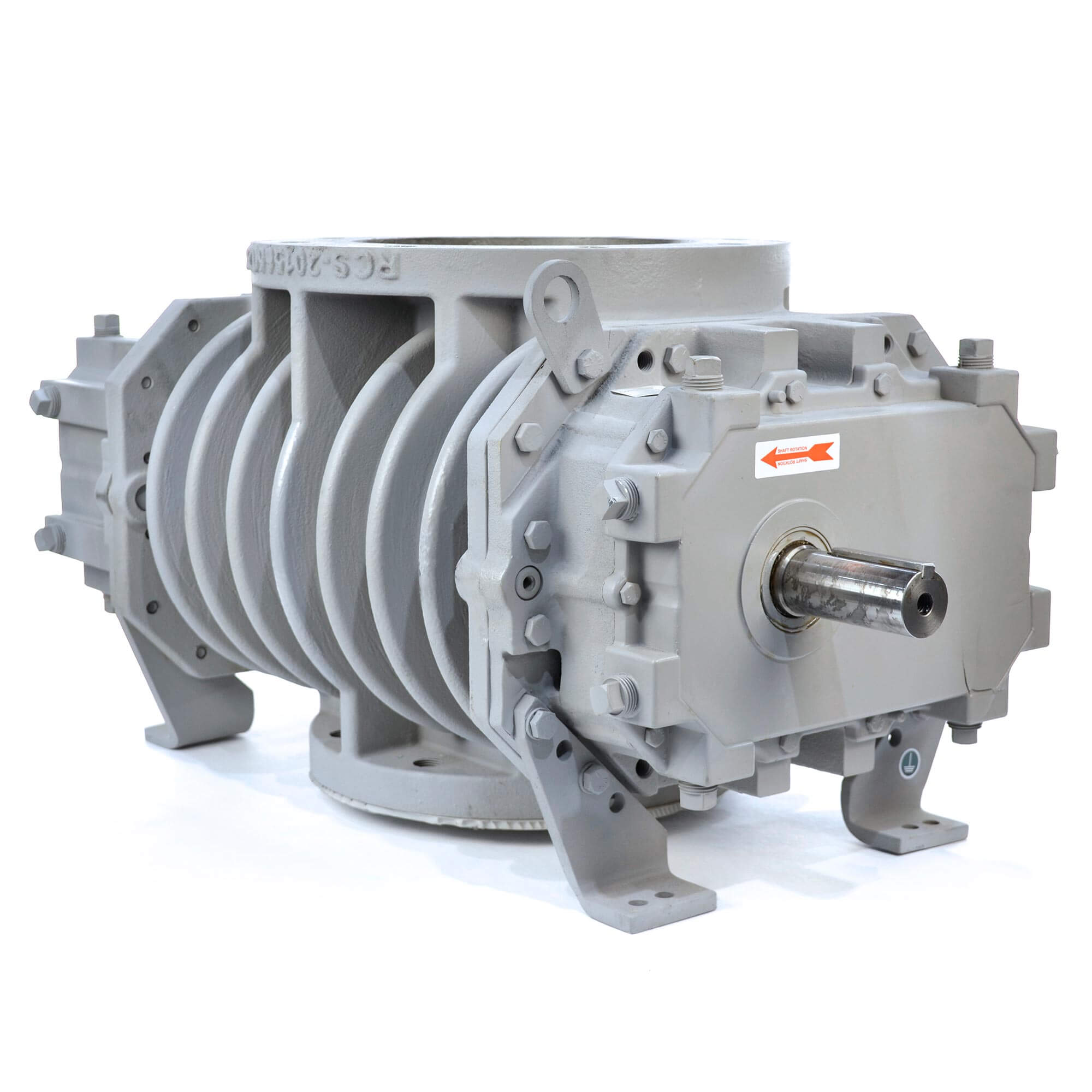

ROOTS Tri-RAM Model 416
$14,421.00 – $15,921.00
The Tri-RAM 416 is a replacement unit for the discontinued RAMX 280. Please note this is not a drop-in replacement and modifications to your system may be required.
| Shipping Weight: | 530 lbs |
|---|---|
| Shipping Dimensions: | 42 × 29 × 30 in |
| Max Speed: | 4450 RPM |
| Max Pressure: | 12 psi |
| Manufacturer: | Roots |
| Max Flow: | 1412 CFM |
| Max Vacuum: | 16" Hg |
