Product Description

Flow Range: to 3312 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 3050
Minimum RPM: 545
Max ΔT: 230˚F
Connection: Rectangular or 10″ Flange
Shaft Diameter: 60mm
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Weight: 1485 lbs

Optional detachable rugged steel mounting feet and adapters for inlet and discharge. If ordering a new unit, feet and adapters are typically needed. Replacement units are ordered without feet or adapters when the feet and adapters are already installed in the system.

The Tri-RAM 722 is a replacement unit for the discontinued RAMX 500

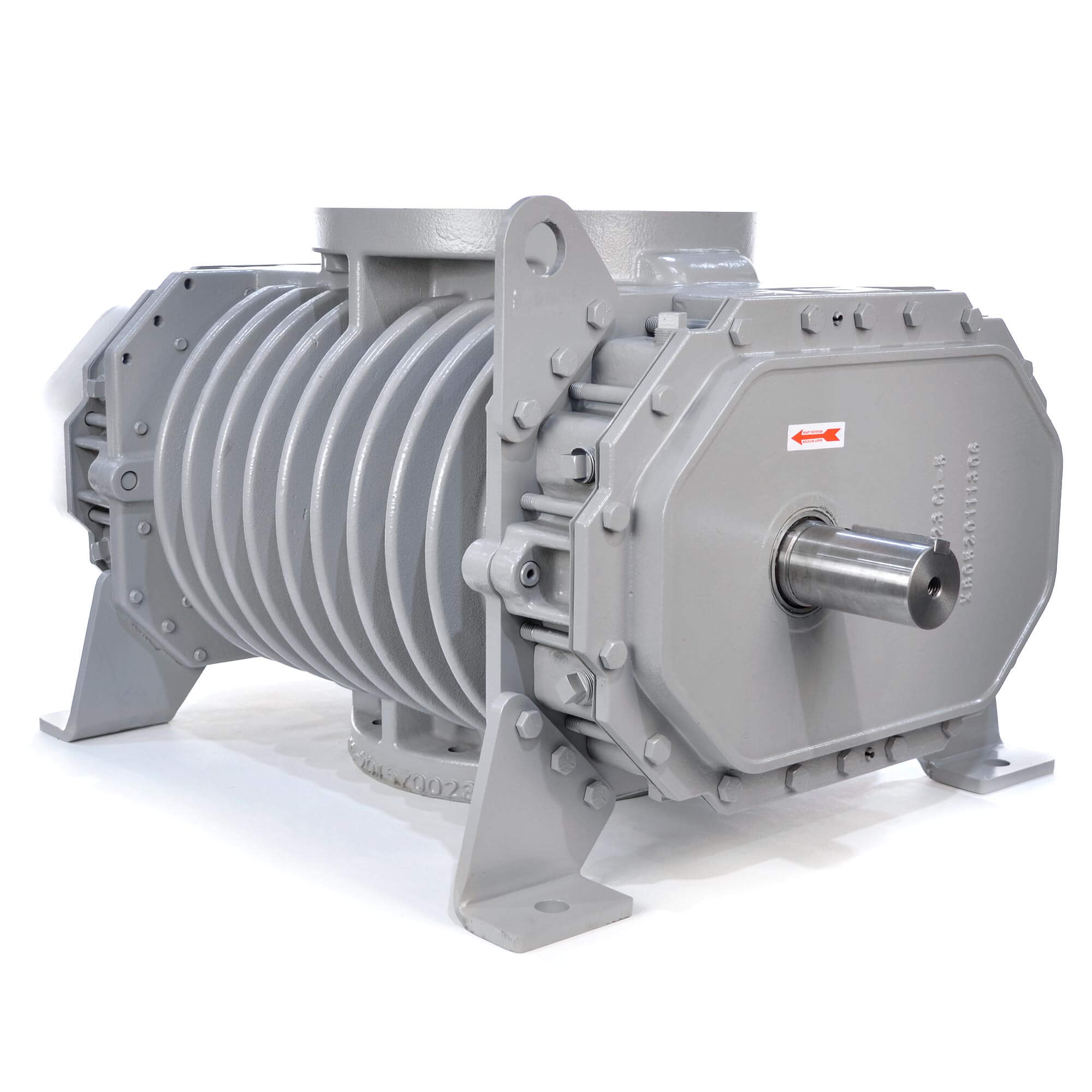

ROOTS Tri-RAM Model 722

BOM Number: RH-2054140, RH-2054150 SKU: N/A Category:

$19,808.00$21,928.00

The Tri-RAM 722 is a replacement unit for the discontinued RAMX 600

Shipping Weight: 1705 lbs
Shipping Dimensions: 76 × 60 × 40 in
Max Speed:

3050 RPM

Max Pressure:

15 psi

Manufacturer:

Howden Roots

Max Flow:

3312 CFM

Max Vacuum:

16" Hg
