Important Notes:
2023: The TRI-RAM models are no longer available in bottom hand drive configurations. If you require a bottom drive please contact us to discuss.
2021: This unit was redesigned in 2021. The previous design had rectangular connections that required flange adapters. The new version has integral DIN flanges built in.
Click here for information and photos of the previous obsolete design.Flow Range: to 4152 CFM
Max Δ Pressure: 12 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 3050
Minimum RPM: 545
Max ΔT: 240˚F
Inlet Connection: 300mm
Discharge Connection: 250mm
Shaft Dia.: 60mm
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Weight: 1540 lbs
Includes detachable rugged steel mounting feet.
The Tri-RAM 728 is a replacement unit for the discontinued RAMX 770

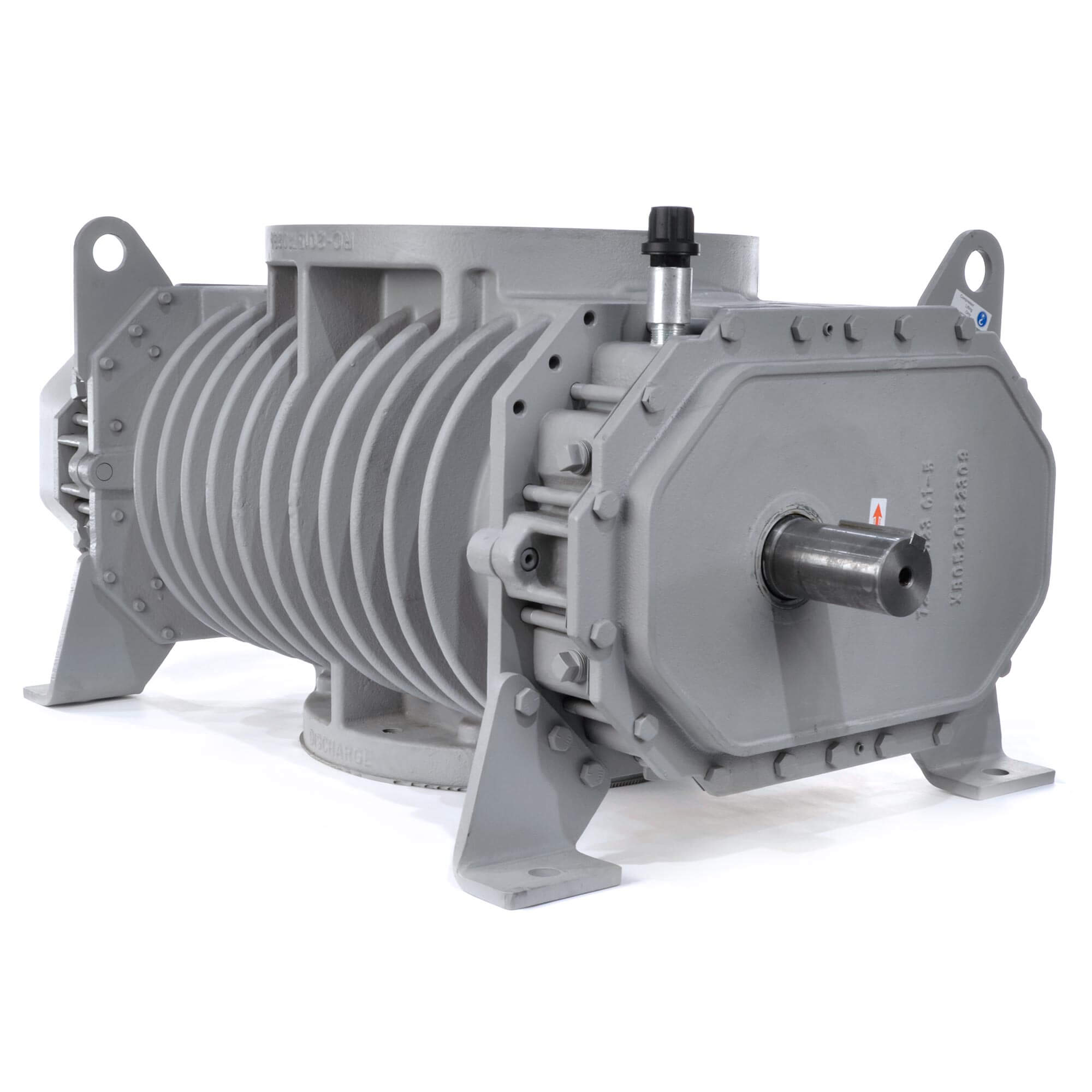

ROOTS Tri-RAM Model 728
$32,743.00 – $34,243.00
The Tri-RAM 728 is a replacement unit for the discontinued RAMX 770. Please note this is not a drop-in replacement and modifications to your system may be required.
| Shipping Weight: | 1640 lbs |
|---|---|
| Shipping Dimensions: | 76 × 60 × 42 in |
| Max Speed: | 3050 RPM |
| Max Pressure: | 12 psi |
| Manufacturer: | Roots |
| Max Flow: | 4152 CFM |
| Max Vacuum: | 16" Hg |
