Product Description

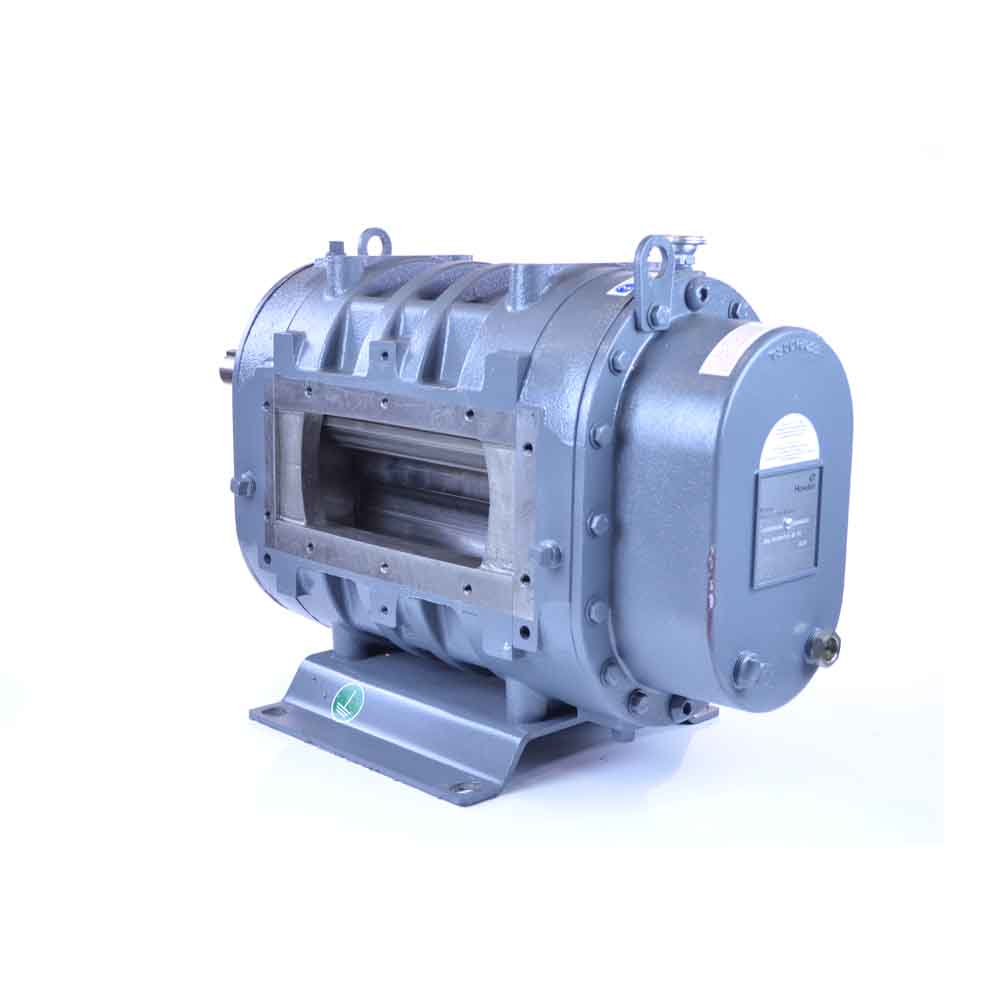

ROOTSFLO® Frame 412 Displacement Blowers
Flow Range: to 1207 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 4000
Minimum RPM: 850
Max ΔT: 275°F
Connection: Bolt on Adapter (T30033022)
Shaft Dia.: 1.4375
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil for Horizontal Unit: 50 ounces
Required Oil for Vertical Unit: 30 ounces
Unit Weight: 330 pounds (150 kg)
Shipping Container: Skid 42″ x 29″ x 25.5″ (LxWxH)
Weight with skid is 405 lbs (184 kg)
DuroFlow® 45 Series Equivalent 4512
BJI Equivalent A412
ROOTS BOM# T3032502
Common Carrier is recommended for all ROOTSFLO Displacement Blowers
ROOTSFLO 412 Displacement Blowers
$12,362.00
| Shipping Weight: | 405 lbs |
|---|---|
| Shipping Dimensions: | 42 × 29 × 23 in |
| Max Flow | 1207 CFM |
| Max Pressure | 15 psi |
| Max Vacuum | 16" Hg |
| Max Speed | 4000 RPM |
| Manufacturer | Roots |
