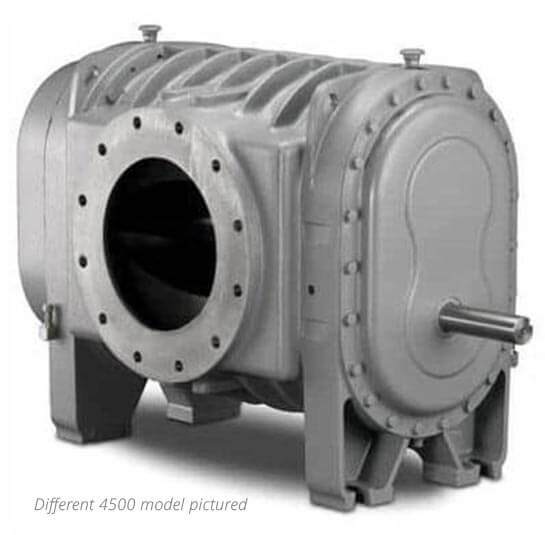

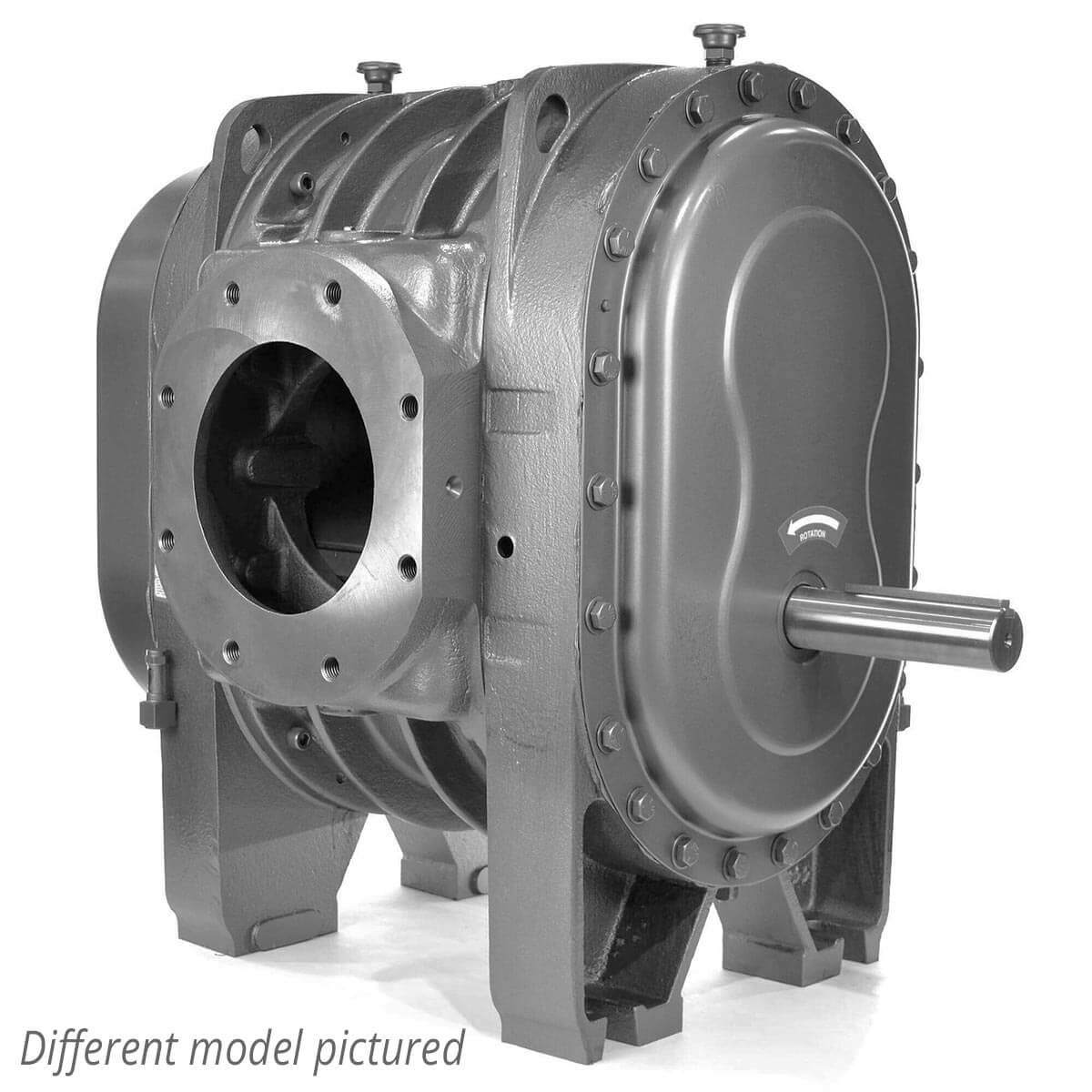

Model 716 Sutorbilt 4500 Series Blower

Gardner Denver’s Sutorbilt 4500 Series Positive Displacement Blowers are large units rated for continuous duty in all industrial applications. They feature grip rings instead of conventional timing hubs that expand against the bore of the gear and contract on the shaft, ensuring the timing gears are mounted square for minimum wear and maintain their proper clearance.  These models can also be purchased with mechanical seals for gas service applications.

Sutorbilt 716-4500

Flow Range: to 2298 CFM
Max ΔPressure: 8 PSI
Max ΔVacuum: 16″ Hg
Maximum Speed: 2440 RPM
Minimum Speed: 818 RPM
Max Discharge Temp: 325° F
Connection Size: 10″ FLG
Shaft Diameter: 1.75″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil for Horizontal Unit: 6 US Quarts (5.7 Liter)
Required Oil for Vertical Unit: 3.5 US Quarts (3.3 Liter)
Unit Weight: 940 lb

4500 Series Model Numbers
The model number can be found on a nameplate attached to the blower, typically at the gear end, and consist of 7 basic characters (4 additional characters could be appended at the end to indicate special options).

Standard 716-4500 model numbers: GDGCEAA, GDGCFAA, GDGCGAA, GDGCHAA, GDGCJAA, GDGCKAA, GDGCLAA, GDGCMAA
