Product Description

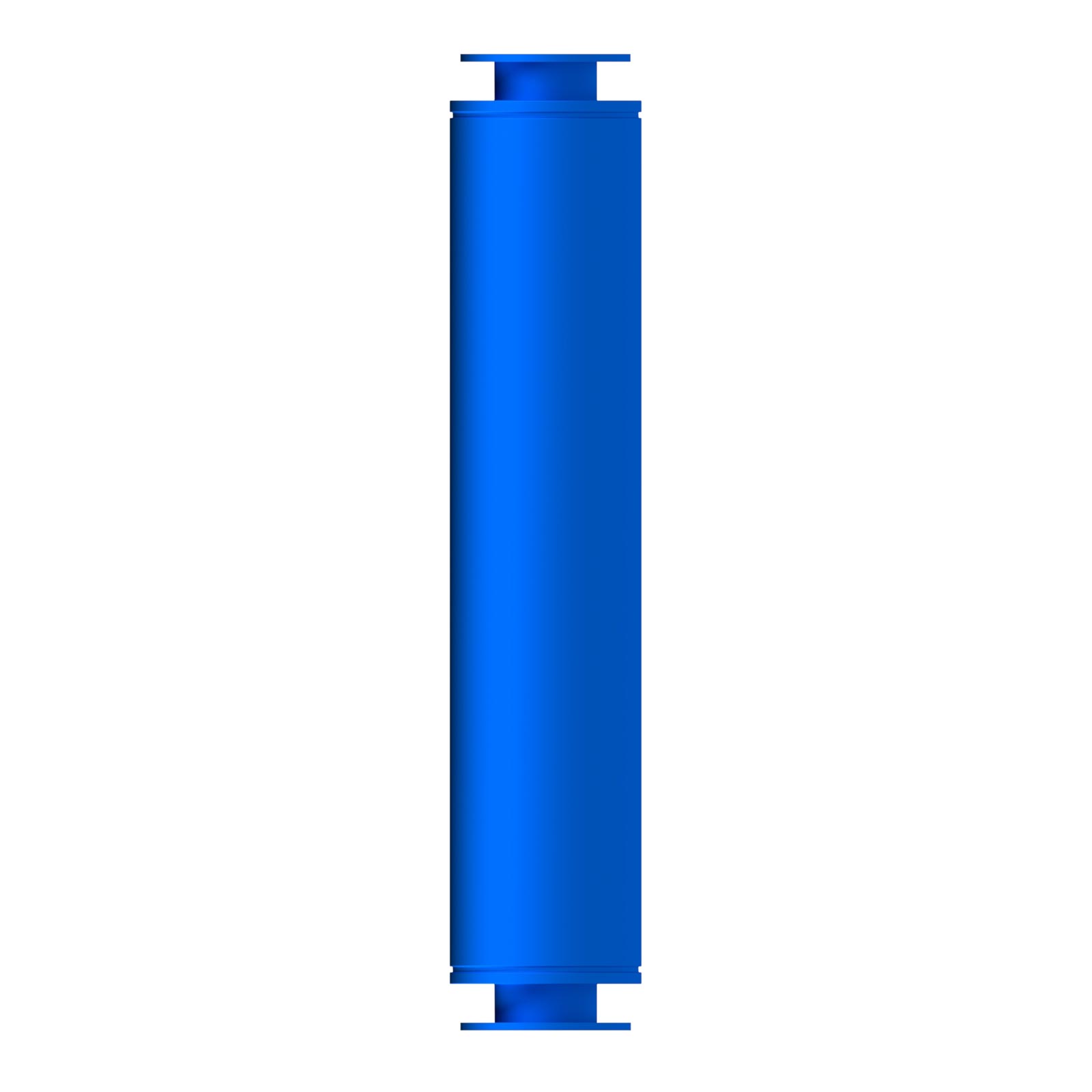

U5 5″ Absorptive Blower Silencers

The U5 series are high efficiency, straight-through absorptive silencers. They are well suited for inlet service on small rotary positive displacement blowers or the discharge of vacuum pumps.  Absorptive silencers are typically used for smaller, slower blowers like centrifugal blowers or fans.

The high length to diameter ratio provides better noise attenuation for high frequency noise sources. The U5 and SU5 series have similar attenuation characteristics:

This 5″ blower silencer is constructed from mild steel, with enamel paint.

Maximum flow: 2040 CFM
Maximum Temperature: 325 °F
Housing Diameter (ID): 10″
Connections: 5″ 125#/150# ANSI drilled flanges
Overall Length: 57″
Weight: 60 lbs
These blower silencers can be shipped via UPS.

Please note this is not a stocked item. Contact us for current lead times.

Absorptive Blower Silencers

The absorptive type silencer is the classic dissipative design, deriving its noise control properties from the basic fact that noise energy is effectively “absorbed” by various types of fibrous packing materials. More technically, as sound waves pass through the spaces between the tightly-packed small diameter fibers of the absorptive material, the resulting viscous friction dissipates the sound energy as small amounts of heat.

Absorptive silencers are very effective on high frequency noise (500-8,000 Hz). At frequencies above and below this range, attenuation performance progressively diminishes.

Since noise is absorbed by the packing media, absorptive silencers do not rely on internal baffles, tubes or other restrictive devices to achieve noise reduction. Consequently, absorptive silencers generally employ “straight-through” or similar internal designs which impose very little air flow restriction.

U5 5″ Absorptive Blower Silencer

BOM Number: 11-105-AA SKU: 32335 Category:

$757.15

Shipping Weight: 60 lbs
Shipping Dimensions: 57 × 10.5 × 10.5 in
Manufacturer:

Universal Silencer

Connection Type:

Threaded

Connection Size:

5" Flanged

Silencer Type:

Absorptive

Max Flow:

2040 CFM
