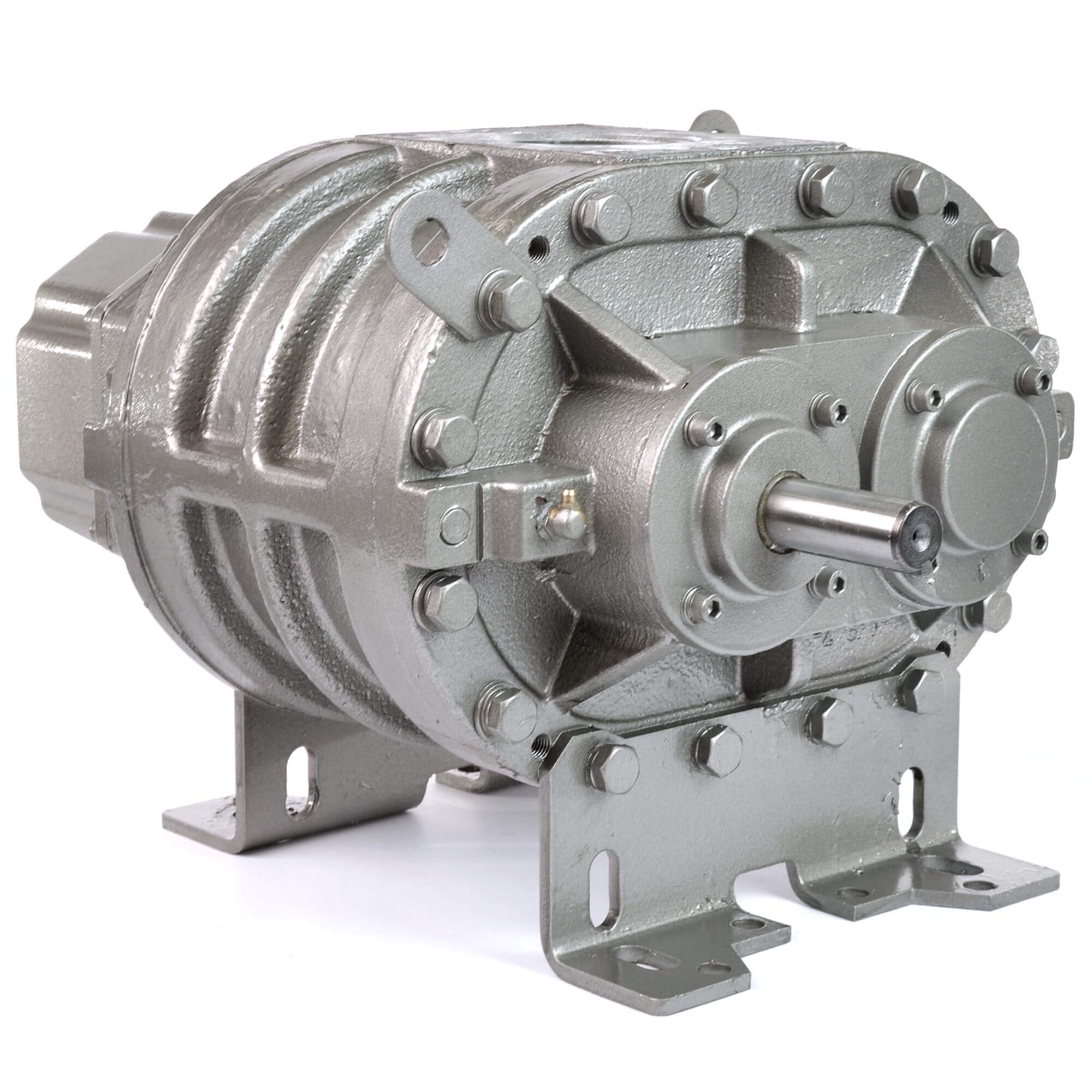

ZZ4M Blower
The ZZ4M Rotary Blower is a model in the Eurus Blower ZZ series.
pdblowers is a distributor and agent for Howden Roots, the largest manufacturer of positive displacement blowers. We offer repair and replacement services for the Eurus ZZ4M blower. Click here to learn more about ZZ4M Eurus blower repair.
The Roots equivalent for a Eurus ZZ4M is typically the Roots URAI 45, although it is always recommended to check your specific performance requirements when selecting a blower. A basic comparison of specs is below; for more information or to buy online, click here for the Roots 45 URAI blower.
Eurus ZZ4M vs Roots URAI 45
| Eurus ZZ4M | Roots URAI 45 | |
|---|---|---|
| Flow Range: | to 392 CFM | to 395 CFM |
| Max Δ Pressure: | 10 psi | 10 psi |
| Max Δ Vacuum: | 16″ Hg | 15″ Hg |
| Maximum RPM: | 3600 | 3600 |
| Minimum RPM: | 945 | 848 |
| Max ΔT: | 225˚F | 225˚F |
| Connection: | 2.5″ FPT | 2.5″ FPT |
| Shaft Dia.: | 0.875″ | 0.875″ |
| Drive End Lubrication: | Grease | Grease |
| Gear End Lubrication: | Oil | Oil |
| Required Oil for Gear End (Horizontal Unit): | 15.2 ounces | 22.8 ounces |
| Required Oil for Gear End (Vertical Unit): | 6.7 ounces | 12.7 ounces |
| Recommended Oil: | synthetic blower oil | Roots Synthetic |
| Recommended Grease: | lithium complex | aluminum complex |
| Unit Weight: | 132 lb | 109 lb |
| Mounting feet: | Universal | Universal |
| Configurations: | LHC, RHC, BHC, THC | LHC, RHC, BHC, THC |
*Mounting feet – Universal mounting feet allow the blower to be mounted in a horizontal or vertical position
**Configurations – This refers to the placement of the driveshaft and orientation of the blower. Click here for more information.
