At industrial and municipal wastewater treatment plants, aeration blowers are a critical component of the treatment process. Aerobic biodegradation is the natural process where bacteria use oxygen to break down organic materials in the sewage. Providing oxygen to these organisms stimulates their activity and growth, so aeration blowers are used to increase the oxygen content in the wastewater.
- Roots 36 URAI Positive Displacement Rotary Blower
- VersaBase 34 mounting base with Integral Belt Guard
- 7.5 HP, 1800 RPM Electric TEFC Motor
- Double Adjusting Motor Slide Base
- V-Belt Drive, minimum service factor of 1.4
- 2.5″ Inlet Filter/Silencer
- 2.5″ Chamber-Absorptive Discharge Silencer
- 2.5″ Discharge Flex Connector
- 2″ Spring Relief Valve, Set at 6 PSI
- 2.5″ MNPT Check Valve
- Pressure Gauge, 0-15 PSI
Operating Conditions:
– Inlet Volume: 157 ACFM (139 SCFM)
– Site Elevation: 371′
– Barometric Pressure: 14.5 PSIA
– Inlet Temperature: 100 °F
– Inlet Pressure Drop: 0.1 PSI
– Blower Inlet Pressure: 14.4 PSIA
– Discharge Pressure Drop: 0.2 PSI
– Discharge Pressure: 5.0 PSIG
– Blower Differential Pressure: 5.3 PSI
Performance Data:
– Design Speed: 2091 RPM
– Shaft Power: 5.3 BHP
– Discharge Temperature: 173 °F
– Differential Temperature: 73 °F
– Discharge Volume: 130 ACFM
– Estimated Noise Level: 84 dBa at 3 feet

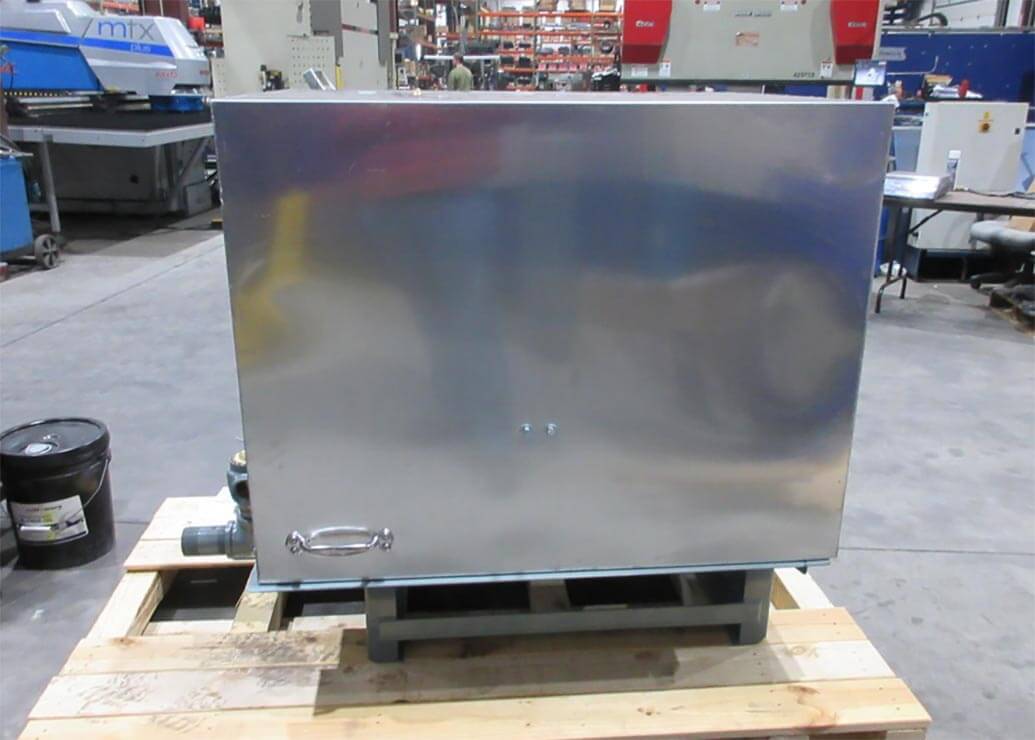

This project featured clamshell style, hinged aluminum enclosures that protect the equipment while still offering easy access for authorized personnel at the wastewater treatment plant. At pdblowers we offer a variety of enclosure styles whether you are looking to protect your equipment from the elements or reduce its noise output. The examples below show some of our most popular enclosure styles, but we can custom build any type of enclosure to meet your specific application needs.
