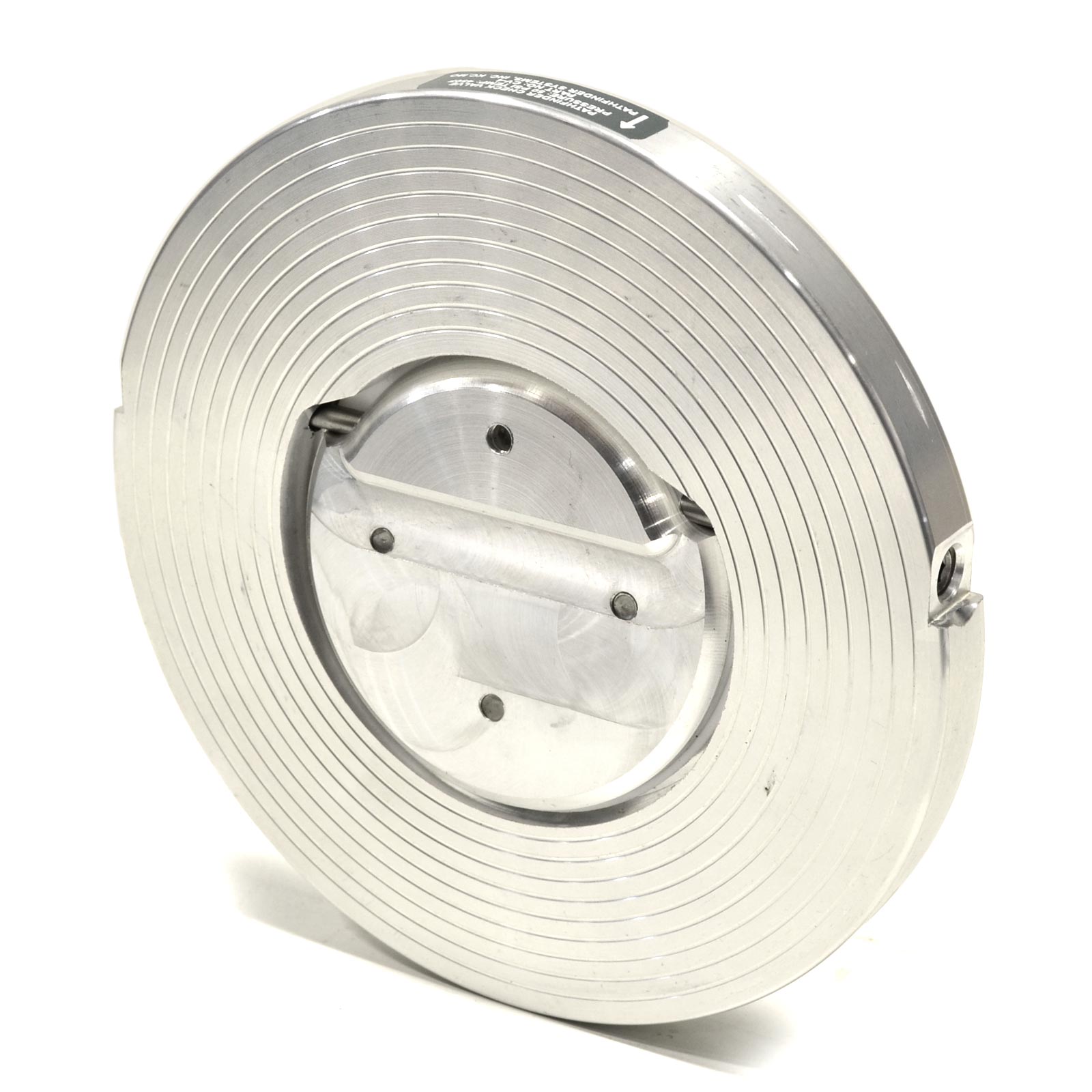

Aluminum Swing Check Valves
These lightweight 4″ check valves are an excellent choice to prevent flow from reversing in air and gas applications. Designed for installation between two flanges in a piping system, a balanced disc is hinged near the top of the disc which allows the disc to open with a minimum pressure differential.

• Dimensions: 6 7/8″ OD; 5/8″ thickness
• Weight: 2.1 lb
• Valve Design: Wafer style; fits between 150# flanges
• Body & Seat Material: High strength, lightweight, aluminum alloy body and seat with Type II anodization
• Trim Materials: One-piece 304 stainless steel thru hinge; 18-8 stainless steel screws
• Elastomer: Seal and stem bushings are PTFE / Teflon elastomer; rated to 450°F
• Maintenance: No regular maintenance needed; seat can be easily replaced as needed

Worry-Free Operation
This design is ideal for pneumatic and bulk material handling industries where process material could potentially be in the line.  Particles moving backwards in the system can damage elastomer-hinged valves—leading to valve failure—but this swing design has a stainless steel thru hinge for the utmost durability.  The aluminum body and seat have type II anodization to provide corrosion resistance and wear protection.  Should you wish to do preventative maintenance at any time, the valve seat can be easily replaced.

Made in America
This 4″ valve is manufactured from domestic materials at the pdblowers headquarters in Gainesville, GA and is compliant with the Build America, Buy America (BABA) Act.

Minimal Space Requirement

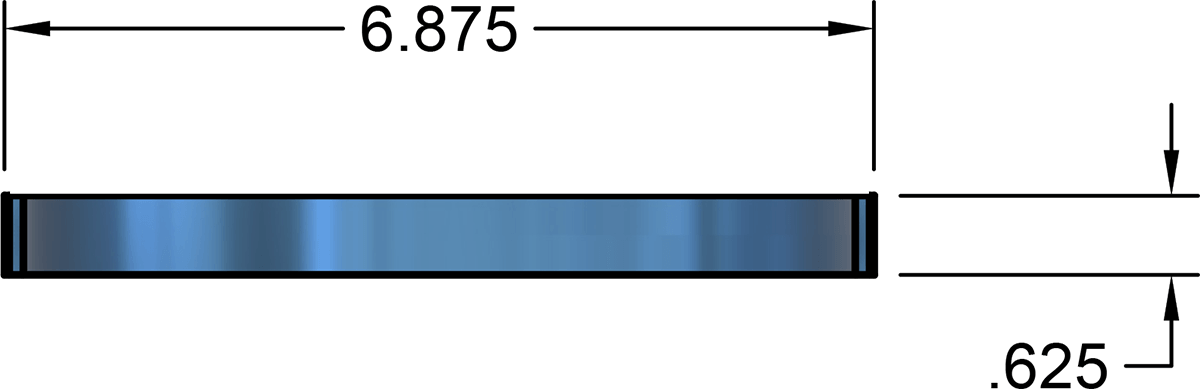

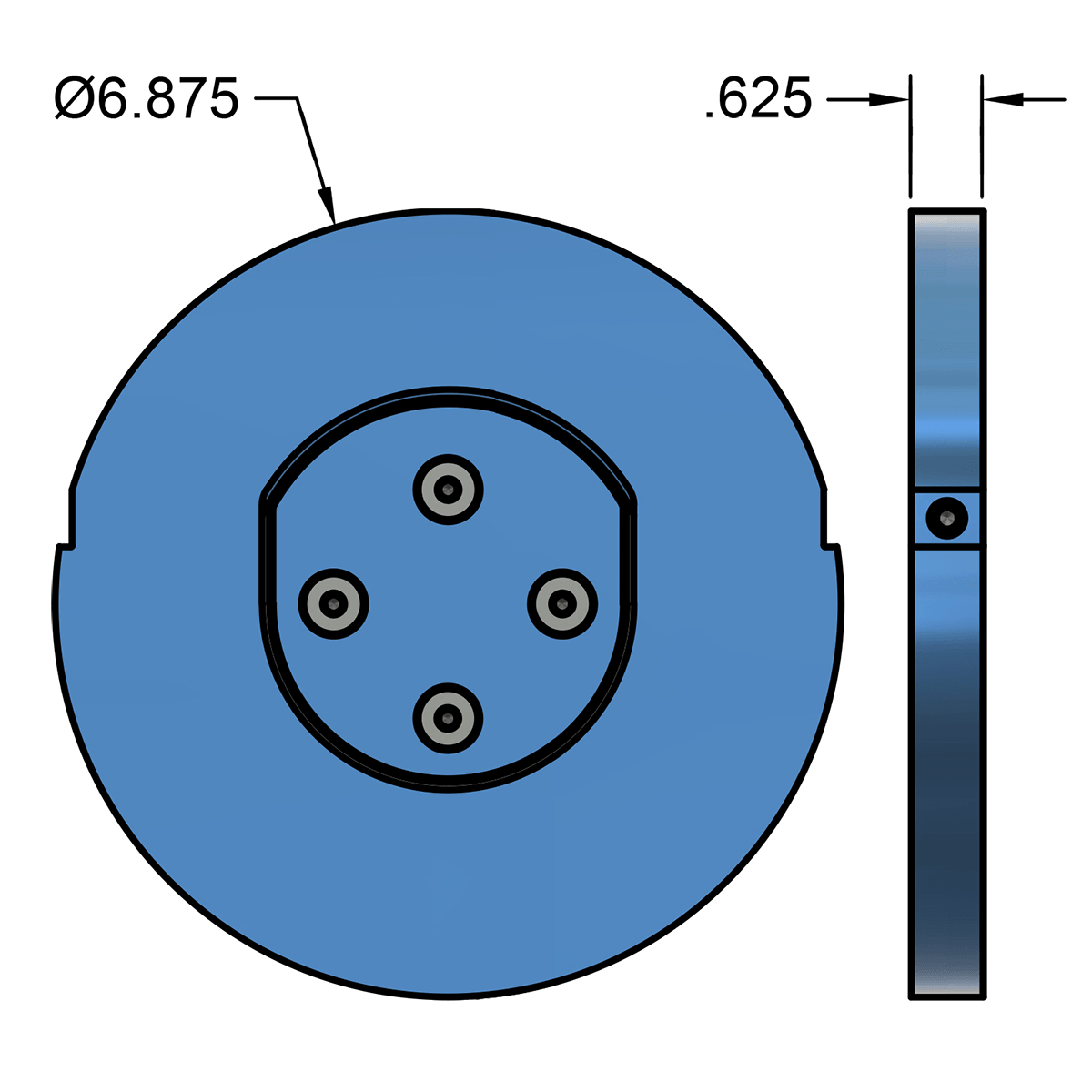

The 4″ Swing Check Valve has an outer diameter of 6 7/8″ and thickness of 5/8″.  It is typically mounted between 150# flanges in the piping, after the blower and discharge silencer.

Operation

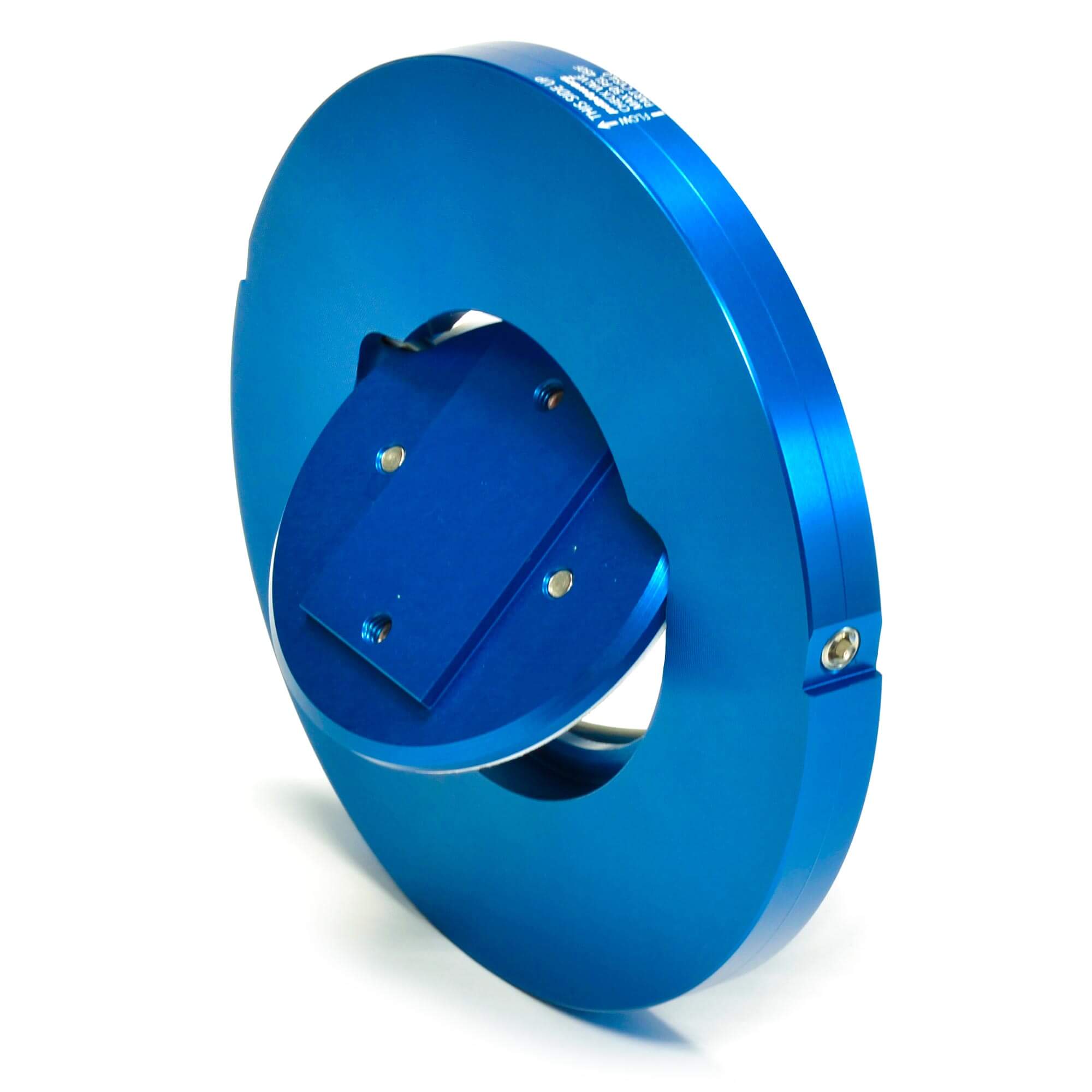

When airflow is passing through the piping system in the correct direction, the positive pressure pushes the valve open allowing air to flow through.  If there is no positive flow, the valve disc falls closed and prevents possible backflow from reaching the pump.

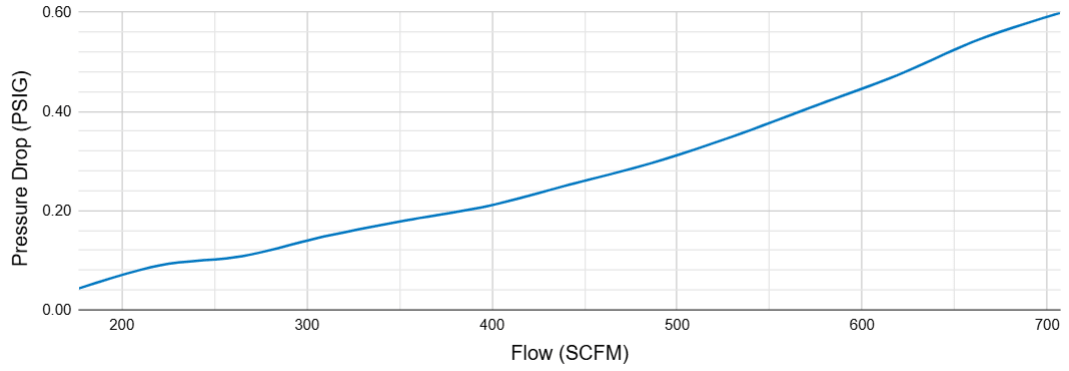

Pressure Drop vs Flow
The chart below shows the pressure drop (PSIG) at specified flow levels (SCFM) based on our actual test results of the CVS4.0 swing check valve.
