Product Line Details

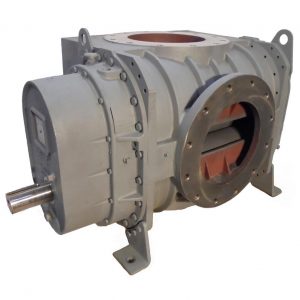

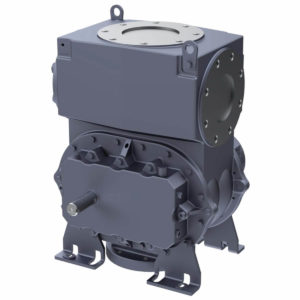

ROOTSâ„¢ DVJ WHISPAIRâ„¢ dry vacuum exhausters have an exclusive discharge jet plenum design which allows cool, atmospheric air to flow into the cylinder. This unique design permits continuous operation at vacuum levels to blank-off with a single stage unit.
Standard dry vacuum exhausters are limited to approximately 16″ Hg vacuum because operation at higher vacuum levels can cause extreme discharge temperatures resulting in casing and impeller distortion and possible failure. The DVJ vacuum exhauster’s integral cooling design eliminates the problems caused by high discharge temperatures at vacuum levels beyond 16″ Hg.
The basic model is designed using integral-shaft ductile iron impellers with an involute profile. The casing and headplates are grey iron, while the drive end cover and gear cover are aluminum. Carburized and ground alloy steel spur timing gears are taper mounted on the shafts, secured with a locknut. Cylindrical roller bearings are splash lubricated at both the gear end and the drive end.
Piston rings reduce air leakage through the headplate bores and lip-type oil seals prevent lubricants from entering the air chamber. Units can be equipped with mechanical seals for gas applications.
| Frame |
Free Air Flow (CFM) |
Inlet Conn |
Disch Conn |
Jet Conn |
Nmax (RPM) |
Shaft Dia(in) |
Max ΔT (°F) |
Max Vac (Hg) |
Weight (lbs) |

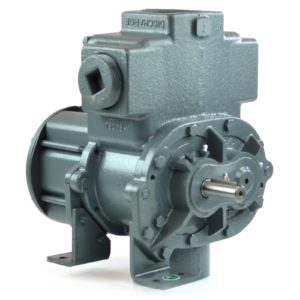

| 2504 |
170 |
2.5″ FPT |
2.5″FPT |
2″FPT |
4970 |
0.75 |
250 |
20 |
65 |

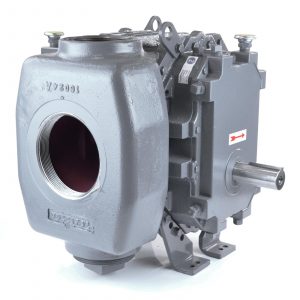

| 406 |
668 |
4″ FPT |
5″FPT |
4″FPT |
4000 |
1.5 |
275 |
27 |
365 |

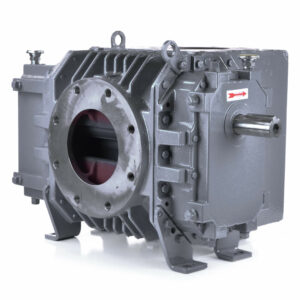

| 412 |
1332 |
6″FLG |
6″FLG |
5″FLG |
4000 |
1.5 |
300 |
27 |
575 |

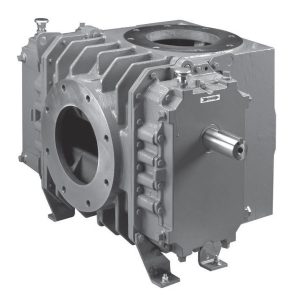

| 616 |
2367 |
8″FLG |
10″FLG |
8″FLG |
3000 |
2 |
300 |
27 |
975 |

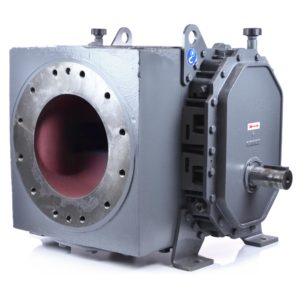

| 721 |
3658 |
12″FLG |
12″FLG |
12″FLG |
2600 |
2.375 |
260 |
27 |
1750 |
| 1016 |
4068 |
12″FLG |
12″FLG |
10″FLG |
1800 |
2.25 |
275 |
27 |
2400 |
| 1021 |
5184 |
14″FLG |
14″FLG |
12″FLG |
1800 |
2.25 |
300 |
27 |
2525 |
| 1220 |
5910 |
16″FLG |
14″FLG |
12″FLG |
1500 |
2.625 |
275 |
27 |
3650 |
| 1222 |
6645 |
16″FLG |
14″FLG |
12″FLG |
1500 |
2.625 |
275 |
24 |
4000 |
| 1428 |
9789 |
20″FLG |
18″FLG |
16″FLG |
1300 |
3 |
300 |
22.5 |
5900 |
| 1431 |
11011 |
20″FLG |
18″FLG |
16″FLG |
1300 |
3 |
300 |
22 |
6100 |
| 1639 |
16154 |
24″FLG |
24″FLG |
20″FLG |
1130 |
3.562 |
300 |
18.5 |
7800 |
| 1643 |
17806 |
24″FLG |
24″FLG |
20″FLG |
1130 |
3.562 |
300 |
16.5 |
8000 |
| 1833 |
14870 |
24″FLG |
24″FLG |
20″FLG |
1000 |
4.188 |
300 |
24 |
10500 |
| 1838 |
16870 |
24″FLG |
24″FLG |
20″FLG |
1000 |
4.188 |
300 |
22.5 |
10800 |
