Designed for a pneumatic conveying application, this pressure package features a large rotary blower that was repurposed and converted from gas service to air service for this new application.
Pressure package components

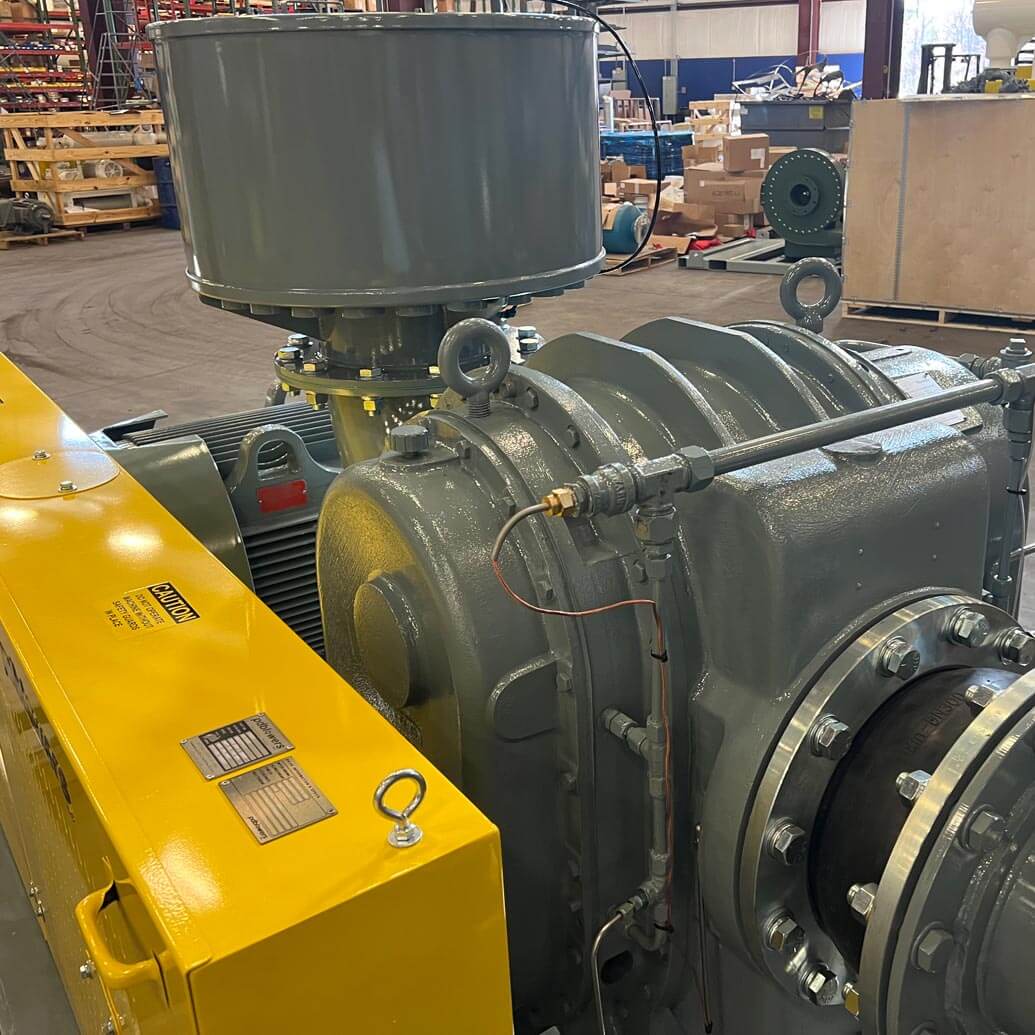

- Pressure-lubricated Roots 1216 RAS-J Blower – provided by customer and converted from 1216 RGS-J model
- Non-elevated baseplate suitable for mounting all components (Blower, Motor, Inlet Elbow, Inlet Filter Silencer, Discharge Silencer)
- 200 HP Motor, TEFC, Severe Duty, 1800 RPM
- V-Belt Drive & Safety Guard
- Motor Slide Base, Heavy Duty, Double Adjusting with pusher bolts for alignment
- Inlet Filter Silencer, Solberg FS-384P-1200F, 12″ Flange – 3300 CFM rated capacity
- Inlet Filter visual indicating gauge
- Inlet Elbow with oversized Blower flange 14″x12″
- Discharge Expansion Joint, 12″, EPDM
- Discharge Silencer, Chamber-Absorptive Type, SDY-10 with 12″ Oversized Flange for blower connection
- Discharge Pressure Gauge, 0-15 PSIG
