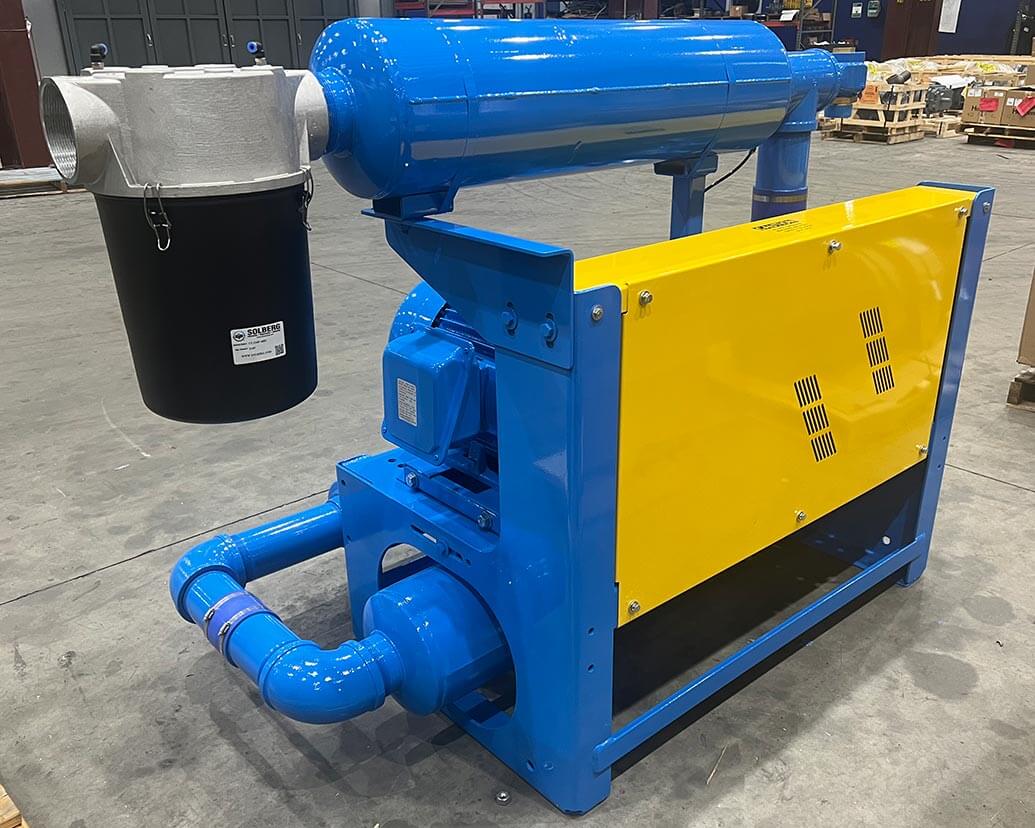

Positive displacement vacuum pumps are a staple in plastic resin conveying systems. These vacuum packages in our V5 configuration are designed to move LLDPE and FRPE polyethylene pellets through a conveying system. They feature inline filter silencers as well as a secondary discharge silencer for extra noise attenuation.
- Roots 59 URAI Blower
- Electric Motor: 25 HP, 1800 RPM, TEFC, 230-460/3/60
- Elevated Baseplate for Blower, Motor, and Accessories
- 25 HP V-Belt Drive & Guard w/ Removable Front Cover
- Inlet Inline Filter, 4″ w/ Paper Element
- Inlet Silencer, 4″
- Inlet Flexible Connector, 4″
- Discharge Flexible Connector, 4″
- Discharge Silencer, 4″
- Vacuum Relief Valve, Kunkle 215V-2″, Set at 14″ HGG
- Motor Slide Base w/ Twin Adjusting Screws, 284T
- Vacuum Gauge & Filter Delta P Gauge
- Inlet Adapter: 5″ OD Tube Connection
- Discharge Absorptive Silencer, 4″ with Piping & Brackets
