Pressure Package for Zinc Recycling Facility

This 100HP pressure package featuring a 616 RAM blower is going to be installed at a state-of-the-art facility that recovers valuable zinc oxides from the industrial waste stream. More than a million tons of steel dust are generated by US steel mills using the electric arc furnace method to melt scrap steel. At this facility, the hazardous dust is recycled to reclaim zinc oxide and iron concentrate.

  • Roots 616 RAM Blower
  • 100HP TEFC Motor,1800 RPM, 230/460V, 3PH, 60HZ, 405T1
  • 405T Motor Slide BASE
  • SDY-8 Flanged Universal Silencer
  • SDY-6 Flanged Universal Silencer
  • Pressure Gauge, 0-15 psi
  • Intake Filter, F64-8 Stoddard
  • 8×6 Expansion Joint, EPDM
  • 6″ Swing Check Valve, Aluminum
  • 3″ Weighted Relief Valve, Set at 12 psig
  • Versabase mounting system

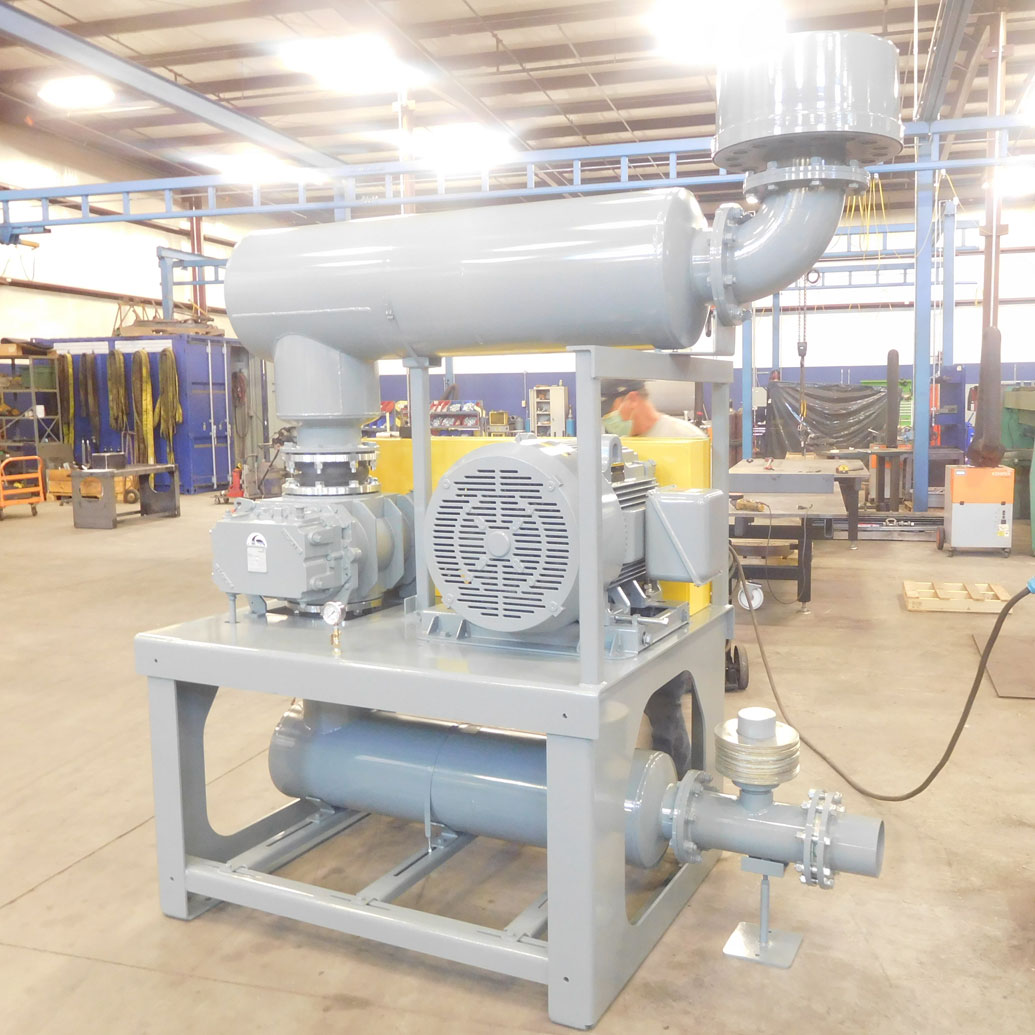

616 RAM pressure package
