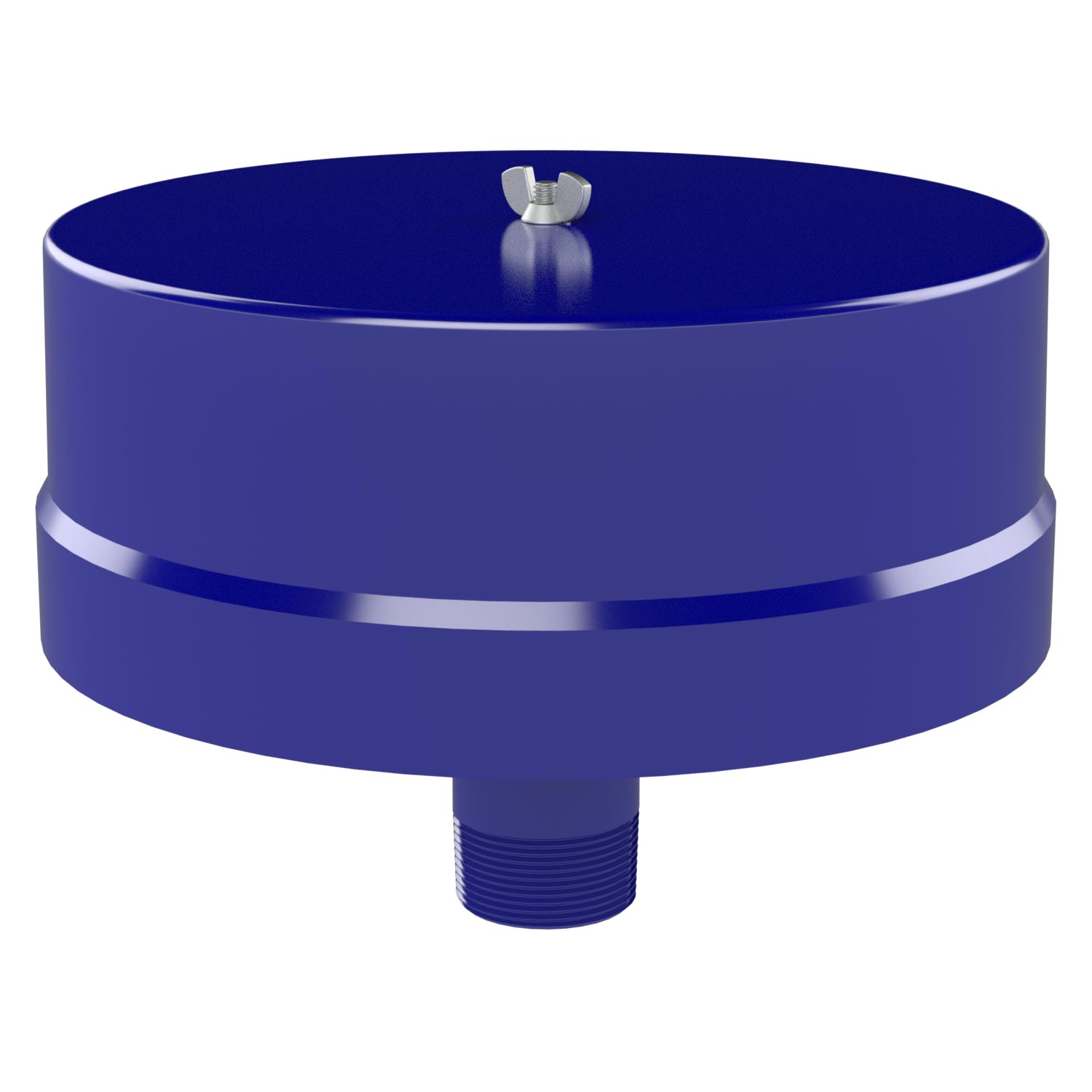

Stoddard Model Designation: F64-1 1/2
Filter/Silencer, 1.5″ MPT Connection
Dimensions: 10″ OD x 7″ Height
Rated Capacity: 80 CFM
Element Type(s): Paper, Felt, or Wire
Weight: 11 lbs

The F64 Series Filter Silencer is a compact design for use on blowers, engines and compressors.

This filter silencer can utilize either felt, paper, or wire filter elements rated at up to 99%+ removal efficiency at 1 micron

Filter element part numbers:
F8-108 Paper element
F8-151 Felt element
F8-129 Wire mesh element

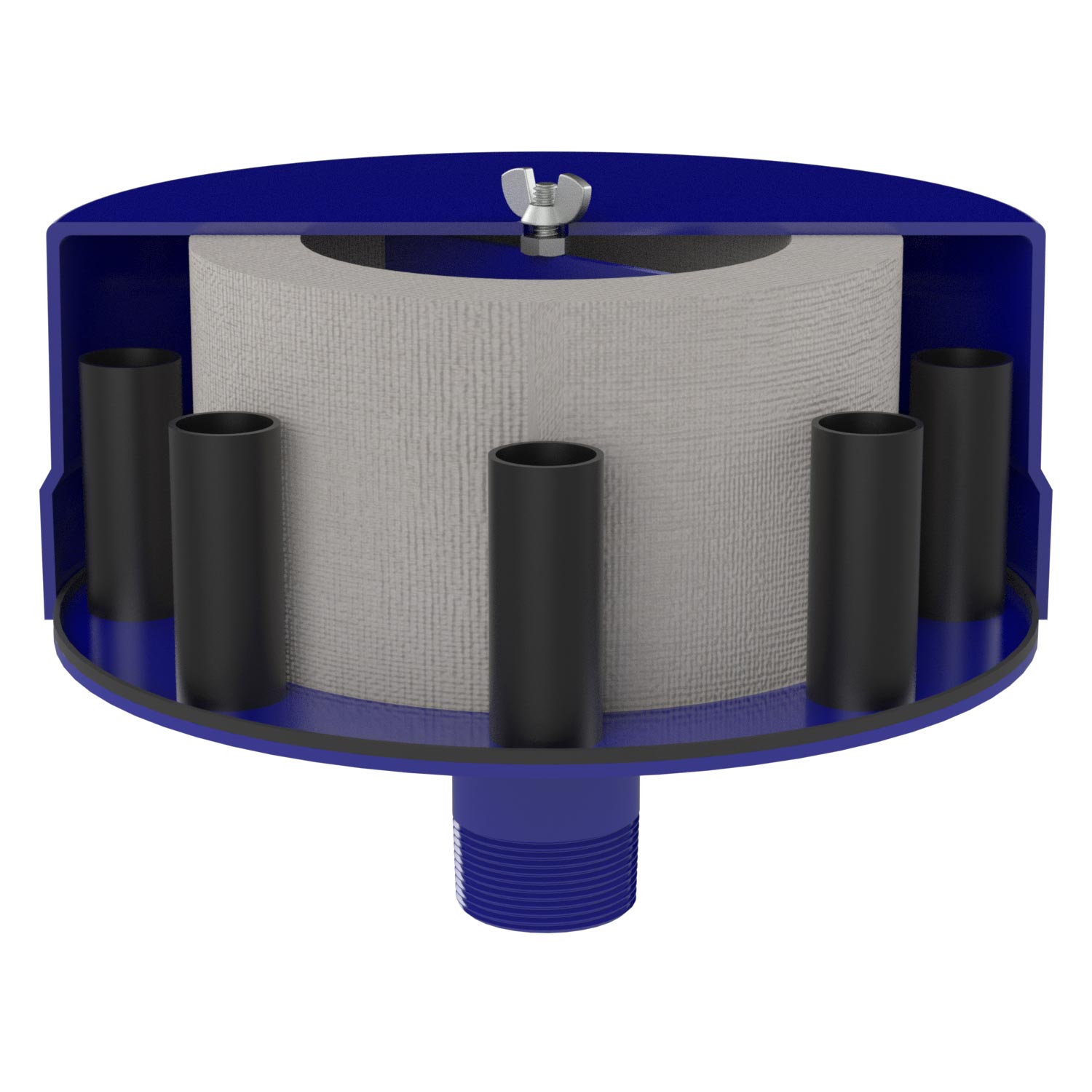

The weatherhood is removable for access to the air filter element.

Standard finish is blue.

Filter Silencer features are as follows:
Filter change out differential: 10 to 15 in. H2O above initial delta P
Typical noise attenuation of 16 to 20 dB
