Important Notes:
2023: The TRI-RAM models are no longer available in bottom hand drive configurations. If you require a bottom drive please contact us to discuss.
2021: This unit was redesigned in 2021. The previous design had rectangular connections that required flange adapters. The new version has integral DIN flanges built in.
Click here for information and photos of the previous obsolete design.Flow Range: to 2688 CFM
Max Δ Pressure: 12 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 3560
Minimum RPM: 640
Max ΔT: 230˚F
Inlet Connection: 250mm
Discharge Connection: 200mm
Shaft Dia.: 50mm
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Weight: 805 lbs
Includes detachable rugged steel mounting feet.
The Tri-RAM 621 is a replacement unit for the discontinued RAMX 500

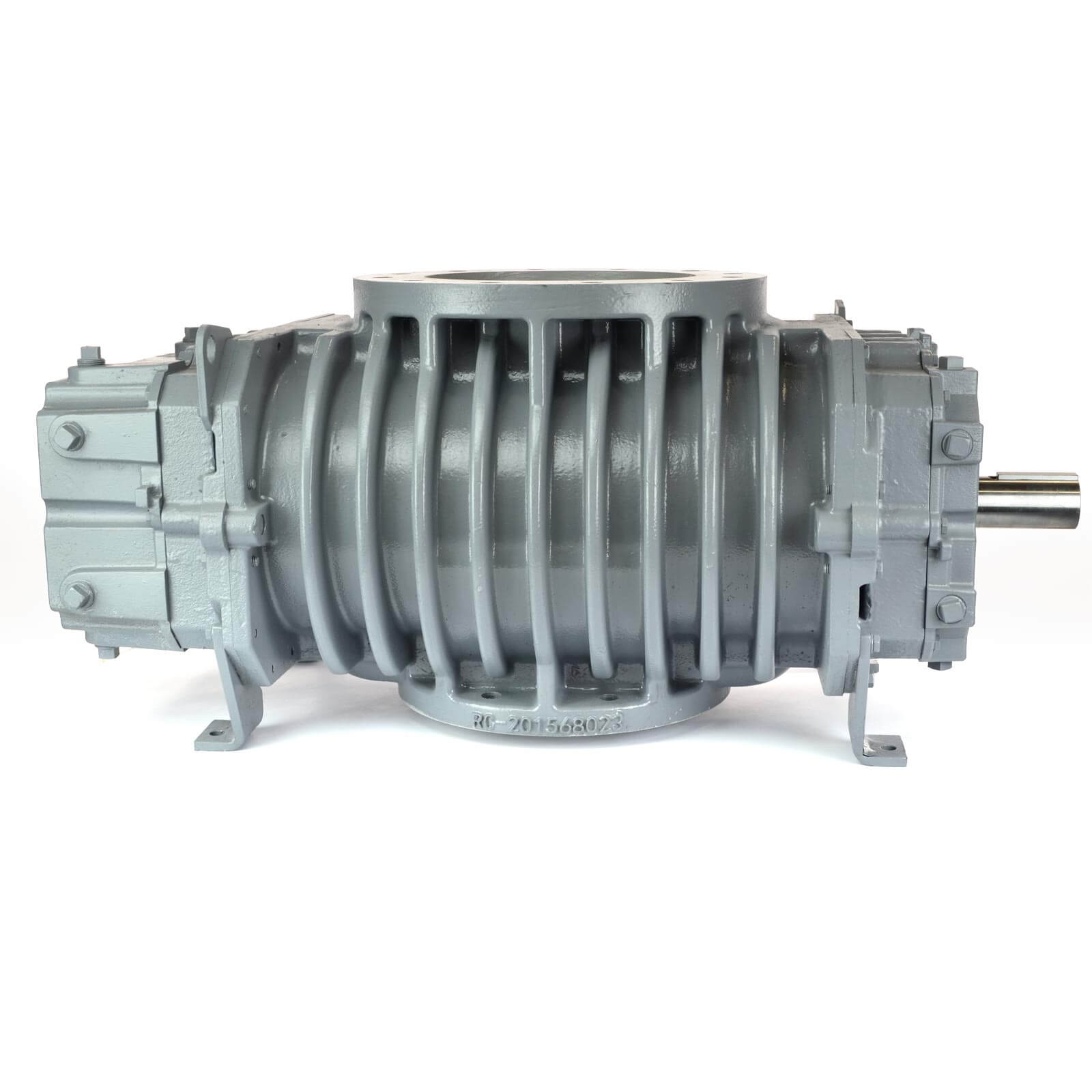

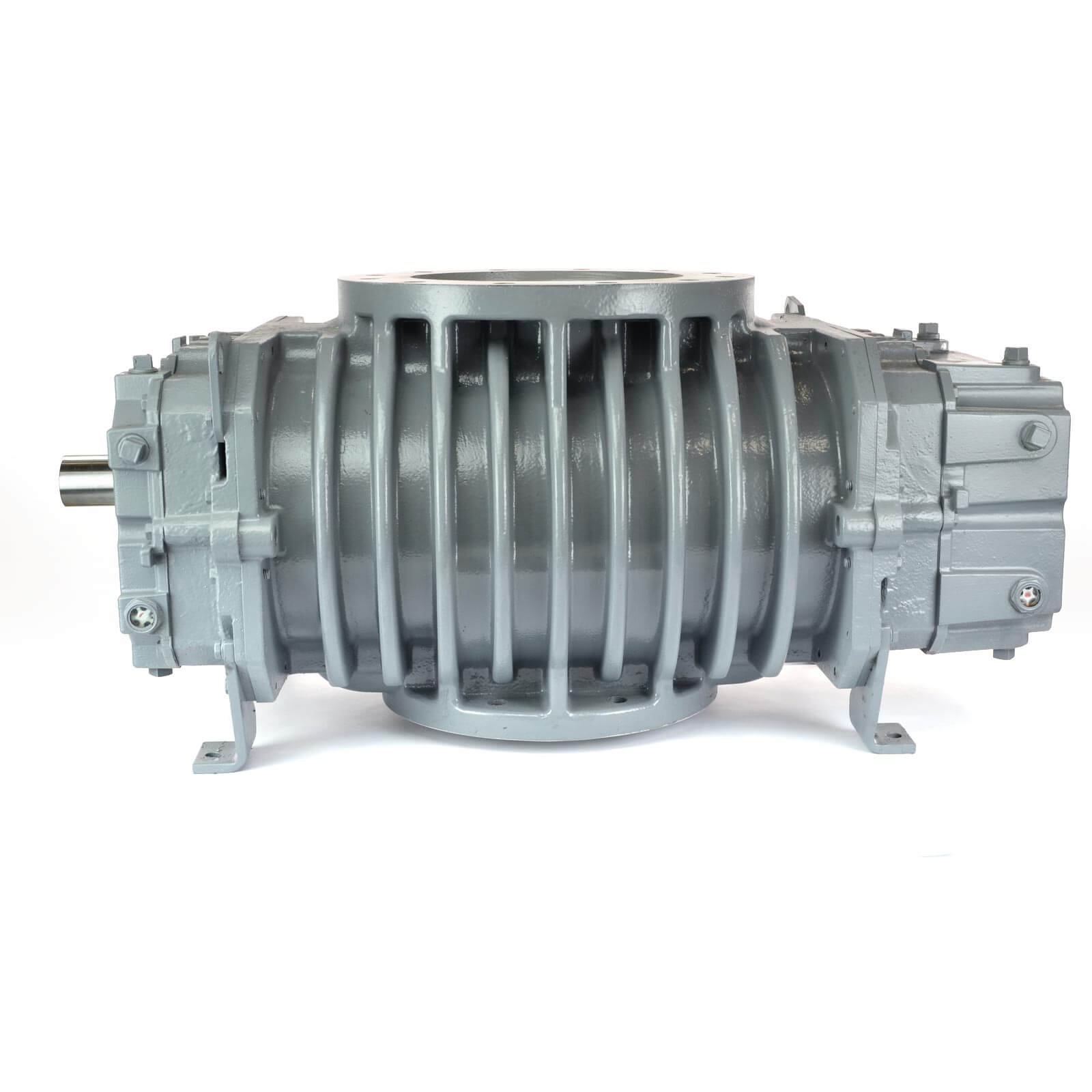

ROOTS Tri-RAM Model 621
$24,647.00 – $26,147.00
The Tri-RAM 621 is a replacement unit for the discontinued RAMX 500. Please note this is not a drop-in replacement and modifications to your system may be required.
| Shipping Weight: | 900 lbs |
|---|---|
| Shipping Dimensions: | 65 × 45 × 35 in |
| Max Pressure: | 12 psi |
| Max Speed: | 3560 RPM |
| Manufacturer: | Roots |
| Max Flow: | 2688 CFM |
| Max Vacuum: | 16" Hg |
